Product Overview

Philips 36061-0 - MHC100/C/U/MP/4K/ALTO – 100W | 4000K Cool White | CRI 92 | ANSI M140/O Or M90/O | Universal | E26 Medium Screw

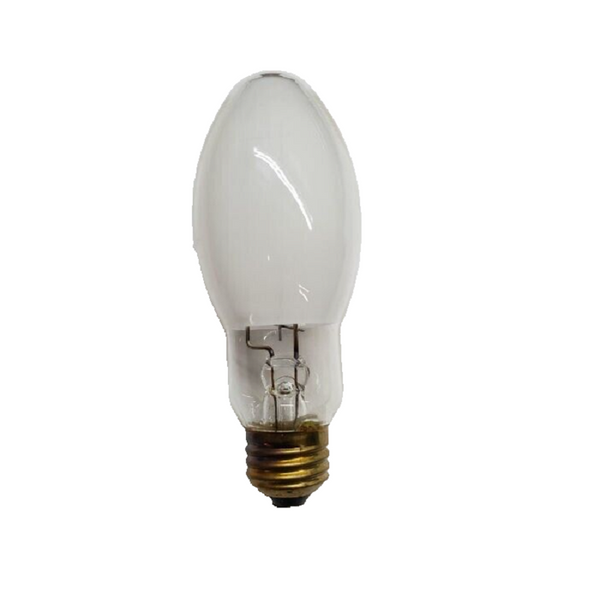

The Philips 36061-0 - MHC100/C/U/MP/4K/ALTO is a 100W 4000K Cool White MasterColor Protected Ceramic Metal Halide (CMH) lamp, CRI 92, ANSI M140/O Or M90/O, E26 Medium Screw, 7,500 initial lumens, 20,000 hours rated life, Universal burn position. Enclosed or Open Fixtures. The protected arc (MP/ED17P) design qualifies as O-type — suitable for open or enclosed fixtures. UPC: 46677360610. MPN: 360610. Philips order code: 360610 MHC100/C/U/MP/4K/ALTO.

Wattage

100W

CMH/MH

Color Temp

4000K

CRI 92

ANSI Code

M140/O Or M9

Ballast Code

Rated Life

20,000

Hours

Base

E26

Medium

Quick Specs

Brand: Philips
Series: Philips MasterColor Protected
Philips Order Code: 360610 MHC100/C/U/MP/4K/ALTO
Manufacturer Part Number: 360610
UPC: 46677360610
ANSI Code: M140/O Or M90/O
Lamp Type: MasterColor Protected Ceramic Metal Halide (CMH)
Wattage: 100W
Color Temperature: 4000K Cool White
CRI: 92
Initial Lumens: 7,500 lm
Rated Average Life: 20,000 hours
Base Type: E26 Medium Screw
Overall Length / Diameter (MOL): 5.43in x DIA 2.125in
Burn / Operating Position: Universal
Fixture Compatibility: Enclosed or Open Fixtures
Start Type: Pulse-Start — requires pulse-start ballast and 4kV socket
Mercury Content: Contains mercury — dispose per local regulations.

Product Overview

The Philips 36061-0 - MHC100/C/U/MP/4K/ALTO is a 100W 4000K Cool White Philips MasterColor ceramic metal halide lamp. CMH ceramic arc tube technology delivers CRI 92 color rendering with superior color stability over lamp life for retail display, commercial, and architectural lighting requiring open or enclosed fixture compatibility. The protected arc (MP/ED17P) design qualifies as O-type — suitable for open or enclosed fixtures. Rated life: 20,000 hours.

Requires a compatible CMH ballast with thermal protection. Contains mercury — dispose per local regulations.

Applications

Commercial and high-CRI lighting – Retail display, commercial, and architectural lighting requiring open or enclosed fixture compatibility.
Retrofit and maintenance replacement – Verify ANSI code, wattage, and base type before ordering. Requires thermally protected CDM control gear.

Safety and Installation

Thermally protected ballast required. The protected arc (MP/ED17P) design qualifies as O-type — suitable for open or enclosed fixtures.
Fixture: Enclosed or Open Fixtures.
Burn position: Universal.
Allow warm-up time: 2–5 minutes for full output.
Hot restrike: Allow 5–12 minutes after switching off before restarting.
UV radiation: Use only in fixtures with UV-protective shielding.
Mercury disposal: Contains mercury — dispose per local lamp recycling regulations.
