Product Overview

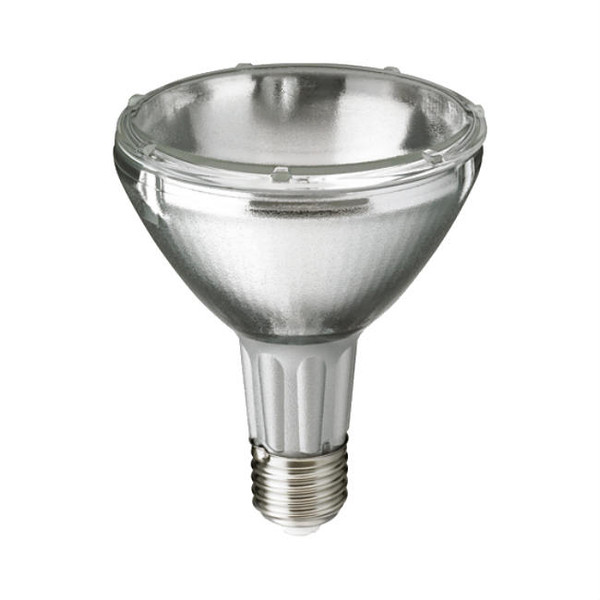

Philips 22329-7 - CDM35/PAR30L/M/SP – 35W | 3000K Warm White | CRI 81 | 10° | ANSI C130/O | E26 Medium Screw
The Philips 22329-7 - CDM35/PAR30L/M/SP is a 35W 3000K Warm White CDM-R Ceramic Metal Halide — PAR Reflector lamp with 10° beam angle, CRI 81, 2,000 initial lumens, ANSI C130/O, E26 Medium Screw, 9,000 hours rated life. Enclosed or Outdoor Luminaires. Requires a compatible CDM/CMH ballast. Operates only on thermally protected control gear. Philips order code: 22329-7.
Wattage 35W Philips Master | Color Temp 3000K CRI 81 | Beam Angle 10° Spread | Rated Life 9,000 Hours | Base E26 Medium |
Quick Specs
- Brand: Philips
- Series: Philips MasterColor CDM-R Elite
- Philips Order Code: 22329-7
- ANSI Code: C130/O
- Lamp Type: CDM-R Ceramic Metal Halide — PAR Reflector
- Wattage: 35W
- Color Temperature: 3000K Warm White
- CRI: 81
- Initial Lumens: 2,000 lm
- Rated Average Life: 9,000 hours
- Base Type: E26 Medium Screw
- Overall Length / Diameter (MOL): 3.62in x DIA 2.55in
- Beam Angle: 10°
- Fixture Compatibility: Enclosed or Outdoor Luminaires
- Start Type: Requires thermally protected CMH/CDM ballast.
- Mercury Content: Contains mercury — dispose per local regulations.
Product Overview
The Philips 22329-7 - CDM35/PAR30L/M/SP is a 35W 3000K Warm White CDM-R Ceramic Metal Halide — PAR Reflector for retail display, architectural accent, and hospitality lighting. CRI 81 — Rated life: 9,000 hours. Enclosed or Outdoor Luminaires.
Requires a compatible CDM/CMH ballast. Operates only on thermally protected control gear. Contains mercury — dispose per local regulations.
Applications
- Directional display and accent lighting – Retail display, architectural accent, and hospitality lighting.
- Retrofit and maintenance replacement – Verify ANSI code, wattage, and base type before ordering. Requires thermally protected CDM control gear.
Safety and Installation
- Thermally protected ballast required. Requires a compatible CDM/CMH ballast. Operates only on thermally protected control gear.
- Fixture: Enclosed or Outdoor Luminaires.
- Allow warm-up time: 2–4 minutes for full output.
- Hot restrike: Allow 5–10 minutes after switching off before restarting.
- UV radiation: Use only in fixtures with UV-protective shielding.
- Mercury disposal: Contains mercury — dispose per local lamp recycling regulations.
Ordering Information
- Brand: Philips
- Series: Philips MasterColor CDM-R Elite
- Philips Order Code: 22329-7
- ANSI Code: C130/O
- UPC: —
- Wattage: 35W
- Base: E26 Medium Screw
- Case quantities and bulk pricing: Contact ADL Supply for volume orders.
Compliance
- Contains mercury — dispose per local lamp recycling regulations.
- Verify RoHS and Prop 65 compliance with Philips specification sheet.
ADL Supply recommends confirming all specifications with the Philips product data sheet prior to installation.
