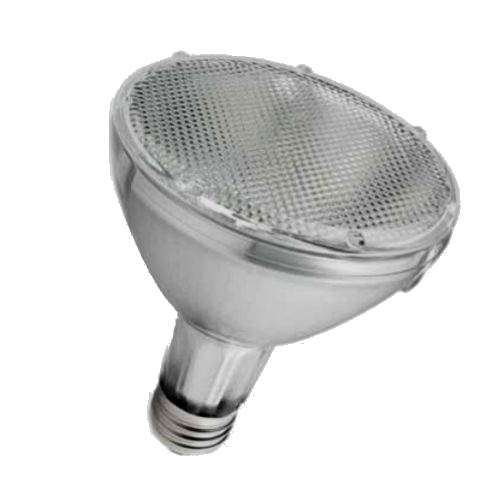

PHILIPS 22330-5 MASTERCOLOR CDM-PAR30L | 35W 3000K | 30° Flood Reflector

The Philips 22330-5 (CDM35/PAR30L/FL/30) is a high-performance ceramic metal halide lamp designed to deliver exceptional light quality and energy efficiency in commercial environments. This 35-watt PAR30 long-neck lamp features FadeBlock™ technology, which utilizes an integrated UV-blocking medium to significantly reduce the fading of fabrics, paintings, and sensitive retail merchandise. With a 3000K Warm White color temperature and superior color stability within ±200K, it provides a consistent, inviting atmosphere for the duration of its 9,000-hour life. The 30° Flood beam spread makes it an ideal choice for general ambient lighting and broad accentuation in retail displays, showrooms, and galleries.

Product Overview

The Philips MasterColor CDM PAR30L family is renowned for its excellent "sparkle" and crisp light output. This lamp combines the high efficacy of ceramic metal halide technology with the precise control of a hard-glass reflector, producing 2,000 initial lumens with a center beam candlepower of 44,000 cd. Its E26 Medium Base ensures easy installation into standard track and recessed fixtures. The integrated FadeBlock™ feature is a mechanical filtration advantage, making it the preferred choice for museums and high-end fashion boutiques where maintaining the integrity of displayed items is critical. This lamp is Open Rated (ANSI M130/O), meaning it contains a protective shroud around the arc tube for safe operation in both open and enclosed luminaires.

• FadeBlock® Technology: Integrated filter reduces UV output by up to 90% compared to standard HID lamps.
• High Efficiency: Delivers 52 lumens per watt, providing a powerful lighting solution with low energy consumption.
• Superior Color Stability: Advanced arc tube design ensures minimal color shift over the life of the lamp.
• Long Life: 9,000-hour rated life reduces relamping labor and maintenance costs.

Technical Specifications

• Brand: Philips MasterColor
• Order Code: 22330-5 (223305)
• Model Number: CDM35/PAR30L/FL/30
• UPC Code: 046677223304
• ANSI Code: M130/O (or C130/O)
• Wattage: 35W
• Lamp Voltage: 88V
• Base Type: E26 (Medium Screw-In)
• Bulb Shape: PAR30L (Long Neck)
• Beam Angle: 30° Flood
• Initial Lumens: 2,000 lm
• Color Temperature: 3000K (830)
• CRI: 81
• Dimensions: 4.75" MOL x 3.75" Diameter

Safety & Installation Guide

• Ballast Requirement: Must be operated only on thermally protected ballasts specifically rated for ANSI M130 lamps.
• Fixture Rating: Suitable for use in Open or Enclosed fixtures. It is also rated for outdoor luminaires if protected from direct water contact.
• UV Hazard: Do not operate if the outer glass is broken or punctured, as serious UV radiation exposure can occur.
• Installation: Ensure the power is disconnected before replacing the lamp. Use only in sockets rated for high-intensity discharge (HID) lamps.

Primary Applications

• Retail Showrooms: Ideal for general floodlighting and highlighting product displays.
• Museums & Galleries: Protects artifacts with FadeBlock™ while providing warm, natural light.
• Hospitality: Excellent for lobby downlighting and decorative accenting in restaurants.
• Commercial Offices: Professional-grade wall washing and architectural highlighting.
