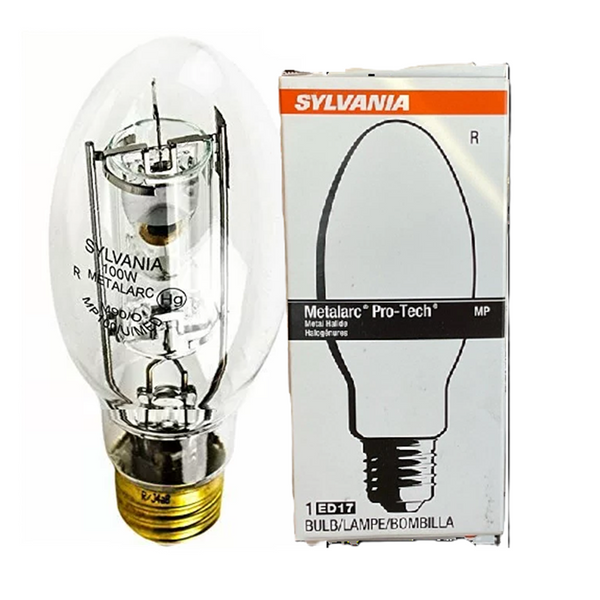

Sylvania METALARC PRO-TECH 64417 (MP100/U/MED) Lamp — 100W | 3000K Warm White | 8,500 Lumens | Protected E26 Medium Screw Base

The Sylvania METALARC® PRO-TECH® 64417 (MP100/U/MED) Lamp is a commercial-grade, high-performance Pulse-Start Metal Halide (PSMH) bulb engineered for open or enclosed downlights, retail public showrooms, indoor gymnasiums, and outdoor commercial security area floodlights. Delivering a bright 8,500 initial lumens of crisp 3000K warm white light across a 75 CRI color tracking profile, this specialized 100-watt bulb utilizes an advanced quartz arc tube enclosed by a protective glass shroud wrapper. This integrated shield earns an open-fixture safety classification of ANSI M90/O, allowing users to safely mount the capsule directly into standard **E26 Medium Screw sockets** across universal burn orientations without requiring a tempered glass lens cover.

ADL Supply Expert Application & Replacement Guide

The Sylvania Metalarc® Pro-Tech® MP100/U/MED linear HID bulb is an industrial property maintenance baseline specified heavily across commercial recessed downlights, outdoor perimeter wall packs, canopy fixtures, and small-can high-bay footprints. By incorporating a structural internal glass containment shroud surrounding the inner quartz arc core, this Pro-Tech® module isolates extreme operational pressures. This specific safety layout shields local fixtures from thermal stress in the rare event of an end-of-life cycle burst, making it completely compliant with national electrical codes for unshielded open-luminaires.

Critical E26 Medium Base Identification and Pulse-Start Ballast Mandates: Procurement teams and electrical crews executing site retrofits must verify mechanical layout sizing boundaries closely prior to checkout: this 100W lamp features a standard E26 Medium Screw Base—not a large mogul EX39 base. Attempting to fit this medium screw base component into a mogul-sized canopy track will result in a severe layout socket spatial conflict.

Additionally, this high-intensity tube relies on modern **Pulse-Start HID engineering matching ANSI code M90**. It requires an ignitor circuit built into the host ballast line to inject a high-voltage starting pulse across the electrodes. It is completely incompatible with legacy M98 probe-start magnetic ballasts. Ensure the lamp body is fully torqued flush into its 4kV pulse-rated porcelain socket to resist micro-arcing fields from high industrial building vibrations.

Detailed Product Specifications

• Brand Name: Sylvania METALARC® (OSRAM Sylvania Group / Ledvance HID Asset Line)
• Product Series Line: METALARC® PRO-TECH® Pulse-Start Covered Arc Series
• Sylvania Factory Product Order Code SKU: 64417
• Manufacturer Description Model Nomenclature: MP100/U/MED
• UPC Barcode Number (GTIN-12): 046135644177
• Official Trade Industry ANSI Identifier: M90/O (Open or Enclosed Fixture Protected Class)
• Core Technology Class: High Intensity Discharge (HID) — Pulse-Start Quartz Metal Halide (PSMH)
• Primary Control Requirement: 100W M90 Pulse-Start HID Ballast (Requires 4kV-pulse rated lampholders)
• Operational Power Draw: 100.0 Watts
• Nominal Arc Operating Voltage: Ballast Managed (Nominal 100V AC continuous voltage across gas core)
• Continuous Operating Amperage Draw: 1.15 Amperes running current profile
• Initial Luminous Brightness (Vertical Burn): 8,500 Lumens (Post standard 100-hour seasoning burn)
• Initial Luminous Brightness (Horizontal Burn): 7,700 Lumens
• Mean Luminous Lifecycle Output: 5,500 Mean Lumens (Measured past the 40% operational life mark)
• Luminous Efficacy Ratio: 85.0 Lumens per Watt (LPW)
• Color Temperature Configuration: 3000K Warm White (Premium Halide Rare-Earth Salt Chemistry Mix)
• Color Rendering Index (CRI): 75 Ra (Standard Commercial Display Base)
• Base Type Configuration: E26 Medium Screw Base (Protected alignment pin depth)
• Outer Glass Bulb Profile: ED17 Casing Shape
• Maximum Overall Length (MOL): 5.43" Inches (138mm actual structural frame width)
• Bulb Diameter Thickness: 2.125" Inches (54mm outer glass crown diameter)
• Light Center Length (LCL): 3.39" Inches (86mm center tracking alignment)
• Rated Average Service Lifespan: 15,000 Hours (Driven by high-frequency electronic or magnetic pulse controls)
• Chassis Burn Position Limit: Universal — Operates reliably at any horizontal or vertical mounting angle

Operation, Safety & Mounting Compliance

Pulse-Start Operational Efficiency Tuning

Compared to legacy probe-start systems that use an auxiliary starter electrode to slowly force a breakdown path across cold gases, this pulse-start module utilizes a high-voltage starting ignitor stroke. This method injects high open-circuit striking frequencies to cleanly ionize the inner chamber gas columns instantly. This advanced solid-state ignition path prevents visual blackening at the filament borders, resulting in a tighter lumen maintenance tracking curve and faster hot-restrike stabilization periods during local grid voltage drops.

Commercial Equipment Industry Cross-References

This premium 100W M90 open-rated medium E26 bulb serves as a direct drop-in replacement or electrical equivalent for the following lines:

• Philips Advance Match: MasterColor CDM-ED17 Protected 100W/830 E26 / Order Code 223503
• GE Lighting Alternative: Multi-Vapor MX100/U/MED / Protected M90 Open-Fixture Line
• Venture Lighting Match: MP 100W/U/UVS/PS/730 / Pulse Start Protected Medium Series
