Product Overview

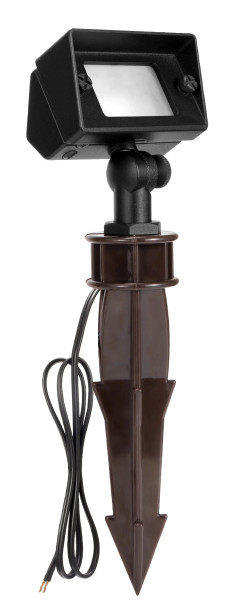

Sollos 995413S FRF057-TZ-JC35/4WW/LED – 5.7″ Mini Flood Light | Textured Bronze | 12V | Includes 4.5W 3000K LED Lamp
The Sollos 995413S (FRF057-TZ-JC35/4WW/LED) is a 12V low-voltage 5.7″ mini flood landscape light in Textured Bronze finish, supplied as a complete kit with a Sollos JC35/4WW/LED LED lamp (SKU 80830) included. The lamp provides 450 lumens at 3000K (Omnidirectional pattern), replacing a 35W equivalent. Includes 8″ ground stake, 36″ 18-2 lead, and DryConn™ waterproof connectors. Please verify transformer capacity and voltage drop before ordering.
Voltage 12V AC/DC Low-voltage | Lamp 4.5W LED 3000K | Lumens 450 lm Included lamp | Finish Textured Bronze Flood housing | Listed ETL / CSA UL 1838 & C22.2 |
Technical Specifications
| Brand | Sollos (a Hayward brand) |
| Catalog Number | 995413S |
| Model Number / MPN | FRF057-TZ-JC35/4WW/LED |
| Fixture Type | 5.7″ Mini Flood Light |
| Finish | Textured Bronze |
| Housing Material | Die-cast aluminum |
| Voltage | 12V AC/DC |
| Lamp Included | Yes – Sollos JC35/4WW/LED (SKU 80830) |
| Lamp Base | GY6.35 bi-pin |
| Lamp Wattage | 4.5W (replaces 35W equivalent) |
| Lamp Color Temperature | 3000K |
| Lamp Lumens | 450 lm |
| Lamp Beam | Omnidirectional |
| Lamp Rated Life | 30,000 hrs |
| Mounting | 8″ corrosion-resistant ground stake (included) |
| Lead Wire | 36″ 18-2 pre-wired |
| Connectors | Two (2) King® DryConn™ waterproof connectors |
| Certifications | ETL Listed to UL 1838; CSA C22.2 No. 250.7 |
| Carton Quantity | 1 |
Product Overview
The Sollos 995413S is a complete 12V low-voltage mini flood landscape light kit in Textured Bronze finish, supplied with a matched Sollos JC35/4WW/LED LED lamp included. The compact housing is designed for flexible ground-mounted accent lighting of landscape features, shrubs, walls, and hardscape elements.
The included lamp provides 450 lumens at 3000K with a Omnidirectional distribution, replacing a 35W incandescent equivalent. The die-cast aluminum construction, UV-resistant finish, and stainless steel hardware are built for long-term outdoor durability on 12V landscape systems.
The 8″ ground stake, 36″ 18-2 lead, and DryConn™ waterproof connectors included in the kit allow direct integration into any standard 12V landscape lighting run. The fixture-only version is also available for installations where a different lamp output is required.
Compatible Applications
- Landscape accent, uplighting, and grazing of shrubs, trees, and architectural features
- Wall washing and hardscape illumination
- Residential and commercial 12V low-voltage outdoor lighting systems
- Commercial kitchens and food-service environments (consult Sollos for NSF guidance)
Before Ordering – Verify
- Confirm transformer capacity for total load of all fixtures on the run
- The included lamp is rated for 10–15V input; account for voltage drop on long runs
- Fixture-only version (without lamp) is also available in the same model family
Safety and Installation Guidelines
- Disconnect the low-voltage transformer from line power before wiring or lamp changes
- Ensure all DryConn™ connectors are fully sealed
- Install the ground stake firmly; the flood head should be aimed before finalizing the stake position
- Allow the fixture to cool before handling if recently in operation
Compliance
- ETL Listed to UL 1838
- CSA C22.2 No. 250.7 Listed
- Suitable for outdoor landscape use
Ordering Information
- Catalog Number: 995413S
- Model Number: FRF057-TZ-JC35/4WW/LED
- Finish: Textured Bronze
- Lamp Included: Yes (JC35/4WW/LED, SKU 80830)
- Carton Quantity: 1
For wholesale pricing, bulk availability, or help confirming the correct replacement lamp, contact ADL Supply at 1-800-235-3489.
