Sollos FRF057-TZ-JC3/830/OMNI/IP65/LED 995414S Flood Textured Bronze

Sollos FRF057-TZ-JC3/830/OMNI/IP65/LED (995414S) Flood – Textured Bronze

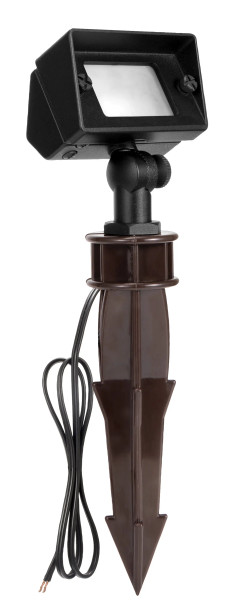

The Sollos FRF057-TZ (product number 995414S) is a 12V AC low-voltage flood with a stake-mount body, finished in Textured Bronze. It uses a frosted tempered glass (includes clear lens for field install) and a G4/GY6.35 bi-pin socket rated for lamps up to 20W, and ships with 3 ft. 18-2 lead wire. This is a kitted assembly supplied with a Sollos ProLED JC3/830/OMNI/IP65/LED G4 lamp installed (3000K, 20W-equivalent). Confirm finish, socket type, and transformer capacity before ordering.

Technical Specifications

Product Overview

The Sollos Flood is finished in Textured Bronze UV- and corrosion-resistant powder coat over cast brass or architectural aluminum. It uses frosted tempered glass (includes clear lens for field install) and a G4/GY6.35 bi-pin socket rated for lamps up to 20W.

This order code is supplied as a kitted assembly with a Sollos ProLED JC3/830/OMNI/IP65/LED lamp installed (2W, 20W-equivalent, 3000K, 300 lumens). The fixture-only version of the same configuration is sold under a separate order code. The fixture operates on a 12V AC landscape transformer ordered separately.

Compatible Applications

• Wide-area wash lighting for walls, facades, and gardens
• General landscape flood lighting
• Residential and commercial landscape lighting

Before Ordering – Verify

• This is a 12V AC low-voltage fixture. It will be destroyed if connected to 120V line voltage. A 12V landscape transformer is required and is not included.
• Socket is G4/GY6.35 bi-pin. Confirm any replacement lamp uses the same base – MR16 GU5.3, G4/GY6.35, MR11 GU4, and PAR36 MP-terminal lamps are not interchangeable.
• This order code includes an LED lamp. If you need the fixture without a lamp, order the fixture-only version of the same configuration instead.
• Confirm finish: this item is Textured Bronze. Antique Brass, Natural Copper, Stainless Steel, and Composite Black finishes carry a lifetime warranty; Textured Black and Textured Bronze carry a 5-year warranty.
• Total the wattage of every fixture on the run and size the transformer accordingly, allowing headroom for future additions.

Safety and Handling Guidelines

• De-energize the transformer before wiring, relamping, or servicing the fixture.
• Bury or otherwise protect the low-voltage cable run to prevent damage from mowers, edgers, and digging.
• Do not exceed the 20W maximum lamp rating. Overlamping causes excess heat, socket damage, and lens degradation.
• Keep the lens clear of mulch, soil, and dense foliage so heat can dissipate.
• This fixture contains no mercury; LED lamps are mercury-free.

Compliance

• ETL Listed to UL 1838 (Low Voltage Landscape Lighting Systems) and CSA C22.2 No. 250.7.
• Intended for use on Class 2 / low-voltage landscape lighting circuits supplied by a listed 12V landscape transformer.
• Install in accordance with the National Electrical Code and all applicable local codes; NEC Article 411 governs low-voltage lighting systems.
• Mercury-free product. RoHS-compliant construction.
• All specifications are subject to change by the manufacturer; the current Sollos published specification governs.

Ordering Information

• Order code: FRF057-TZ-JC3/830/OMNI/IP65/LED  |  Sollos product number: 995414S  |  ADL Supply SKU: SOLL995414S
• Configuration: Flood, Textured Bronze, 12V AC, G4/GY6.35 bi-pin, 20W max.
• Supplied with a Sollos ProLED JC3/830/OMNI/IP65/LED lamp (product 81996) installed, 2W, 3000K, 300 lumens.
• Mounting: 8" ground stake included.
• Warranty: 5-year limited warranty on Textured Bronze finish.

For wholesale pricing, bulk availability, or help confirming the correct replacement lamp, contact ADL Supply at 1-800-235-3489.
