Product Overview

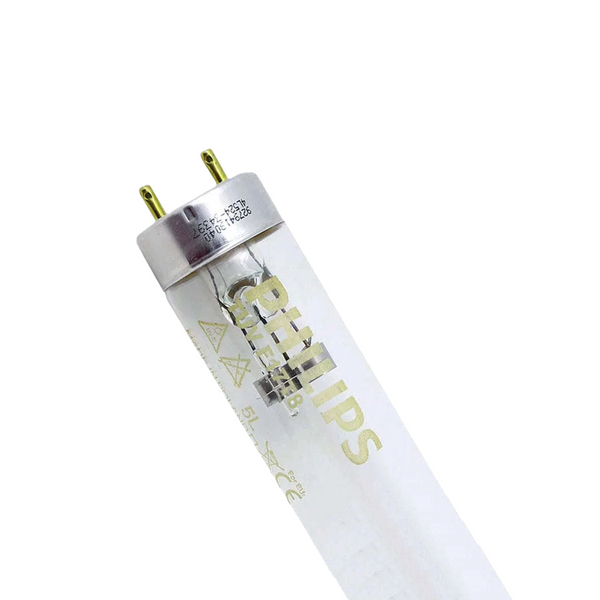

Philips TUV T8 F17 #264138 Germicidal UV-C Lamp – 17W, G13 Base | 253.7nm | Air & Water Disinfection
The Philips TUV T8 F17 is a professional-grade germicidal UV-C lamp engineered for air and water disinfection systems. Emitting peak short-wave UV-C radiation at 253.7nm, this 24-inch linear lamp utilizes a standard G13 medium bi-pin base and is designed exclusively for enclosed, shielded commercial and residential disinfection equipment.
|
Lamp Type
TUV T8 F17
Germicidal UV-C
|
UV-C Output
4.5W
253.7nm Peak
|
Electrical
16.7W / 72V
0.265A Current
|
Base / Size
G13 / T8
604mm (24 in)
|
Useful Life
9,000 hrs
7,500h (10% Fail)
|
Product Overview
The Philips TUV T8 F17 (#264138 / #26413840) is a double-ended low-pressure mercury vapor discharge lamp engineered for targeted germicidal irradiation. It delivers consistent ultraviolet output across its operational lifespan, making it suitable for HVAC in-duct units, upper-air purifiers, residential/commercial water treatment, aquaculture/pond filtration, and clinical laboratory equipment.
Philips germicidal lamps feature an internal protective coating that stabilizes UV-C output over the 9,000-hour rated lifetime. Additionally, the specialized glass envelope effectively filters out 185nm ozone-forming wavelengths, providing pure 253.7nm disinfection without unwanted ozone generation.
Key Specifications
| Brand | Philips (Signify) |
| Product Description | TUV T8 F17 1SL/25 |
| Product / Order Code | 264138 / 26413840 |
| Material Number (12NC) | 927941904020 |
| UPC / EAN | 8711500264138 |
| Lamp Type | Low-Pressure Mercury UV-C Discharge |
| Bulb Shape & Base | T8 (Tubular 28mm) | G13 Medium Bi-Pin |
| Nominal Wattage | 16.7W |
| Lamp Voltage & Current | 72V | 0.265A |
| Peak UV-C Wavelength | 253.7nm (Ozone Free) |
| UV-C Radiation Output | 4.5W |
| Rated Useful Life | 9,000 Hours (7,500 Hours to 10% failure) |
| Depreciation at Useful Life | 15% (LLMF 6000h: 12%) |
| Mercury (Hg) Content | 2.0 mg |
Dimensions
| Diameter (D Max) | 28.0 mm (1.10 in) |
| Base Face to Base Face (A Max) | 589.8 mm (23.22 in) |
| Insertion Length (B Min / Max) | 594.5 mm / 596.9 mm |
| Overall Length (C Max) | 604.0 mm (23.78 in) |
Primary Applications
- HVAC and in-duct air purification systems
- Upper-air and whole-room enclosed irradiation equipment
- Hospital cleanrooms, surgical suites, and clinical laboratories
- Aquaculture, commercial fish pond clarification, and water recycling units
- Process water purification and laboratory sanitization
Compatibility Checklist
- Lamp Technology: Verify that your system requires a germicidal UV-C discharge lamp, not a standard general-lighting T8 fluorescent tube.
- Socket Configuration: Requires standard G13 medium bi-pin lamp holders.
- Ballast & Electrical Match: Ballast must support a 16.7W lamp operating at 72V and 0.265A nominal current.
- Chamber Clearance: Confirm internal fixture dimensions accommodate a 604.0 mm maximum overall length and 28.0 mm bulb diameter.
Safety & Handling Guidelines
DANGER: Risk Group 3 UV Product. This lamp emits high-intensity ultraviolet (UV-C) radiation capable of causing immediate and severe ocular inflammation and cutaneous burns. Never operate this lamp in open fixtures or unshielded environments. Ensure power is disconnected before inspection, cleaning, or replacement.
- Handling: Wear clean lint-free gloves or handle with a clean cloth. Skin oils leave residues that degrade UV-C transmission and cause localized hotspots.
- Breakage Procedure: If damaged, ventilate the room for at least 30 minutes. Wear protective gloves to gather glass fragments in a sealed container. Do not use standard vacuum cleaners.
- Disposal: Contains 2.0 mg of mercury. Dispose of according to local, state, or federal universal hazardous waste regulations.
