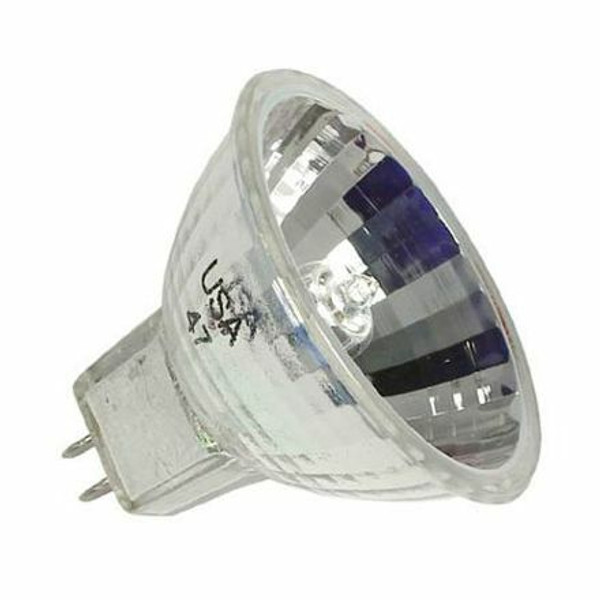

GE Quartzline ENX 360W Halogen Projection Lamp - 82V MR16 GY5.3

The GE Quartzline ENX is a 360 watt halogen projection lamp designed for professional projection and specialty optical equipment. With an 82V operating voltage, MR16 reflector design, and GY5.3 2-pin base, this lamp delivers precise optical performance for overhead projectors, theater lighting, and specialized projection systems.

This GE ENX projection lamp produces 540 initial lumens, features a CRI of 100 for excellent color accuracy, and uses a CC-8 filament for stable light output. Its universal burn position supports flexible installation in compatible equipment.

Technical Specifications

• Brand: GE Lighting
• Series: Quartzline
• Model / ANSI Code: ENX
• Order Code: 41705
• Wattage: 360W
• Voltage: 82V AC
• Lamp Type: Halogen Projection Lamp
• Bulb Shape: MR16
• Base Type: GY5.3 2-Pin
• Filament Type: CC-8
• Initial Lumens: 540 lm
• CRI: 100
• Rated Life: 75 Hours
• Burn Position: Universal
• Maximum Overall Length: 1.7 in. x 2 in. (43 mm x 51 mm)
• Working Distance: 11.64 in. (296 mm)

Key Features

• 360 watt MR16 halogen projection lamp
• ANSI ENX replacement lamp
• GY5.3 2-pin base for compatible projection systems
• Quartzline precision-engineered construction
• CRI 100 for accurate color rendering
• Universal burn position for flexible installation
• High-stability CC-8 filament design

Primary Applications

• Professional overhead projectors
• Theater lighting systems
• Specialized projection equipment
• Optical and display applications

Important Notice

This lamp requires an 82V compatible projection system and is not intended for standard household use.
