Product Overview

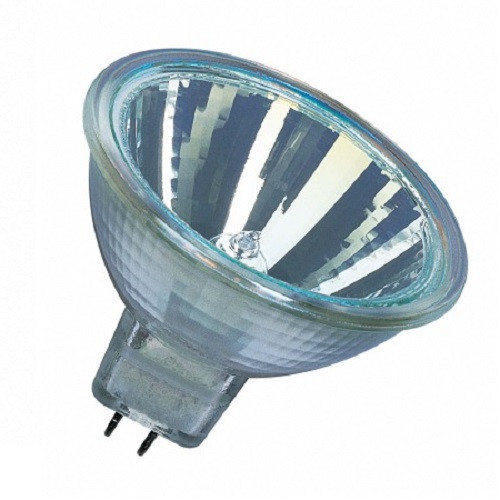

Ushio 1000338 ENX-5 JCR86V-360W – 360W | 86V | 3300K Natural White | ANSI ENX-5 | GY5.3 Oval 2-Pin

The Ushio 1000338 ENX-5 JCR86V-360W is a 360W 86V Halogen MR16 Specular Reflector — Photo-Optic lamp, ANSI ENX-5, GY5.3 Oval 2-Pin base, 3300K Natural White color temperature, 75 hours rated life. Designed for professional audio/visual projection, medical instruments, and specialty optical illumination.

Wattage

360W

Halogen

Voltage

86V

Operating

Color Temp

3300K

CCT

Lumens

—

Initial lm

Rated Life

Hours

Quick Specs

Brand: Ushio
Ushio Catalog Number: 1000338
ANSI Code: ENX-5
Lamp Type: Halogen MR16 Specular Reflector — Photo-Optic
Bulb Type: MR16 Reflector
Wattage: 360W
Operating Voltage: 86V
Color Temperature: 3300K Natural White
Rated Average Life: 75 hours
Base Type: GY5.3 Oval 2-Pin
Burn / Operating Position: Base Down to Horizontal (BD/Hor)

Product Overview

The Ushio 1000338 ENX-5 JCR86V-360W is a 360W 86V halogen reflector lamp for professional audio/visual projection, medical instruments, and specialty optical illumination. At 3300K Natural White this lamp provides precise, high-intensity output. Rated life: 75 hours.

Do not touch the lamp envelope with bare hands. Skin oils cause hot spots leading to premature failure. Use clean gloves or lint-free cloth. Allow full cool-down before handling.

Applications

Professional audio/visual projection – Professional audio/visual projection, medical instruments, and specialty optical illumination.
Retrofit and maintenance replacement – Confirm ANSI code, wattage, voltage, and base type before ordering.

Safety and Handling

Do not touch the lamp envelope with bare hands. Skin oils cause hot spots leading to premature failure. Use clean gloves or lint-free cloth.
Voltage — 86V: Verify supply matches rated voltage. Operating above rated voltage significantly shortens lamp life.
Enclosed fixture only: Use only in approved enclosed optical fixtures.
Allow 15-minute cool-down before replacement.
