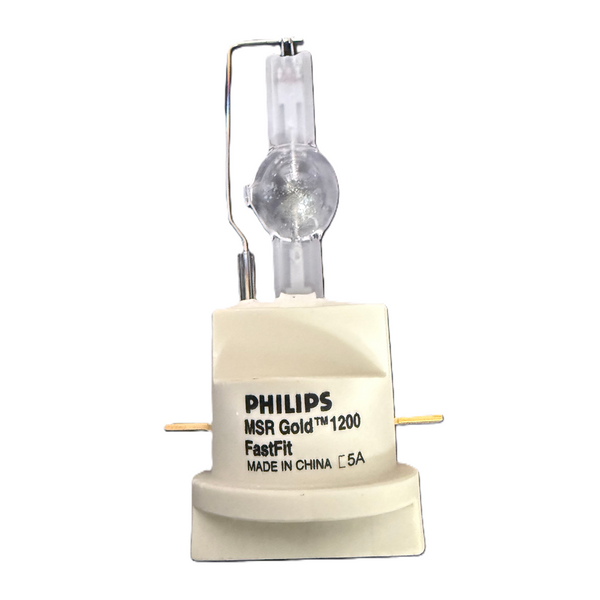

PHILIPS MSR Gold 1200W FastFit | 6000K Daylight | PGJX50 Base | Single Ended Metal Halide

Philips MSR Gold 1200 FastFit (Order Code: 24568-8) is a high-output, single-ended stage and studio lamp engineered for professional moving head fixtures. Featuring the innovative FastFit twist-lock base, this 1200W metal halide lamp allows for tool-free replacement in seconds. Its 6000K daylight color temperature and 95,000-lumen output ensure a consistent, high-intensity beam required for large-scale concerts, television studios, and touring productions.

Product Overview

The Philips MSR Gold 1200 FastFit is designed specifically for the rigorous demands of the entertainment industry. The FastFit technology enables lightning-fast lamp changes on dark stages or between sets, while the gold-plated pins provide superior protection against heat, preventing premature failure of both the lamp and the fixture's socket. Additionally, Philips' P3 technology allows the lamp to be operated in any position and at higher temperatures, extending the life of the lamp and maintaining lumen output throughout its 750-hour lifespan.

• Rapid Replacement: Twist-lock PGJX50 base allows for lamp replacement in as little as 90 seconds.
• Superior Heat Resistance: Gold-plated caps and P3 technology protect against component failure in high-heat environments.
• True Daylight Performance: 6000K color temperature provides a clean, white light that is essential for high-definition film and TV production.
• Universal Compatibility: Works seamlessly with both electronic ballasts and traditional magnetic AC gear.

Technical Specifications

• Brand: Philips MSR Gold FastFit
• Order Code: 24568-8 (245688)
• Model: MSR Gold 1200 FastFit 1CT/4
• Wattage: 1200W
• Lamp Current: 15A
• Base Type: PGJX50 (Twist-Lock)
• Color Temperature: 6000K (Daylight)
• Color Rendering Index (CRI): 80
• Initial Lumens: 95,000 lm
• Luminous Efficacy: 80 lm/W
• Rated Average Life: 750 Hours
• Dimensions: 128mm (MOL) x 26.1mm (Diameter)
• Operating Position: Universal (P3 Technology)

Professional Applications

• Concert Touring: High-intensity output and FastFit design are ideal for the fast-paced nature of live touring.
• Film & Television: Consistent 6000K output ensures accurate color reproduction for studio broadcasts and location shoots.
• Stadiums & Large Venues: Provides the powerful throw required for long-distance architectural and event lighting.
• Theatrical Productions: Offers the precision and reliability needed for complex automated lighting plots.

Important Handling & Safety Notes

• UV Radiation: This lamp emits high levels of UV radiation. It must be operated in a fully enclosed fixture with a UV-filtering lens.
• High Pressure: Metal halide lamps operate under high pressure and can shatter if mishandled. Wear protective eyewear and gloves during installation.
• No Skin Contact: Do not touch the quartz bulb with bare hands. Fingerprints can cause "hot spots" that lead to premature lamp failure. Clean with alcohol if touched.
• Cool Down: Allow the lamp to cool for at least 15 minutes before attempting replacement to prevent burns and thermal shock to the fixture.

Additional Information

The Philips 24568-8 is the trusted replacement for industry-standard moving heads from manufacturers like Martin, Clay Paky, and Robe. By utilizing MSR Gold technology, technicians can achieve a higher degree of color consistency across their entire lighting rig. For touring professionals, the reduction in maintenance downtime and the reliability of the gold-plated contact system make this the definitive choice for 1200W automated lighting.
