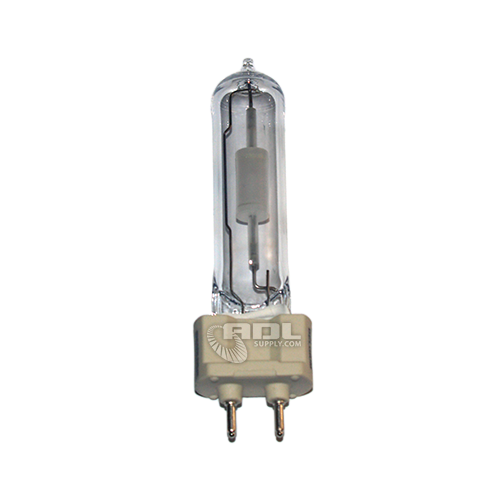

Philips 36039-6 (200945) MasterColor CDM-SA/T 150W/942 G12 Lamp

The Philips Broadway 36039-6 (200945) is a premium MasterColor Optics 150-Watt Ceramic Metal-halide lamp. Featuring a 4200K color temperature and a G12 bi-pin base, this T6 lamp is engineered for high-intensity dynamic architectural and SSTV lighting applications requiring superior color rendering.

Product Specifications

• Luminous Flux: 14,000 Initial Lumens
• Color Rendering Index (CRI): 95
• Color Temperature: 4200K (942 Cool White)
• Base Type: G12 Bi-pin Ceramic
• Rated Average Life: 9,000 Hours
• Luminous Efficacy: 88 Lm/W
• Burn Position: Universal
• Dimensions: 110mm (MOL) x 20mm (DIA)
• Philips Order Code: 36039-6 / 200945
• UPC Code: 8711500200945
• Manufacturing: Made in Belgium

High-Efficiency Architectural Lighting

The CDM-SA/T 150W 942 provides a high-efficiency alternative to standard Architainment lamps. By producing more lumens per watt, it serves as a greener solution for professional lighting. The compact arc and specialized lamp filling create high beam intensity and exceptional color stability.

Primary Applications

• Advertising and text projection
• Fiber optic lighting systems
• Decorative outdoor and architectural lighting
• Retail showrooms and shop windows
• MX-4 Scanner replacement bulb

System Requirements & Technical Notes

• Safety: A high-current protection device is mandatory per IEC 61167 standards.
• Voltage: If voltage deviations exceed 3% of the rated voltage, a specific ballast rating or tap must be utilized.
• Electronic Gear: Compatible with electronic ballasts such as Philips EMC to eliminate visible flicker in film and SSTV applications.
