Product Overview

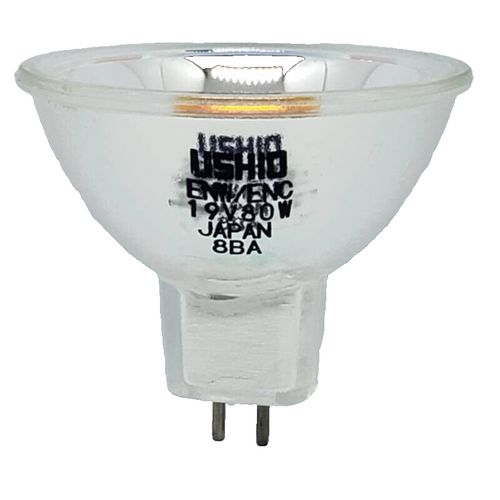

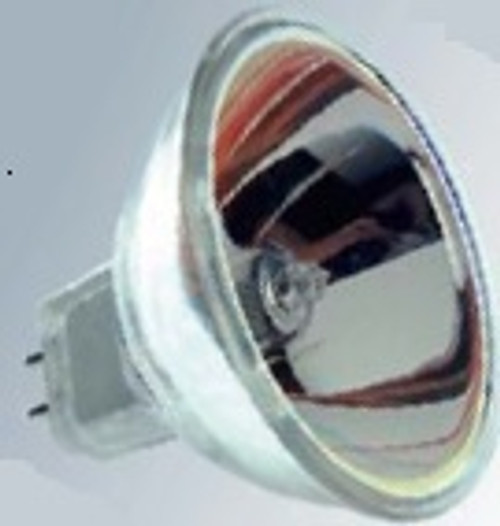

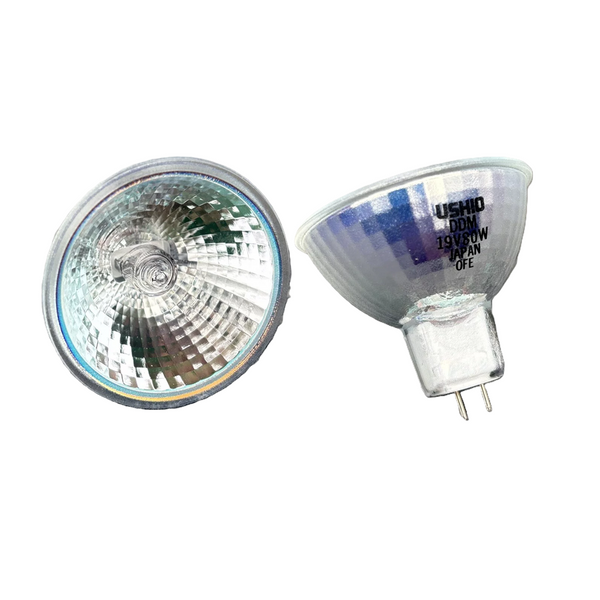

Ushio 1000174 DDM JCR19V-80W – 80W | 19V | 3350K Natural White | ANSI DDM | GX5.3

The Ushio 1000174 DDM JCR19V-80W is a 80W 19V Halogen MR16 Specular Reflector — Photo-Optic lamp, ANSI DDM, GX5.3 base, 3350K Natural White color temperature, 50 hours rated life. Designed for professional audio/visual projection, medical instruments, and specialty optical illumination.

Wattage

80W

Halogen

Voltage

19V

Operating

Color Temp

3350K

CCT

Lumens

—

Initial lm

Rated Life

Hours

Quick Specs

Brand: Ushio
Ushio Catalog Number: 1000174
ANSI Code: DDM
Lamp Type: Halogen MR16 Specular Reflector — Photo-Optic
Bulb Type: MR16 Reflector
Wattage: 80W
Operating Voltage: 19V
Color Temperature: 3350K Natural White
Rated Average Life: 50 hours
Base Type: GX5.3
Burn / Operating Position: Base Down to Horizontal (BD/Hor)

Product Overview

The Ushio 1000174 DDM JCR19V-80W is a 80W 19V halogen reflector lamp for professional audio/visual projection, medical instruments, and specialty optical illumination. At 3350K Natural White this lamp provides precise, high-intensity output. Rated life: 50 hours.

Do not touch the lamp envelope with bare hands. Skin oils cause hot spots leading to premature failure. Use clean gloves or lint-free cloth. Allow full cool-down before handling.

Applications

Professional audio/visual projection – Professional audio/visual projection, medical instruments, and specialty optical illumination.
Retrofit and maintenance replacement – Confirm ANSI code, wattage, voltage, and base type before ordering.

Safety and Handling

Do not touch the lamp envelope with bare hands. Skin oils cause hot spots leading to premature failure. Use clean gloves or lint-free cloth.
Voltage — 19V: Verify supply matches rated voltage. Operating above rated voltage significantly shortens lamp life.
Enclosed fixture only: Use only in approved enclosed optical fixtures.
Allow 15-minute cool-down before replacement.
