Ushio 1000349 EPX JCR14.5V-90W

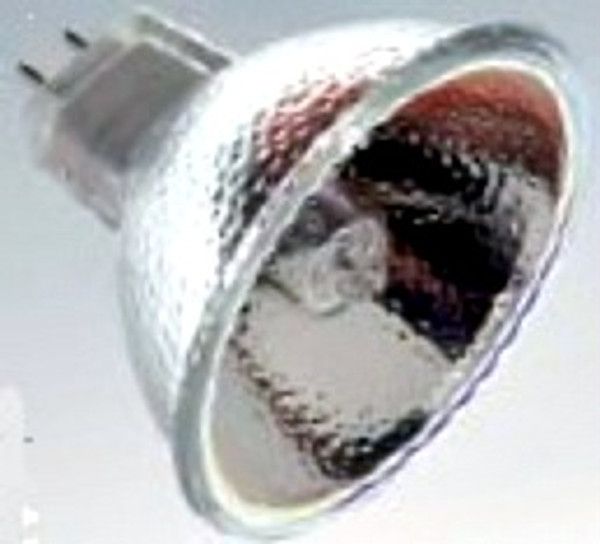

Ushio 1000349 EPX, JCR14.5V-90W MR16 Reflector Halogen Lamp – 90W 14.5V | GX5.3

The Ushio 1000349 EPX, JCR14.5V-90W is a tungsten-halogen MR16 reflector lamp designed for focused-beam optical applications. According to the Ushio MR16 reflector catalog, these lamps use a 50mm dichroic coated reflector and are intended only for approved enclosed halogen fixtures.

This lamp is specified at 90W, 14.5V, GX5.3 base, Stippled reflector, CC-6 filament, 3150K Tungsten White, and 500 hour average life. Confirm the ordering code, voltage, base type, burn position, and optical distance before ordering.

Product Overview

This Ushio JCR lamp provides a focused optical beam for projection, microscopy, fiber-optic, dental, medical, scientific, and other specialty equipment requiring an MR16 halogen reflector source. The 50mm reflector profile and specified working distance are critical for correct optical alignment.

Because these are precision photo-optic lamps, the replacement should be matched by Ushio ordering code, lamp description, wattage, voltage, base type, reflector type, and burn position rather than by wattage alone.

Technical Specifications

Compatible Applications

• Projectors and optical systems
• Microscopy and laboratory equipment
• Dental and medical examination lighting
• Fiber-optic illuminators
• Scientific, inspection, and display equipment
• OEM maintenance replacement where this exact Ushio code is specified

Before Ordering Verify

• Ordering Code: Match Ushio 1000349 and EPX, JCR14.5V-90W against your existing lamp or equipment manual.
• Voltage: Confirm your transformer or power supply output is 14.5V.
• Base: Confirm your socket accepts GX5.3 MR16 2-pin lamps.
• Burn Position: This product is listed for BD/Hor operation.
• Optical Fit: Verify reflector type, MOL, diameter, and working distance before ordering.

Safety & Installation Guidelines

• Use Enclosed Fixtures Only: Install only in approved enclosed halogen fixtures.
• Do Not Touch Quartz: Use gloves or a lint-free cloth to prevent oils from damaging the lamp.
• Verify Voltage Before Installing: Incorrect voltage can cause immediate failure or reduced lamp life.
• Allow Cooling: Let the lamp and fixture cool completely before replacement.
• Mercury-Free: This tungsten-halogen lamp contains 0.0 mg mercury.
