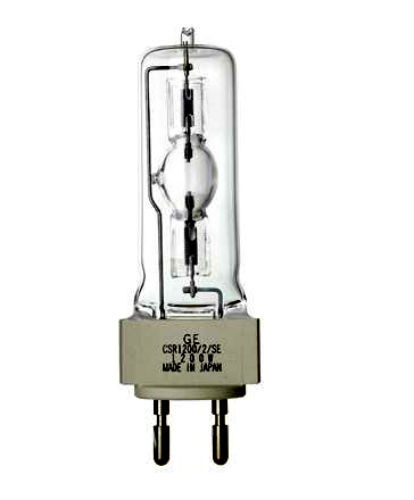

GE 49490 CSR1200/2/SE – —/100V Quartz Metal Halide (CSR) SSTV Lamp

Specifications

• Brand: GE (General Electric)
• SKU / Order Code: GELB49490 / 49490
• ANSI Code: —
• UPC: 0431684949080
• Lamp Type: Quartz Metal Halide (CSR)
• Wattage: —
• Voltage: 100V
• Base Type: G22
• Color Temperature: 7200K
• CRI: 85
• Initial Lumens: 110000
• Rated Average Life: — hours
• Filament: —
• Max Overall Length (MOL): 6.9in
• Bulb Diameter (DIA): —
• Burn Position: Rated Enclosed fixtures only GE Product

Compatible Applications

• Film & Broadcast Lighting
• Stage, Studio & Entertainment
• Outdoor & Arena Lighting
• Photography & Photoflood

About GE SSTV Stage, Studio & Theater Lamps

GE SSTV (Stage, Studio & Theater / Videoconferencing) lamps are engineered for the most demanding professional entertainment and broadcast environments. Delivering exceptional color rendering, consistent output, and long-rated life, GE SSTV lamps — including the CSR Quartz Metal Halide, CSS Ceramic Metal Halide, and Quartzline Halogen series — are the trusted choice for film, broadcast, concert, and theatrical lighting worldwide.

Important Safety & Installation Notes

• DC Power Required: CSR/CSS metal halide lamps require a DC power supply and compatible ballast. Incorrect power supply will damage the lamp.
• High Pressure Warning: These lamps operate under high internal pressure. Always wear face shield and protective gloves during handling and installation.
• No Bare Hands: Never touch the bulb envelope with bare skin. Oils cause hot spots leading to premature failure or lamp burst. Use clean gloves or a lint-free cloth.
• Do Not Exceed Rated Voltage: Operating above rated voltage dramatically shortens lamp life. Verify supply voltage before installing.
• Burn Position: Observe the rated burn position. Incorrect orientation can cause premature failure or lamp burst.
• Extreme Heat Warning: SSTV lamps operate at very high temperatures and UV output. Use only in approved enclosed luminaires with appropriate UV filtering.
• Allow Cool Down: Allow lamp to cool completely before handling or relamping. Do not touch immediately after switching off.
