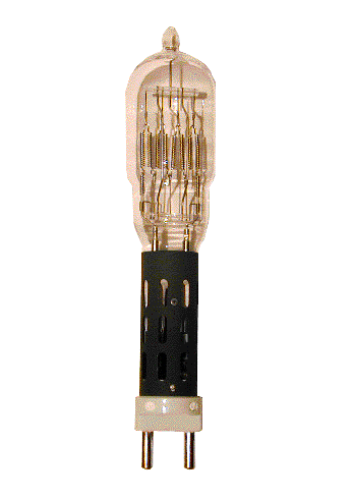

GE 48770 Q12MT26/4CL/120V – 24000W/120V Quartzline Halogen SSTV Lamp

Specifications

• Brand: GE (General Electric)
• SKU / Order Code: GELB48770 / —
• ANSI Code: —
• UPC: 043168487702
• Lamp Type: Quartzline Halogen
• Wattage: 24000W
• Voltage: 120V
• Base Type: GX38
• Color Temperature: 3400K
• CRI: —
• Initial Lumens: —
• Rated Average Life: 150 hours
• Filament: C-13
• Max Overall Length (MOL): 16.14 in
• Bulb Diameter (DIA): 3.25 in
• Burn Position: Within 45 of vertical base down Spec She

Compatible Applications

• Film & Broadcast Lighting
• Stage, Studio & Entertainment

About GE SSTV Stage, Studio & Theater Lamps

GE SSTV (Stage, Studio & Theater / Videoconferencing) lamps are engineered for the most demanding professional entertainment and broadcast environments. Delivering exceptional color rendering, consistent output, and long-rated life, GE SSTV lamps — including the CSR Quartz Metal Halide, CSS Ceramic Metal Halide, and Quartzline Halogen series — are the trusted choice for film, broadcast, concert, and theatrical lighting worldwide.

Important Safety & Installation Notes

• High Pressure Warning: These lamps operate under high internal pressure. Always wear face shield and protective gloves during handling and installation.
• No Bare Hands: Never touch the bulb envelope with bare skin. Oils cause hot spots leading to premature failure or lamp burst. Use clean gloves or a lint-free cloth.
• Do Not Exceed Rated Voltage: Operating above rated voltage dramatically shortens lamp life. Verify supply voltage before installing.
• Burn Position: Observe the rated burn position. Incorrect orientation can cause premature failure or lamp burst.
• Extreme Heat Warning: SSTV lamps operate at very high temperatures and UV output. Use only in approved enclosed luminaires with appropriate UV filtering.
• Allow Cool Down: Allow lamp to cool completely before handling or relamping. Do not touch immediately after switching off.
