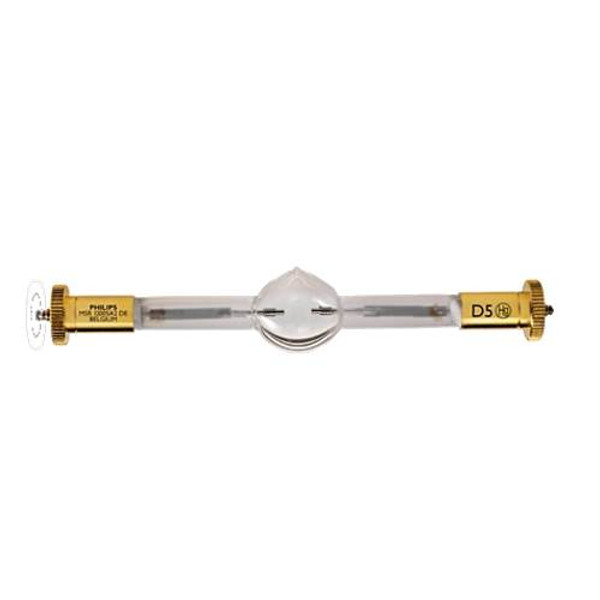

Philips 28714-4 MSR Gold 1200 SA/DE – 1200W/207V | 6000K Daylight | 106,000 Lumens | SFc10-4 Gold Plated Cap

The Philips 28714-4 MSR Gold 1200 SA/DE is a 6000K Daylight MSR Metal Halide — Entertainment/Stage lamp delivering 106,000 initial lumens, CRI 85, 207V operating voltage, 750-hour rated life, SFC10-4 Gold Plated Cap base. UPC: 8718291221210. Item: 1200W SA-DE-MSR Gold. Philips order code: #247144.

Quick Specs

• Brand: Philips
• Item / Catalog Number: 1200W SA-DE-MSR Gold
• UPC / EAN: 8718291221210
• Philips Order Code: #247144
• Lamp Type: MSR Metal Halide — Entertainment/Stage
• Wattage: 1200W
• Operating Voltage: 207V
• Lamp Current: 13.5 A
• Color Temperature: 6000K Daylight
• CRI: 85
• Initial Lumens: 106,000 lm
• Luminous Efficacy: 91 lm/W
• Rated Average Life: 750 hours
• Base Type: SFc10-4 Gold Plated Cap
• Overall Length (MOL): 136mm x DIA 22mm
• Burn / Operating Position: Position

Product Overview

The Philips 28714-4 MSR Gold 1200 SA/DE is a 6000K Daylight MSR Metal Halide — Entertainment/Stage lamp delivering 106,000 initial lumens at CRI 85 for professional moving head fixtures, follow spots, film, broadcast, and large-venue stage lighting. MSR Gold series lamps include Philips Pinch Protection for increased durability and reduced early failures. Universal burn position. Rated life: 750 hours.

Requires compatible electronic ballast rated for this lamp. Allow warm-up time. Mercury content — dispose per local regulations. Visit lamprecycle.org.

Applications

• Professional moving head and follow spot fixtures – MSR Metal Halide — Entertainment/Stage lamp for professional entertainment lighting fixtures specifying .
• Film, broadcast, and large-venue stage lighting – High-output 6000K Daylight discharge source for production and live event lighting.

Safety and Installation Notes

• Compatible ballast required. Use only a compatible electronic ballast rated for this wattage and lamp type.
• Do not touch envelope with bare hands.
• Mercury disposal: Contains mercury. Visit lamprecycle.org.

Ordering Information

• Brand: Philips
• Item / Catalog Number: 1200W SA-DE-MSR Gold
• UPC / EAN: 8718291221210
• Wattage / Voltage: / 207V
• Base: SFC10-4 Gold Plated Cap
• Philips Order Code: #247144
• Case quantities and bulk pricing: Contact ADL Supply for volume orders.

Compliance

• Verify RoHS compliance with manufacturer specification sheet.
• Verify Prop 65 requirements with manufacturer specification sheet.
• This lamp contains mercury — dispose per local lamp recycling regulations. Visit lamprecycle.org.

ADL Supply recommends confirming all specifications with the manufacturer product data sheet prior to specification or installation.
