Product Overview

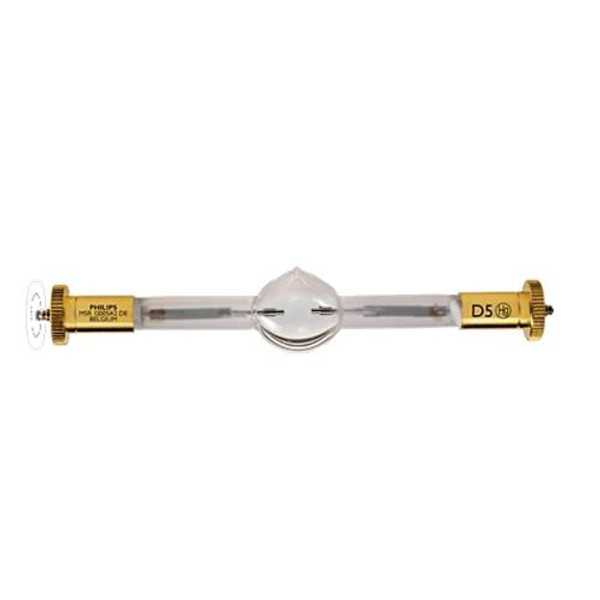

Philips 28716-9 MSR Gold 1510 SA/DE – 1500W/198V | 6000K Daylight | 140,000 Lumens | SFc10-4 Gold Plated Cap
The Philips 28716-9 MSR Gold 1510 SA/DE is a 6000K Daylight MSR Metal Halide — Entertainment/Stage lamp delivering 140,000 initial lumens, CRI 85, 198V operating voltage, 750-hour rated life, SFC10-4 Gold Plated Cap base. UPC: 8718291221135. Philips order code: #28716-9. Replaces: #20784-5.
Wattage 1500W MSR Metal Ha | Voltage 198V Operating | Lumens 140,000 Initial lm | Color Temp 6000K CRI 85 | Rated Life 750 Hours |
Quick Specs
- Brand: Philips
- Item / Catalog Number: #28716-9
- UPC / EAN: 8718291221135
- Philips Order Code: #28716-9
- Lamp Type: MSR Metal Halide — Entertainment/Stage
- Wattage: 1500W
- Operating Voltage: 198V
- Lamp Current: 13.5 A
- Color Temperature: 6000K Daylight
- CRI: 85
- Initial Lumens: 140,000 lm
- Luminous Efficacy: 93 lm/W
- Rated Average Life: 750 hours
- Base Type: SFc10-4 Gold Plated Cap
- Overall Length (MOL): 136mm x DIA 23mm
- Burn / Operating Position: Position
- Replaces: #20784-5
Product Overview
The Philips 28716-9 MSR Gold 1510 SA/DE is a 6000K Daylight MSR Metal Halide — Entertainment/Stage lamp delivering 140,000 initial lumens at CRI 85 for professional moving head fixtures, follow spots, film, broadcast, and large-venue stage lighting. MSR Gold series lamps include Philips Pinch Protection for increased durability and reduced early failures. Universal burn position. Rated life: 750 hours.
Requires compatible electronic ballast rated for this lamp. Allow warm-up time. Mercury content — dispose per local regulations. Visit lamprecycle.org.
Applications
- Professional moving head and follow spot fixtures – MSR Metal Halide — Entertainment/Stage lamp for professional entertainment lighting fixtures specifying .
- Film, broadcast, and large-venue stage lighting – High-output 6000K Daylight discharge source for production and live event lighting.
Safety and Installation Notes
- Compatible ballast required. Use only a compatible electronic ballast rated for this wattage and lamp type.
- Do not touch envelope with bare hands.
- Mercury disposal: Contains mercury. Visit lamprecycle.org.
Ordering Information
- Brand: Philips
- Item / Catalog Number: #28716-9
- UPC / EAN: 8718291221135
- Wattage / Voltage: / 198V
- Base: SFC10-4 Gold Plated Cap
- Philips Order Code: #28716-9
- Case quantities and bulk pricing: Contact ADL Supply for volume orders.
Compliance
- Verify RoHS compliance with manufacturer specification sheet.
- Verify Prop 65 requirements with manufacturer specification sheet.
- This lamp contains mercury — dispose per local lamp recycling regulations. Visit lamprecycle.org.
ADL Supply recommends confirming all specifications with the manufacturer product data sheet prior to specification or installation.
