Product Overview

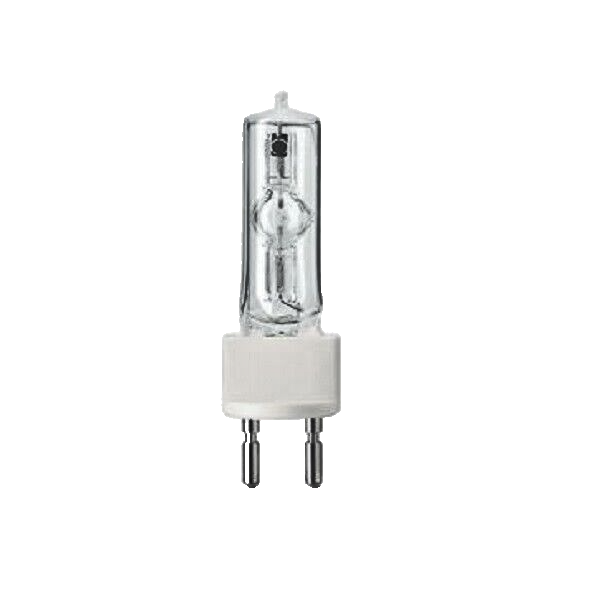

Philips 302661 MSR-1200 G22 – 1200W/90V | 5900K Daylight | 110,000 Lumens | G22 Bipin

The Philips 302661 MSR-1200 G22 is a 5900K Daylight MSR Metal Halide — Entertainment/Stage lamp delivering 110,000 initial lumens, CRI 85, 800-hour rated life, Base base. UPC: 8711500189363. Item: msr1200-g22-Broadway.

Wattage

1200W

MSR Metal Ha

Voltage

—

Operating

Lumens

110,000

Initial lm

Color Temp

5900K

CRI 85

Rated Life

800

Hours

Quick Specs

Brand: Philips
Item / Catalog Number: msr1200-g22-Broadway
UPC / EAN: 8711500189363
Lamp Type: MSR Metal Halide — Entertainment/Stage
Operating Voltage: 90V
Wattage: 1200W
Lamp Current: 13.8 A
Color Temperature: 5900K Daylight
CRI: 85
Initial Lumens: 110,000 lm
Luminous Efficacy: 91 lm/W
Rated Average Life: 800 hours
Base Type: G22 Bipin
Overall Length (MOL): 175mm x DIA 40mm
Burn / Operating Position: Position

Product Overview

The Philips 302661 MSR-1200 G22 is a 5900K Daylight MSR Metal Halide — Entertainment/Stage lamp delivering 110,000 initial lumens at CRI 85 for professional moving head fixtures, follow spots, film, broadcast, and large-venue stage lighting. Universal burn position. Rated life: 800 hours.

Requires compatible electronic ballast rated for this lamp. Allow warm-up time. Mercury content — dispose per local regulations. Visit lamprecycle.org.

Applications

Professional moving head and follow spot fixtures – MSR Metal Halide — Entertainment/Stage lamp for professional entertainment lighting fixtures specifying .
Film, broadcast, and large-venue stage lighting – High-output 5900K Daylight discharge source for production and live event lighting.

Safety and Installation Notes

Compatible ballast required. Use only a compatible electronic ballast rated for this wattage and lamp type.
Do not touch envelope with bare hands.
Mercury disposal: Contains mercury. Visit lamprecycle.org.
