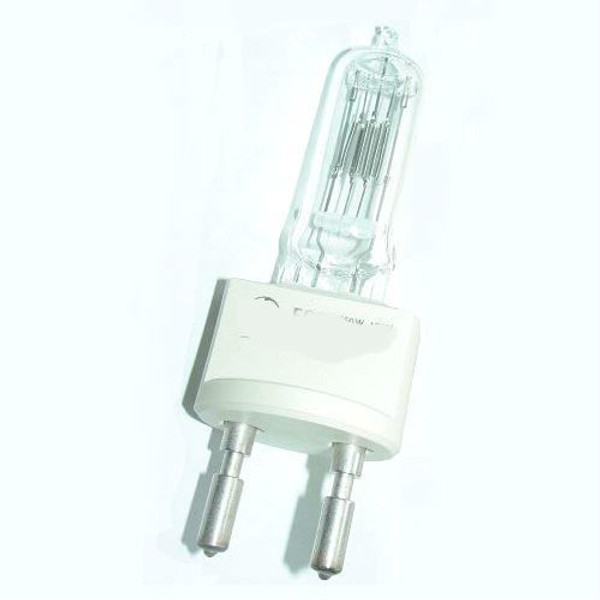

Sylvania 54662 EGR 750T7Q/4CL – 750W/120V | EGR | 3200K Warm White | G22 Medium Bi-Post

The Sylvania 54662 EGR 750T7Q/4CL is a 750W 120V SSTV (Stage, Studio & Theater) halogen lamp — ANSI EGR — delivering 15,750 initial lumens, CRI 100, G22 Medium Bi-Post base, 200-hour rated life, 3200K Warm White color temperature. T6 bulb. ANSI EGR. UPC: 46135546624.

Quick Specs

• Brand: Sylvania
• Item / Catalog Number: —
• UPC / EAN: 46135546624
• ANSI Code: EGR
• Lamp Type: SSTV Halogen — Stage, Studio & Theater
• Wattage: 750W
• Operating Voltage: 120V
• Color Temperature: 3200K Warm White
• CRI: 100
• Initial Lumens: 15,750
• Rated Average Life: 200 hours
• Base Type: G22 Medium Bi-Post
• Overall Length (MOL): 5 inches × 0.75 inch diameter
• Burn / Operating Position: Horizontal (s90)
• Filament: C-13D

Product Overview

The Sylvania 54662 EGR 750T7Q/4CL is a 750W 120V SSTV halogen lamp — ANSI EGR — for professional stage, studio, broadcast, and theatrical lighting applications. At 3200K Warm White with CRI 100, this lamp provides studio-standard tungsten output compatible with camera systems set for tungsten white balance.

Operating at 120V requires correct voltage supply — verify your fixture circuit before installing. Horizontal (s90) burn position — verify fixture orientation before installing. Do not touch the quartz envelope with bare hands — use gloves or lint-free cloth. Clean with isopropyl alcohol if accidentally touched. Allow 15 minutes cool-down before handling.

Applications

• Stage and theatrical lighting – Professional fixtures specifying ANSI EGR 750W 120V halogen.
• Film and broadcast production – Studio and on-set tungsten fixtures at 3200K Warm White.
• Concert and touring lighting – Touring production rigs requiring reliable high-output halogen at 120V.

Replacing Your Current SSTV Halogen Lamp?

• ANSI code — EGR: Verify your fixture specifies ANSI EGR. Adjacent ANSI codes are not interchangeable even at the same wattage.
• Voltage — 120V: Verify your fixture supply is 120V. Operating above rated voltage significantly shortens lamp life.
• Base — G22 Medium Bi-Post: Verify your fixture uses G22 Medium Bi-Post lampholders. Note G9.5, GY9.5, and GX9.5 are different pin specifications — confirm exact designation.
• Burn position — Horizontal (s90): Verify fixture orientation matches this requirement.
• Do not touch quartz with bare hands: Use gloves or lint-free cloth.
• Allow cool-down before replacement: Minimum 15 minutes after switch-off.

Ordering Information

• Brand: Sylvania
• Item / Catalog Number: —
• UPC / EAN: 46135546624
• Wattage / Voltage: 750W / 120V
• ANSI Code: EGR
• Base: G22 Medium Bi-Post
• Case quantities and bulk pricing: Contact ADL Supply for volume orders.

Safety and Compliance

• Verify RoHS / Prop 65 compliance with manufacturer specification sheet.
• Halogen lamp — no mercury content.
• Do not touch quartz envelope with bare hands. Use gloves or lint-free cloth.

ADL Supply recommends confirming all specifications with the manufacturer product data sheet prior to installation.
