Product Overview

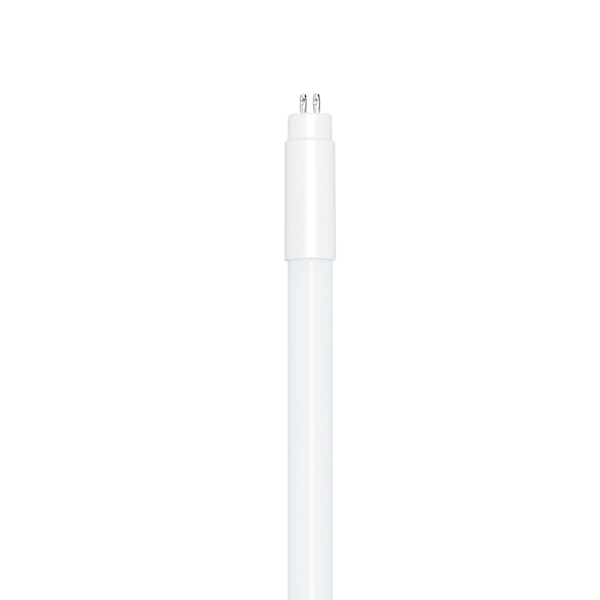

Sylvania 42041 SubstiTUBE LED7T5HEL24FG835SUBG2 7W 2ft T5 HE LED Tube 3500K G5 UL Type A | 1000 Lumens | 82 CRI | G5 Base | 50,000 Hours
The Sylvania 42041 SubstiTUBE LED7T5HEL24FG835SUBG2 is a 7W 2ft T5 High Efficiency LED tube designed as a UL Type A replacement for the FP14/835/ECO fluorescent T5 lamp. It operates on select compatible programmed rapid start electronic T5 ballasts, providing 1000 lumens at 3500K. Verify ballast compatibility, lamp length, base, and fluorescent replacement code before ordering.
WATTAGE 7W LED Lamp |
LUMENS 1000 Typical |
COLOR TEMP 3500K CCT |
BASE G5 Mini Bi-Pin |
CRI 82 Color Rendering |
Technical Specifications
| Brand | Sylvania / LEDVANCE |
| Item Number | 42041 |
| Ordering Abbreviation | LED7T5HEL24FG835SUBG2 |
| Lamp Type | SubstiTUBE LED T5HE UL Type A, Gen 2 |
| Wattage | 7W |
| Fluorescent Replacement | FP14/835/ECO |
| Length | 2ft nominal; max overall length 22.17 in / 563 mm |
| Base | G5 |
| Typical Lumens | 1000 lm |
| Color Temperature | 3500K |
| CRI | 82 |
| Beam Angle | 180° with frosted glass optics; 320° light emitting angle |
| Rated Life | 50,000 hours (L70) |
| Power Factor | >0.90 |
| THD | <20% |
| Dimming | Not identified as dimmable in the manufacturer ordering table. |
| Location Rating | Dry and damp locations |
| Operating Temperature | -4°F to 113°F (-20°C to 45°C) |
| Maximum Case Temperature | 167°F (75°C) |
| Case Quantity | 25 |
| DLC | N/A |
| Certifications / Listings | cULus, RoHS, FCC, NSF, Lead Free, Mercury Free |
| Warranty | 5-year limited warranty |
Product Overview
This SubstiTUBE T5HE lamp provides an energy-saving LED alternative to standard-output fluorescent T5 lamps while retaining operation on select compatible programmed rapid start electronic T5 ballasts. It is instant-on, mercury-free, has no lamp polarity, and uses frosted glass optics for uniform light distribution.
The lamp is intended for Type A retrofit applications where the existing ballast remains in place. Ballast compatibility must be confirmed before installation, and the product cannot be used with High Output ballasts.
Compatible Applications
- Commercial and institutional T5 fluorescent retrofit applications
- Fixtures using compatible programmed rapid start electronic T5 ballasts
- Dry and damp indoor locations
- Occupancy and vacancy sensor applications when the ballast/system is compatible
Before Ordering – Verify
- Confirm the exact fluorescent replacement code: FP14/835/ECO.
- Confirm G5 base and 2ft nominal lamp length.
- Confirm the existing programmed rapid start electronic T5 ballast is on the LEDVANCE compatibility list.
- Do not use with High Output ballasts.
- Do not mix this lamp with other LED or fluorescent lamps on the same ballast.
- Do not use with ballasts more than ten years old.
- No de-lamping is allowed; replace a failed lamp immediately.
Safety and Handling Guidelines
- Turn power off before installation, inspection, or maintenance.
- Install and operate in accordance with NEC, UL requirements, and applicable codes.
- Insert and align tubes fully in lamp holders to prevent poor contact, arcing, and localized overheating.
- Maximum mounting distance between tube and ballast is 20 feet.
- Operating temperature must remain between -4°F and 113°F (-20°C and 45°C).
Compliance
- cULus listed
- RoHS compliant
- FCC compliant
- NSF listed
- Lead free and mercury free
- DLC listing: N/A for this model.
Ordering Information
- Manufacturer item number: 42041
- Ordering abbreviation: LED7T5HEL24FG835SUBG2
- Case quantity: 25 lamps
- Series: SubstiTUBE T5HE UL Type A Gen 2
- Use the manufacturer ballast compatibility guide before installation.
For wholesale pricing, bulk availability, or help confirming the correct replacement lamp, contact ADL Supply at 1-800-235-3489.
