Product Overview

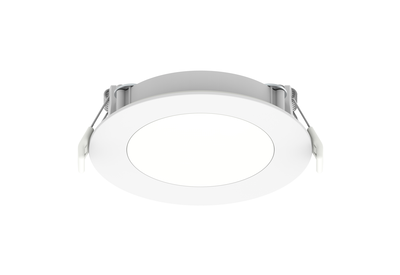

SYLVANIA UltraLED™ MICRODISK™ 4" Downlight – 5000K, 8W, 650 Lumens
Product Overview
The SYLVANIA UltraLED™ MICRODISK™ 4" Downlight (LEDMD4650950UNV) is a compact, ultra-slim lighting solution ideal for both remodel and new construction. With a sleek 1-inch profile and included fire-rated junction box, it eliminates the need for a recessed can. Delivering 650 lumens at just 8 watts with a crisp 5000K daylight white
Technical Specifications
| Attribute | Details |
|---|---|
| Manufacturer Part # | 60697 |
| Model | LEDMD4650950UNV |
| UPC | 046135606977 |
| Shape / Size | Round / 4" |
| Light Output | 650 lumens |
| Wattage | 8 watts |
| Voltage | 120-277V |
| Color Temperature | 5000K (Daylight) |
| Color Rendering Index (CRI) | 90+ |
| Efficacy | 81 lm/W |
| Beam Angle | 120° |
| Dimming | 0-10V compatible |
| Length | 5.2 inches |
| Height | 1 inch |
| Rated Life | 50,000 hours |
| Finish | White |
| Operating Temperature | -4°F to +104°F (-20°C to +40°C) |
| Warranty | 5 Years |
Key Features & Benefits
- Ultra-Thin Design: 1-inch profile fits under joists – no recessed housing needed
- Fire-Rated Junction Box: Eliminates the need for a can; code-compliant
- High CRI (90+): Excellent color accuracy and lighting quality
- Wide 120° Beam Angle: Broad light spread for even coverage
- Instant-On: Full brightness without warm-up delay
- Energy Efficient: Up to 92% energy savings vs incandescent
- 0-10V Dimming: Seamless control with compatible dimmers
Recommended Applications
- Bathrooms & Kitchens
- Closets & Attics
- Stairwells & Corridors
- Soffits & Covered Exterior Spaces
- Multifamily Housing Units
Warranty
Covered by a 5-year limited warranty from SYLVANIA / LEDVANCE, ensuring reliable performance and long-term durability under standard operating conditions.
Certifications & Compliance
- ENERGY STAR® Certified
- cETLus Listed for wet and damp locations
- FCC Compliant
- RoHS Compliant
- California Title 24 Compliant
- Closet-Rated: Complies with NFPA 70 / NEC section 410.16
Energy Savings Comparison
| Legacy Fixture | Wattage | SYLVANIA MICRODISK | Energy Savings |
|---|---|---|---|
| 60W Incandescent | 60W | 8W | 87% |
| 75W Incandescent | 75W | 8W | 89% |
| 13W CFL | 13W | 8W | 38% |
Estimated Annual Savings: $8–$10 per fixture.
Install 20? Save up to $200 annually in energy costs alone.
