Sylvania 62395 LEDSLMDNL7850SC3D2DM

Sylvania 62395 LEDSLMDNL7850SC3D2DM — Hi-PerformanceLED Slim Downlight, 7 in, 12W, 850 Lumens, 5-CCT Selectable, PIR + Dusk-to-Dawn Sensor

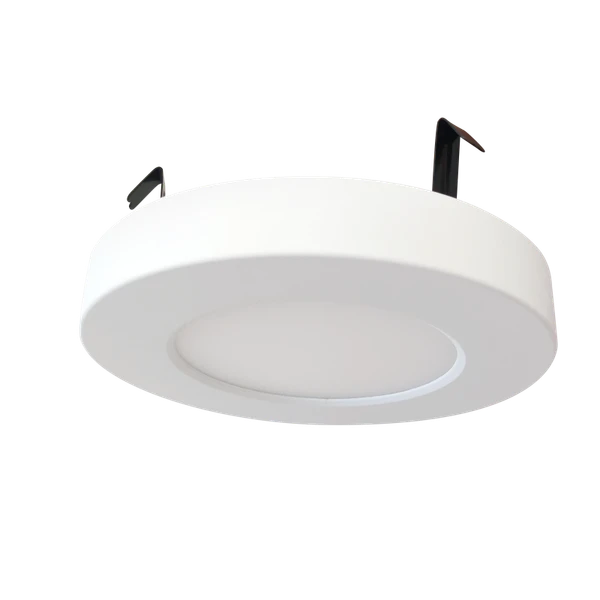

The Sylvania 62395 (LEDSLMDNL7850SC3D2DM) is a 7 in round Hi-PerformanceLED Slim Downlight with a screw base and selectable color temperature (2700K, 3000K, 3500K, 4000K or 5000K). It draws 12W on 120V and delivers 850 typical lumens with a CRI >80, as a replacement for a 75W incandescent source. This model adds a PIR motion sensor with dusk-to-dawn control. It installs either by screw base (E26) in a recessed can or hardwired to a flush ceiling with the included mounting plate, and is wet rated.

Technical Specifications

Product Overview

The SYLVANIA Hi-PerformanceLED Slim Downlight is a slim luminaire generation focused on lighting efficiency and modern design, with energy savings up to 86% and high quality color reproduction. It is designed for residential, hospitality, retail and other low bay applications, with no warm-up time, instant-on light and uniform, glare-free illumination.

This item is the 7 in, 12W version at 850 lumens. Color temperature is selected on site from 2700K, 3000K, 3500K, 4000K and 5000K, so one item covers several finishes. Rated life is 50,000 hours (L70) with a 5-year warranty.

The D2DM option adds a PIR motion sensor and dusk-to-dawn operation for further energy savings. This model is listed at CRI >80 in the ordering table, and its ordering abbreviation differs in form from the other models (see Before Ordering).

Compatible Applications

• Residential lighting
• Hospitality
• Retail
• Other low bay applications
• Recessed cans (screw base) and flush ceiling mount (hardwire with mounting plate)
• Wet locations (wet rated)

Before Ordering – Verify

• Confirm the installation method — screw base (E26) in a recessed can, or hardwire to a flush ceiling with the included mounting plate.
• Torsion springs for recessed cans are included with this size.
• Confirm voltage — this item is 120V only (single voltage).
• Confirm the 7 in diameter fits the intended opening or can.
• Dimming: the ordering abbreviation for this item (LEDSLMDNL7850SC3D2DM) does not carry the phase-cut dimming designation used by the other models, although the datasheet lists the family as phase-cut dimmable. Confirm dimming and sensor behavior with the factory before specifying.
• The datasheet lists CRI >80 for this item, versus >90 on the other models.
• Confirm ambient conditions stay within -4°F to +104°F (-20°C to +40°C).
• Confirm case quantity — this item is supplied 4 per case.
• Selectable color temperature: set the desired CCT during installation as described in the manufacturer instructions.

Safety and Handling Guidelines

• Turn off power at the breaker before installing, inspecting, or maintaining the fixture.
• Install and operate in compliance with the National Electrical Code and all applicable local codes.
• Follow the manufacturer installation instructions for screw-base and hardwire installation.
• Do not exceed the fixture's rated voltage.
• Operate within the rated ambient range of -4°F to +104°F (-20°C to +40°C).

Compliance

• cETLus listed.
• RoHS compliant.
• FCC compliant.
• ENERGY STAR® certified (datasheet: Yes).
• Title 24 (T24): Yes. Title 20 (T20): No.
• Wet rated.
• 5-year warranty; NLB Trusted Warranty Program.

Ordering Information

• Item Number: 62395
• Ordering Abbreviation: LEDSLMDNL7850SC3D2DM
• UPC: 046135623950
• Brand: Sylvania (LEDVANCE)
• Description: 7 in round slim downlight, 12W, 850 lm, CRI >80, 5-CCT selectable, screw base
• Case Quantity: 4
