Product Overview

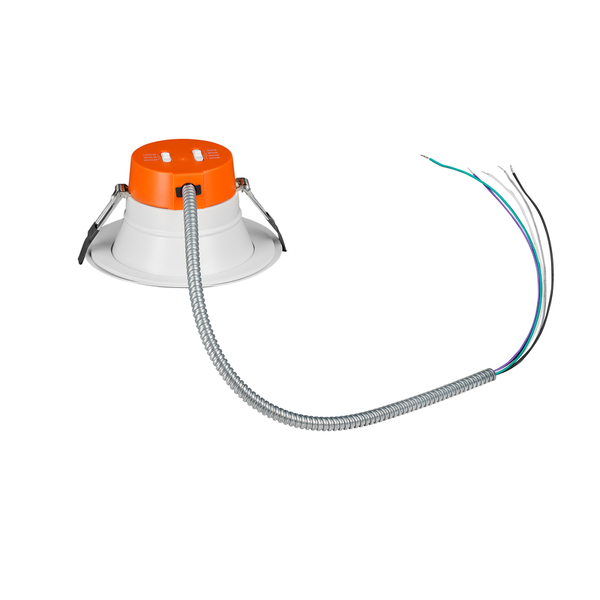

Sylvania 62825 RT65AS2000UNH9SC8WH — RT Dual Select Performance 6" 4-CCT LED Recessed Downlight, 10/18/23W Selectable
The Sylvania 62825 is a 6" RT Dual Select Performance LED recessed downlight with field-selectable wattage/lumen output (10/18/23W) and 4-CCT color temperature selection (2700/3000/3500/4000K) in a single SKU — no need to stock a separate part number for every wattage and color temperature combination. It's 90+ CRI with an 85° beam angle and 0-10V dimming on 120-347V.
WATTAGE 10/18/23W Field-Selectable | LUMENS 900/1,600/2,000 up to 87 LPW | COLOR TEMP 2700/3000/3500/4000K 4-CCT Select | RATED LIFE 50,000h Average | DIMMING 0-10V 120-347V |
Technical Specifications
| Item Number | 62825 |
| Ordering Abbreviation | RT65AS2000UNH9SC8WH |
| Size | 6" RT downlight |
| Selectable Wattage | 10/18/23W |
| Selectable Lumens | 900/1,600/2,000 lm |
| Input Voltage | 120-347V |
| Power Factor | ≥0.90 |
| THD | <20% |
| Selectable CCT | 2700/3000/3500/4000K |
| Color Rendering Index (CRI) | >90 |
| Efficacy | up to 87 LPW |
| Beam Angle | 85° FWHM |
| Dimming | 0-10V dimmable |
| Rated Life | 50,000 hours average |
| Diameter | 7.36" |
| Height | 3.98" |
| Product Weight | Not published by manufacturer |
| Housing | Aluminum, White finish |
| Mercury Content | 0.0 mg |
| Mounting | Recessed |
| Replaceable Light Source | No |
| Warranty | 5-year |
| Traditional Fluorescent Replacement | 15/23/27W |
| IC Rated | No |
| Certifications | cETLus, RoHS, FCC, ENERGY STAR®, Title 24 |
| UPC/EAN | 046135628252 |
Product Overview
The RT Dual Select Performance series lets you carry one SKU that covers what used to take several separate part numbers. Wattage and lumen output are field-selectable across 10/18/23W (900/1,600/2,000 lm), and color temperature is selectable across 2700/3000/3500/4000K — set once at install to match the job, without ordering a different fixture for every spec.
The 62825 delivers up to 87 LPW efficacy at >90 CRI with an 85° beam angle, 0-10V dimming on 120-347V, and a 50,000-hour average rated life, backed by a 5-year warranty.
Compatible Applications
- New construction recessed downlighting
- Retrofit of existing recessed downlight installations
- Commercial and residential general lighting
- Suitable for wet locations
Before Ordering – Verify
- Confirm desired wattage/lumen tier (10/18/23W) and color temperature (2700/3000/3500/4000K) are set correctly at install — both are field-selectable on this fixture.
- Confirm dimming system compatibility — this item supports 0-10V dimming; performance may vary by system.
- Confirm voltage (120-347V) matches your circuit before ordering.
- If emergency battery back-up is required, this item is compatible with SYLVANIA accessory 62368 (rated 13W / 1,400 lm emergency output at the highest lumen setting) — confirm before ordering.
Safety and Handling Guidelines
- Disconnect power at the breaker before installing or servicing this fixture.
- Install only in ceiling types and can sizes this kit is rated for.
- Do not exceed the fixture's rated wattage or voltage.
- Suitable for wet locations.
Compliance
- Manufactured by LEDVANCE LLC under the SYLVANIA brand.
- Certifications: cETLus, RoHS, FCC, ENERGY STAR®, Title 24.
- 5-year warranty.
Ordering Information
- Item Number: 62825
- Ordering Abbreviation: RT65AS2000UNH9SC8WH
- UPC/EAN: 046135628252
- Includes: luminaire with integrated driver, wire nuts, and mounting/knockout hardware per the installation guide.
- Optional accessories (sold separately): trim rings, trim extenders, rough-in frames, and EMBB emergency battery back-up modules.
- Sold individually unless otherwise noted on the product page.
