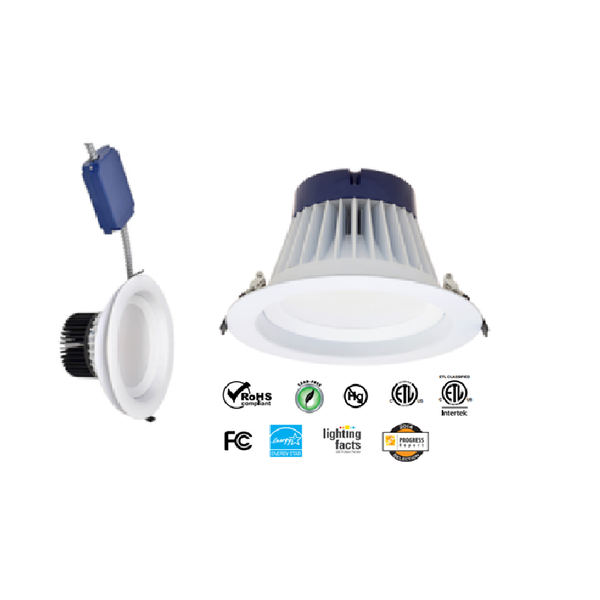

Sylvania LED/RT8/2000/840 8" LED Recessed Downlight – 2000 lm, 4000K, CRI 82, 120-277V

Sylvania LED/RT8/2000/840 — 8" LED Recessed Downlight Retrofit Kit, 2000 lm, 4000K, 24W, 120-277V, 0-10V Dimmable

The Sylvania LED/RT8/2000/840 is an 8" LED recessed downlight retrofit kit designed to replace existing replaces 2x26W CFL fixtures in standard 8" recessed housings. It delivers 2000 lumens at 4000K, CRI 82, drawing 24W on 120-277V input, with 0-10V low-voltage dimming support. Installation uses the integrated metal conduit adaptor for direct replacement. Verify housing compatibility, voltage, and dimming requirements before ordering.

Technical Specifications

Product Overview

The Sylvania LED/RT8/2000/840 is an eight-inch LED recessed downlight retrofit kit built to replace existing CFL pin-base lamps or, in the case of the 8000lm configuration, HPS/MH lamps in standard 8" recessed mounting frames. It installs as a direct retrofit using the included metal conduit adaptor, with no separate housing replacement required in most applications.

This 24W unit produces 2000 lumens at a fixed 4000K color temperature with CRI 82, and supports 0-10V low-voltage dimming for compatibility with standard commercial dimming controls. The optical design directs output in an 80° beam angle with low glare, suitable for general ambient lighting in offices, healthcare, hospitality, retail, and residential spaces.

Compatible Applications

• Healthcare facilities
• Hospitality (hotels, restaurants)
• Office and commercial space
• Property management / multi-family residential
• Residential retrofit
• Retail
• Direct retrofit replacement for 2x26W or 2x42W CFL pin-base lamps in 8" housings

Before Ordering — Verify

• Confirm the existing housing is a standard 8" CFL mounting frame (8" (replaces 2x26W CFL)); a 10" application requires the optional trim extender accessory.
• Confirm required input voltage (120-277V) matches the site's electrical service – 347V units are not interchangeable with 120-277V units.
• Confirm color temperature (4000K) and CRI (82) meet the project's lighting specification; CCT is fixed on this SKU, not field-selectable.
• Confirm dimming control compatibility if 0-10V dimming is required; this SKU supports dimming.
• If trim color other than white is desired, confirm and order the appropriate RT8 Alzak or Satin trim accessory separately.
• If used with emergency backup, confirm compatibility with Philips Bodine ELI-S-20 or IOTA IIS-125 inverters – other models are not confirmed compatible.

Safety and Handling Guidelines

• Disconnect power before installation or service.
• Do not exceed the rated operating temperature range (-4°F to +104°F / -20°C to +40°C).
• Maintain a three-inch clearance around the kit if ceiling insulation is present in a non-insulated ceiling installation.
• Use a recessed incandescent frame for tiled-ceiling applications to properly support the retrofit kit; stand-alone installation (without frame) is recommended for hard ceilings.
• Do not disassemble internal LED or driver components. Use qualified personnel for electrical connections.

Compliance

• UL1598 Listed and Classified for stand-alone and retrofit applications
• RoHS Compliant
• FCC Compliant (Title 47 CFR, Part 15, Class B)
• ENERGY STAR® rated
• Suitable for dry, damp, and wet locations

Ordering Information

• Brand: Sylvania
• Item Number: 74468
• Order Code: LED/RT8/2000/840
• Wattage: 24W
• Lumen Output: 2000 lm
• Color Temperature: 4000K
• Voltage: 120-277V
• Dimming: 0-10V Dimmable
• Accessories: RT8 trim rings (Alzak, Satin Nickel) and trim ring extenders (10", 12") available separately.
• Packaging: Sold individually unless otherwise noted.
• Case quantities and bulk pricing: Contact ADL Supply for volume orders.

For wholesale pricing, bulk availability, or help confirming the correct retrofit configuration for your project, contact ADL Supply at 1-800-235-3489.
