Product Overview

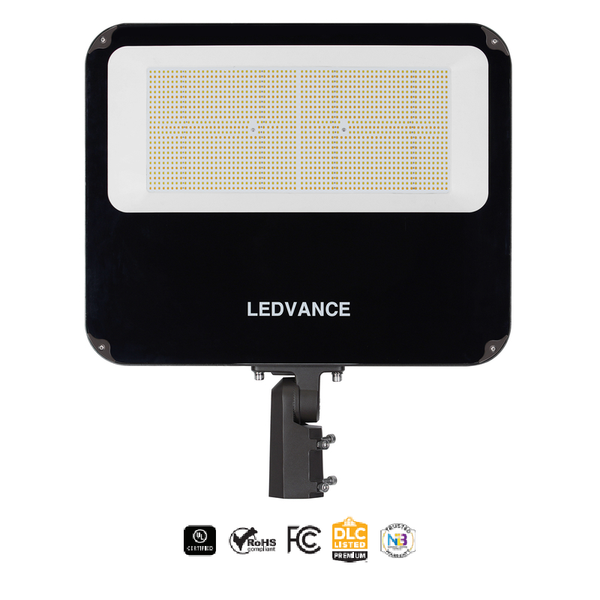

Sylvania FLOODLT2AS140UNHD8SC2BZP LEDVANCE Dual Selectable Flood Light - 80/100/140W | 3000K/4000K/5000K | Up to 21,000 lm | 120-347V | Bronze
The Sylvania FLOODLT2AS140UNHD8SC2BZP is a LEDVANCE Performance Class Dual Selectable LED floodlight designed for outdoor building, facade, sign, landscape, garden, security, and general area lighting applications. This fixture combines selectable wattage, selectable color temperature, 0-10V dimming, wide flood distribution, and flexible mounting options in one commercial-grade luminaire.
This model provides 80/100/140W selectable wattage, 3000K / 4000K / 5000K selectable CCT, 12,000/15,000/21,000 lumens at 4000K, 120-347V input, NEMA 7H x 7V wide flood distribution, Integrated Photocell, and a bronze finish.
Wattage 80/100/140W Selectable |
Lumens 12,000/15,000/21,000 4000K |
CCT 3000/4000/5000K Selectable |
Voltage 120-347V Input |
Distribution 7H x 7V Wide Flood |
Product Overview
The LEDVANCE Dual Selectable Floodlight gives contractors and facility teams jobsite flexibility by allowing wattage and color temperature selection from one fixture. The fixture is DLC Premium listed, wet-location rated, and designed for efficient outdoor illumination with up to 150 lumens per watt.
For 30W and 60W versions, a 1/2 inch IPS knuckle and trunnion are included. For 140W, 300W, and 470W versions, a slip fitter and trunnion are included. Yoke mounting accessories are sold separately.
Technical Specifications
| Brand | Sylvania / LEDVANCE |
| Item Number | 63862 |
| Ordering Abbreviation | FLOODLT2AS140UNHD8SC2BZP |
| Fixture Type | LED Floodlight Dual Selectable Luminaire |
| Selectable Wattage | 80/100/140W |
| Total Lumens at 4000K | 12,000/15,000/21,000 |
| Efficacy | Up to 150 LPW |
| Input Voltage | 120-347V |
| Dimming | 0-10V Dimmable |
| CRI | >80 |
| Color Temperature | 3000K / 4000K / 5000K Selectable |
| Distribution | NEMA Type 7H x 7V Wide Flood |
| Photocell / Control | Integrated Photocell |
| BUG Rating | B4-U0-G1 |
| DLC Listing | DLC Premium |
| Power Factor | >0.9 |
| THD | <20% |
| Surge Protection | 6kV |
| Rated Life | 100,000 hours L70 at 25°C |
| Operating Temperature | -40°F to +122°F (-40°C to +50°C) |
| Certifications | cULus UL1598, CSA 22.2 No. 250.0, RoHS, FCC, IP65 Wet Location, DLC Premium |
| Mounting Included | Slip fitter and trunnion included |
| Dimensions | 10.95 in L x 2.28 in W x 8.82 in H |
| Weight | 7.1000 lbs |
| Cord Length | 40 in |
| Warranty | 5-Year / NLB Trusted Warranty Program |
| HS Tariff Code | 9405.11.3000 |
Key Features
- Selectable wattage and selectable 3000K / 4000K / 5000K color temperature.
- NEMA 7H x 7V wide flood distribution for broad outdoor coverage.
- 0-10V dimming for compatible controls.
- DLC Premium listing for high-efficiency commercial projects.
- IP65 wet-location rating for outdoor use.
- 6kV surge protection.
- Bronze finish with LEDVANCE dual selectable floodlight design.
Compatible Applications
- Building facade lighting
- Signs and billboard lighting
- Landscape and garden lighting
- Security and perimeter lighting
- Commercial exterior lighting
- Outdoor walkways and general area lighting
Before Ordering Verify
- Exact Item Number: Confirm Sylvania / LEDVANCE 63862 and ordering abbreviation FLOODLT2AS140UNHD8SC2BZP.
- Wattage Range: Confirm the project requires 80/100/140W selectable output.
- Voltage: Confirm building supply is compatible with 120-347V.
- Distribution: Confirm the project requires NEMA 7H x 7V wide flood distribution.
- Photocell Requirement: Confirm whether the installation uses Integrated Photocell.
- Mounting: Confirm included mounting hardware and whether a yoke mount accessory is needed.
Availability & Special Order Policy
Availability: 3-10 Business Days lead time for delivery.
Special Order: No Exchanges or Returns. Please verify item number, wattage, voltage, CCT, mounting, and distribution before ordering.
Safety & Installation Guidelines
- Qualified Installation: Install by qualified personnel following NEC and local electrical codes.
- Disconnect Power: Turn off and lock out power before installation or service.
- Wet Location Use: Maintain all seals, conduit entries, and wiring connections to preserve IP65/wet-location performance.
- Controls: Verify photocell, receptacle, shorting cap, and 0-10V wiring before energizing.
- Aiming: Confirm tilt angle, mounting height, and photometric requirements after installation.
Wholesale & Project Support
ADL Supply supports contractors, facility managers, ESCOs, maintenance departments, and commercial buyers with LEDVANCE/Sylvania floodlight sourcing, project quotes, and replacement identification support.
For volume pricing, availability, or help confirming the correct dual selectable floodlight, contact ADL Supply at 1-800-235-3489.
