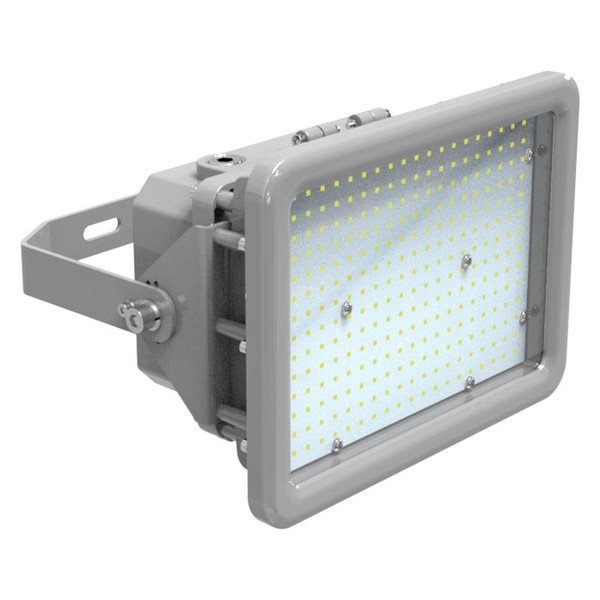

Sylvania HAZFLOODP/200UNVD850/GR LED Hazardous Location Floodlight – 200W | 5000K | 30,000 lm | 120-277V | Gray

The Sylvania HAZFLOODP/200UNVD850/GR is a 200W explosion-proof LED hazardous location floodlight delivering 30,000 lm at 5000K, CRI >80, 120-277V input, and 100,000 hours (L70) rated life. Built for power plants, heavy industrial sites, loading docks, and chemical processing facilities. Certified to UL 844 and CSA 22.2 No. 137 for use in explosive environments.

Quick Specs

• Brand: Sylvania
• Series / Family Name: LED Floodlight Hazardous Location
• Item Number / P/N: 66825
• Order Code: HAZFLOODP/200UNVD850/GR
• Wattage: 200W
• Voltage: 120-277V
• Color Temperature: 5000K (Daylight White)
• CRI: >80
• Initial Lumens: 30,000 lm
• Efficacy: 150 LPW
• Rated Average Life: 100,000 hours (L70)
• Dimmable: Yes – 0-10V
• Power Factor: >0.90
• THD: <20%
• Surge Protection: 10kV
• T-Code: T4A @ 50°C
• Housing: Copper-free aluminum – corrosion resistant
• Lens: Tempered glass
• Finish: Gray
• IP Rating: IP66
• Impact Rating: IK08
• Wiring Access: Tool-free
• Mounting: Yoke bracket for ceiling, wall or pendant; optional slip fitter available
• Operating Temperature: -40°F to +122°F (-40°C to +50°C)
• Dimensions (L x W x H): 15.0" x 9.1" x 8.9"
• Weight: 23.6 lbs
• Hazardous Location Certifications: UL 844 | CSA 22.2 No. 137 | Class I Div 2 Groups A/B/C/D | Class II Div 1 Groups E/F/G | Class II Div 2 Groups F/G | Class III
• Additional Certifications: UL 1598 (Wet Location) | CSA C22.2 No. 250 | UL 1598A (Marine Locations) | RoHS | FCC
• Warranty: 5 Years (NLB Trusted Warranty Program)

Product Overview

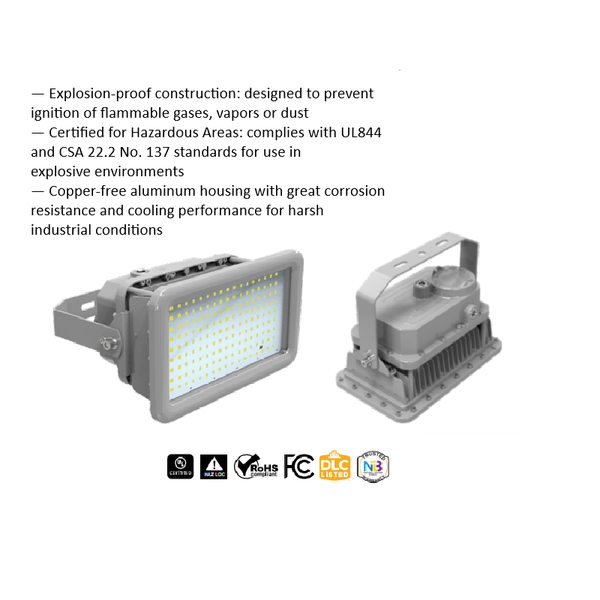

The Sylvania HAZFLOODP/200UNVD850/GR Hazardous Location Floodlight is built to perform in the toughest environments. Its explosion-proof construction prevents ignition of flammable gases, vapors, or dust, while the copper-free aluminum housing provides superior corrosion resistance and thermal management. Tool-free wiring access speeds up installation and maintenance. Certified for Class I Division 2 and Class II Division 1 & 2 hazardous locations.

Applications

• Power plants and utilities – Explosion-proof rated for critical electrical infrastructure.
• Chemical processing facilities – Class I Div 2 certified for flammable gas and vapor environments.
• Heavy industrial sites – IP66, IK08, and corrosion-resistant aluminum housing for harsh conditions.
• Loading docks and warehouses – High lumen output with reliable 0-10V dimming control.
• Marine locations – UL 1598A certified for marine environment use.

Ordering Information

• Brand: Sylvania
• Item Number / P/N: 66825
• Wattage: 200W
• Lumens: 30,000 lm
• CCT: 5000K
• Voltage: 120-277V
• Finish: Gray
• Packaging: Sold individually unless otherwise noted.
• Case quantities and bulk pricing: Contact ADL Supply for volume orders.

Safety and Handling Guidelines

• Disconnect power and verify the area is de-energized before installation or service.
• Installation must be performed by a qualified electrician in accordance with NEC and local codes for hazardous locations.
• Verify hazardous location classification (Class, Division, Group) before specifying this fixture.
• Do not disassemble internal LED or driver components.

Compliance

• UL 844 – Hazardous Locations
• CSA 22.2 No. 137 – Explosive Environments
• Class I Division 2, Group A, B, C, D
• Class II Division 1, Group E, F, G
• Class II Division 2, Group F, G
• Class III
• UL 1598 – Wet Location
• CSA C22.2 No. 250
• UL 1598A – Marine Locations
• RoHS Compliant | FCC Compliant
• T-Code: T4A @ 50°C
