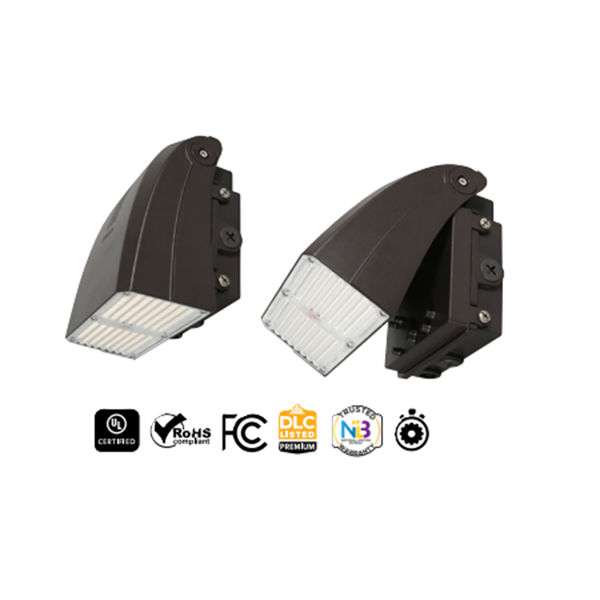

Sylvania SLMWPKC3A/S030UNHD8SC2/WHP LED Slim Wall Pack Dual Selectable – 10/20/30W | 3000K/4000K/5000K | Up to 4,200 lm | 120-347V | White

The Sylvania SLMWPKC3A/S030UNHD8SC2/WHP is a 10/20/30W selectable LED slim wall pack delivering up to 4,200 lm, 3000K/4000K/5000K selectable CCT (set to 4000K at factory), CRI >80, 120-347V input, and 150,000 hours (L70) rated life. Versatile full cutoff design adjustable up to 90° — ideal for schools, warehouses, municipal and commercial buildings.

Quick Specs

• Brand: Sylvania
• Series / Family Name: LED Slim Wall Pack Dual Selectable
• Item Number / P/N: 63840
• Order Code: SLMWPKC3A/S030UNHD8SC2/WHP
• Lamp Type: LED Slim Wall Pack
• Wattage: 10/20/30W (Field Selectable; set to max at factory)
• Voltage: 120-347V
• Color Temperature: 3000K/4000K/5000K (Field Selectable; set to 4000K at factory)
• CRI: >80
• Initial Lumens: 1,400/2,800/4,200 lm (Selectable)
• Rated Average Life: 150,000 hours (L70)
• Distribution: Full Cutoff / Adjustable up to 90°
• BUG Rating: B1-U0-G1
• Dimmable: Yes – 0-10V
• Integrated Photocell: Yes – dusk-to-dawn control
• Power Factor: >90%
• Efficacy: Up to 140 LPW
• THD: <20%
• Surge Protection: 4kV
• Mounting: Exterior wall mount; adjustable up to 90°
• Finish: White
• IP Rating: IP65 (Wet Location Rated)
• Operating Temperature: -40°F to +104°F (-40°C to +40°C)
• Dimensions (L x W x H): 7.3" x 4.9" x 7.8"
• Weight: 6.5 lbs
• Certifications: cULus (Wet Location), DLC 5.1 Premium, RoHS, FCC, IP65
• Warranty: 5 Years (NLB Trusted Warranty Program)

Product Overview

The Sylvania SLMWPKC3A/S030UNHD8SC2/WHP Slim Wall Pack is a versatile, compact fixture that operates as a full cutoff wall pack while also adjusting up to 90° for flexible aiming. Field-selectable wattage (10/20/30W) and CCT (3000K/4000K/5000K) provide installation flexibility for schools, warehouses, municipal buildings, and commercial facilities. With a 150,000-hour L70 rated life and DLC 5.1 Premium listing, it delivers outstanding longevity and qualifies for utility rebates.

Applications

• Schools and municipal buildings – Full cutoff design controls light spillage in sensitive areas.
• Warehouses and commercial buildings – Adjustable tilt for precise aim at loading docks or signage.
• Parking areas and walkways – Selectable CCT and wattage for adaptable coverage.
• Security and perimeter lighting – 0-10V dimmable with optional daylight/motion sensor control.

Ordering Information

• Brand: Sylvania
• Item Number / P/N: 63840
• Wattage / CCT: 10/20/30W / 3000K/4000K/5000K
• Voltage: 120-347V
• Option: Integrated Photocell
• Finish: White
• Packaging: Sold individually unless otherwise noted.
• Case quantities and bulk pricing: Contact ADL Supply for volume orders.

Safety and Handling Guidelines

• Disconnect power before installation or service.
• Install only in suitable outdoor wet-location applications.
• Do not disassemble internal LED or driver components.
• Allow the fixture to cool before handling.

Compliance

• cULus Listed – Wet Location Rated
• DLC 5.1 Premium Listed – qualifies for utility rebates
• RoHS Compliant | FCC Compliant | IP65
• BUG Rating: B1-U0-G1
