Sylvania SLMWPKC3A/S060UNHD8SC2/BLP LED Slim Wall Pack Dual Selectable - 30/45/60W | 3000K / 4000K / 5000K Selectable | Up to 8400 lm | 120-347V | Black | Photocell

Sylvania SLMWPKC3A/S060UNHD8SC2/BLP LED Slim Wall Pack Dual Selectable - 30/45/60W | 3000K / 4000K / 5000K Selectable | Up to 8400 lm | 120-347V | Black | Photocell

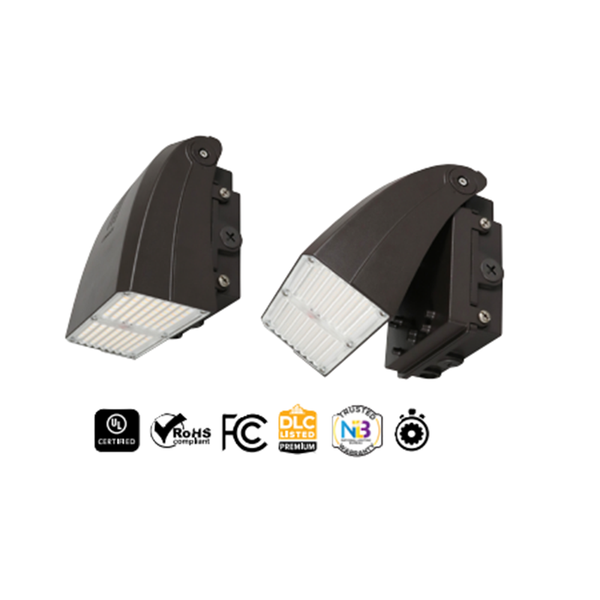

The Sylvania SLMWPKC3A/S060UNHD8SC2/BLP is a LEDVANCE/Sylvania Slim Wall Pack Dual Selectable LED luminaire designed for exterior commercial wall lighting. This fixture offers selectable wattage, selectable color temperature, 0-10V dimming, and an adjustable full-cutoff design that can tilt up to 90 degrees.

This model is configured for 30/45/60W selectable power, 3000K / 4000K / 5000K Selectable, 4200/6300/8400 total fixture lumens, 120-347V, Black finish, and Photocell. It is commonly used for schools, warehouses, municipal buildings, commercial buildings, entrances, walkways, and perimeter lighting.

Product Overview

The SLMWPKC3A Slim Wall Pack is a dual-selectable outdoor LED fixture that can operate as a full-cutoff wall pack or be adjusted up to 90 degrees for controlled wall-mounted illumination. The fixture is factory set to maximum wattage and 4000K, with field-selectable wattage and color temperature options for jobsite flexibility.

With up to 140 lumens per watt, DLC 5.1 Premium listing, IP65 construction, and cULus wet location rating, this wall pack is designed for high-efficiency exterior lighting projects and utility rebate opportunities.

Technical Specifications

Key Features

• Dual-selectable wattage and CCT for field flexibility.
• Factory set to maximum wattage and 4000K color temperature.
• Full-cutoff wall pack design with adjustable tilt up to 90 degrees.
• 0-10V dimming for compatible lighting control systems.
• DLC 5.1 Premium listing supports high-efficiency projects and rebate opportunities.
• Wet location rated and IP65 for exterior commercial installations.
• Photocell option supports automatic lighting control.

Compatible Applications

• Commercial building exterior lighting
• Schools and universities
• Warehouses and distribution centers
• Municipal buildings
• Retail exterior walls, service areas, and entrances
• Walkways, perimeter areas, and security lighting
• Replacement for selected CFL, incandescent, HPS, and metal halide wall packs

Before Ordering Verify

• Exact Item Number: Confirm Sylvania / LEDVANCE 63841 and ordering abbreviation SLMWPKC3A/S060UNHD8SC2/BLP.
• Wattage Range: Confirm the project requires 30/45/60W selectable output.
• Lumen Output: Confirm the required output range is 4200/6300/8400 lumens.
• Voltage: Confirm the building supply is compatible with 120-347V.
• Control Option: Confirm whether the job requires Photocell.
• Finish: Confirm the fixture finish is Black.
• Mounting: Confirm the wall location supports exterior mounting and adjustable tilt clearance.

Safety & Installation Guidelines

• Qualified Installation: Install by qualified personnel following NEC and local electrical codes.
• Disconnect Power: Turn off and lock out power before installation or service.
• Wet Location Use: Ensure all conduit, seals, and junction box connections maintain the fixture rating.
• Control Wiring: Verify 0-10V dimming and sensor/photocell wiring before energizing.
• Field Settings: Confirm wattage and CCT switch positions before final commissioning.
