Sylvania WALPAKCPS035UNHDAMBADJWHP LED Wall Pack Cutoff OPTI-SELECT - 21/28/35W | De-amber | Up to 1,750 lm | 120-347V | White | Photocell | De-Amber Turtle-Friendly

Sylvania WALPAKCPS035UNHDAMBADJWHP LED Wall Pack Cutoff OPTI-SELECT - 21/28/35W | De-amber | Up to 1,750 lm | 120-347V | White | Photocell | De-Amber Turtle-Friendly

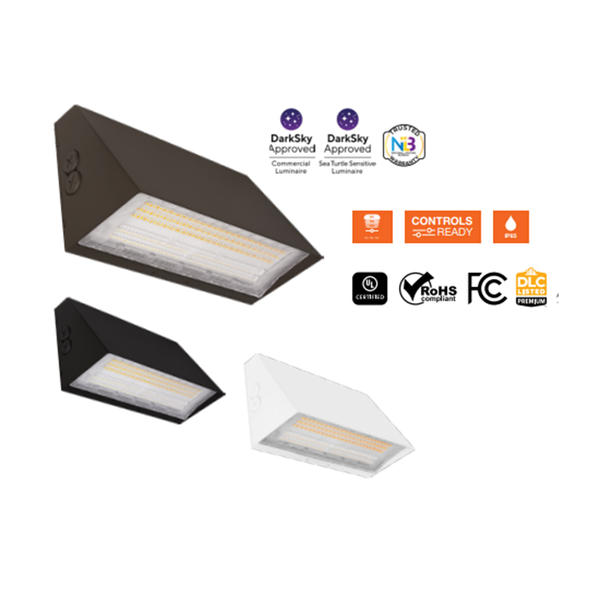

The Sylvania WALPAKCPS035UNHDAMBADJWHP is a LEDVANCE Performance Class Wall Pack Cutoff OPTI-SELECT LED luminaire designed for efficient, adaptive outdoor lighting. The full cutoff design helps reduce uplight, glare, and light pollution, while OPTI-SELECT technology allows field selection between Type II, Type III, and Type IV distributions without changing lenses.

This model provides 21/28/35W selectable wattage, De-amber turtle-friendly light output, 1,050/1,400/1,750 total lumens, 120-347V input, White finish, and Photocell. It is intended for commercial building exteriors, wall-mounted security lighting, walkways, service areas, schools, warehouses, municipal buildings, and retrofit projects.

Product Overview

The WALPAKCPS OPTI-SELECT wall pack is built for jobs that require one fixture family to cover multiple mounting conditions and light distributions. The integrated distribution switch allows the installer to choose Type II, Type III, or Type IV output in the field, helping simplify inventory and reduce ordering mistakes.

The integrated photocell can be disabled in the field. The fixture is also controls-ready for field-installable standalone sensors, and select models include emergency battery backup for emergency lighting requirements.

Technical Specifications

Key Features

• OPTI-SELECT switch-controlled Type II, Type III, and Type IV distributions.
• Selectable wattage and selectable color temperature for field flexibility.
• Full cutoff optical design helps reduce uplight, glare, and light pollution.
• Integrated photocell can be disabled in the field.
• 0-10V dimming for compatible lighting control systems.
• Controls-ready design supports field-installable standalone sensors.
• UV-stabilized polycarbonate lens.
• IP65 wet location rated for outdoor commercial installations.
• DarkSky Approved: Only SC15 warm spectrum and de-amber versions are DarkSky Approved.
• De-Amber / Turtle-Friendly: Designed for coastal applications where reduced impact on sea turtles is required.

Compatible Applications

• Commercial building exterior wall lighting
• Schools, campuses, municipal buildings, and warehouses
• Security, perimeter, entrance, and service-area lighting
• Retail exterior walls and loading areas
• Replacement for selected metal halide and HPS wall packs
• DarkSky-sensitive locations when using approved SC15 or De-Amber versions
• Coastal turtle-friendly applications when using De-Amber versions

Before Ordering Verify

• Exact Item Number: Confirm Sylvania / LEDVANCE 67140 and ordering abbreviation WALPAKCPS035UNHDAMBADJWHP.
• Wattage Range: Confirm the fixture output range is 21/28/35W.
• CCT / Spectrum: Confirm the project requires De-amber.
• Optics: Confirm the job can use adjustable T2/T3/T4 distribution.
• Voltage: Confirm building supply is compatible with 120-347V.
• Finish: Confirm the fixture finish is White.
• Controls: Confirm whether the project requires photocell only, EMBB, or additional sensor accessories.

Safety & Installation Guidelines

• Qualified Installation: Install by qualified personnel following NEC and local electrical codes.
• Disconnect Power: Turn off and lock out power before installation or service.
• Wet Location Use: Maintain all seals, conduit entries, and junction box connections to preserve IP65/wet location performance.
• Field Settings: Confirm wattage, CCT, photocell, and distribution switch settings before final commissioning.
• Sensor Accessories: Use compatible LEDVANCE accessories when adding motion/daylight or LINK control functionality.

Wholesale & Project Support

ADL Supply supports contractors, facility managers, ESCOs, maintenance departments, and commercial buyers with LEDVANCE/Sylvania wall pack sourcing, project quotes, and replacement identification support.

For volume pricing, availability, or help confirming the correct OPTI-SELECT wall pack, contact ADL Supply at 1-800-235-3489.
