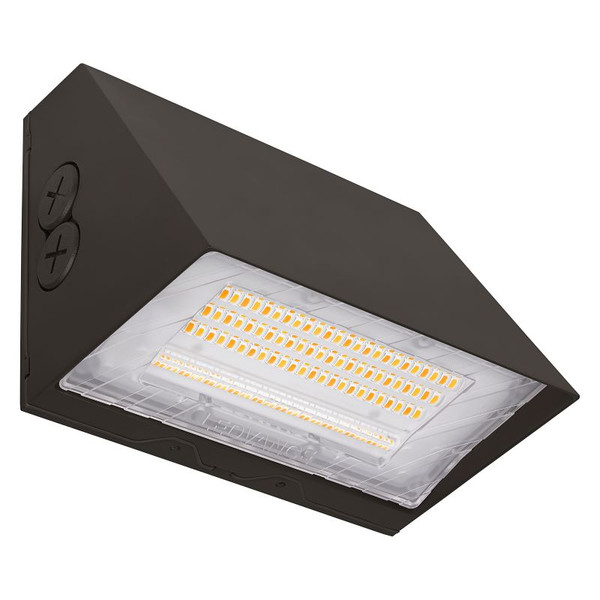

Sylvania WALPAKCPS040UNHD8SC2ADJBLPE LED Cutoff Wall Pack OPTI-SELECT – 25/30/40W | 3000K/4000K/5000K | Up to 6,000 lm | 120-347V | Black

The Sylvania WALPAKCPS040UNHD8SC2ADJBLPE is a 25/30/40W selectable LED cutoff wall pack delivering up to 6,000 lm, 3000K/4000K/5000K selectable CCT, CRI >80, 120-347V input, and 100,000 hours (L70 @ 25°C) rated life. Full cutoff design eliminates uplight to reduce glare and light pollution. OPTI-SELECT T2/T3/T4 distribution adjustable via switch — no lens swap required.

Quick Specs

• Brand: Sylvania
• Series / Family Name: LED Wall Pack Cutoff OPTI-SELECT
• Item Number / P/N: 66976
• Order Code: WALPAKCPS040UNHD8SC2ADJBLPE
• Lamp Type: LED Full Cutoff Wall Pack
• Wattage: 25/30/40W (Field Selectable)
• Voltage: 120-347V
• Color Temperature: 3000K/4000K/5000K (Field Selectable)
• CRI: >80
• Initial Lumens: 3,750/4,500/6,000 lm (Selectable)
• Rated Average Life: 100,000 hours (L70 @ 25°C)
• Distribution: T2/T3/T4 (OPTI-SELECT – adjustable via switch, no lens swap needed)
• Cutoff: Full Cutoff – zero uplight, reduces glare and light pollution
• Dimmable: Yes – 0-10V
• Integrated Photocell: Yes – field-disableable
• Controls Ready: Yes – plug-and-play sensors, no wiring required
• Lens: UV-stabilized polycarbonate
• Power Factor: >0.90
• Efficacy: Up to 150 LPW
• THD: <20%
• Surge Protection: 4kV
• Mounting: Wall mount
• Finish: Black
• IP Rating: IP65 (Wet Location Rated)
• Operating Temperature: -40°F to +122°F (-40°C to +50°C); with EMBB: +32°F to +113°F (0°C to +45°C)
• BUG Rating: B2-U0-G1
• Dimensions (L x W x H): 8.3" x 5.4" x 6.7"
• Weight: 4.0 lbs
• Certifications: cULus Listed (UL1598), DLC Premium, RoHS, FCC, IP65
• Warranty: 5 Years (NLB Trusted Warranty Program)
• Emergency Battery Backup: Included – 3.9W emergency mode, 90 min discharge (LiFePO4)
• Note: Made to Order (MTO) – contact ADL Supply for lead time

Product Overview

The Sylvania WALPAKCPS040UNHD8SC2ADJBLPE Cutoff Wall Pack OPTI-SELECT delivers unmatched precision with its full cutoff design — eliminating uplight to reduce glare and light pollution. OPTI-SELECT technology instantly switches between T2, T3, and T4 distributions via switch with no lens swap required. Combined with field-selectable wattage (25/30/40W) and CCT, integrated photocell (field-disableable), and plug-and-play controls compatibility, it's the ultimate adaptive outdoor wall pack solution.

Applications

• Building perimeters and facades – Full cutoff eliminates unwanted uplight and glare.
• Parking lots and walkways – Selectable T2/T3/T4 distribution for precise coverage.
• Dark-sky compliant sites – 1800/2200/2700K and De-Amber versions available for light pollution control.
• Coastal areas – De-Amber version minimizes impact on sea turtles.

Ordering Information

• Brand: Sylvania
• Item Number / P/N: 66976
• Wattage / CCT: 25/30/40W / 3000K/4000K/5000K
• Voltage: 120-347V
• Distribution: T2/T3/T4 (OPTI-SELECT)
• Finish: Black
• Emergency Battery Backup: Included
• Availability: Made to Order (MTO) – contact ADL Supply for lead time
• Packaging: Sold individually unless otherwise noted.
• Case quantities and bulk pricing: Contact ADL Supply for volume orders.

Safety and Handling Guidelines

• Disconnect power before installation or service.
• Install only in suitable outdoor wet-location applications.
• Do not disassemble internal LED or driver components.
• Allow the fixture to cool before handling.

Compliance

• cULus Listed to UL1598 standards
• DLC Premium Listed – qualifies for utility rebates
• RoHS Compliant | FCC Compliant | IP65 Wet Location Rated
• BUG Rating: B2-U0-G1
