Product Overview

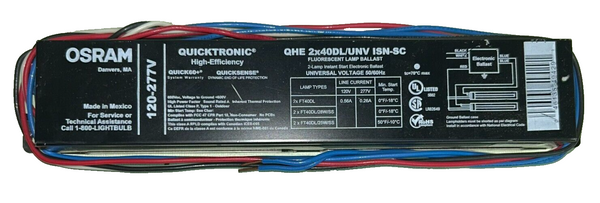

SYLVANIA Quicktronic | 2-Lamp Compact Fluorescent Ballast
The Sylvania Quicktronic QHE (49429) is a high-efficiency, instant-start electronic ballast designed to power up to two 40W compact fluorescent lamps. Featuring a versatile universal voltage input (120-277V) and a compact "small can" design, this ballast is engineered for superior energy savings and reliable performance in commercial environments.
|
Lamp Qty
1 - 2
40W CFL
|
Voltage
120-277V
Universal
|
Ballast Factor
1.00
Normal
|
Design
Small Can
9.47" L
|
Performance and Features
- Energy Efficiency: Meets NEMA Premium program requirements, offering significant energy savings (30-60%) compared to older magnetic ballast systems.
- Versatile Application: Operates 1 or 2 lamps, including FT40DL/25W, FT40DL/28W, and FT40T5 configurations.
- Advanced Reliability: Features Lamp Striation Control (LSC), transient protection, and a Class A sound rating.
- Compact Form: Small can enclosure design allows for streamlined integration into fixtures.
Technical Specifications
- Model Number: QHE2x40DLUNVISNSC
- Circuit Type: Parallel
- Max Case Temp: 70°C
- Start Temp: -20°F (-29°C) minimum
- Dimensions: 9.47" L x 1.69" W x 1.18" H
Installation Note: Install in accordance with the National Electric Code (NEC). Ensure the ballast case is grounded, and lampholders are shorted according to the provided wiring diagram.
