Product Overview

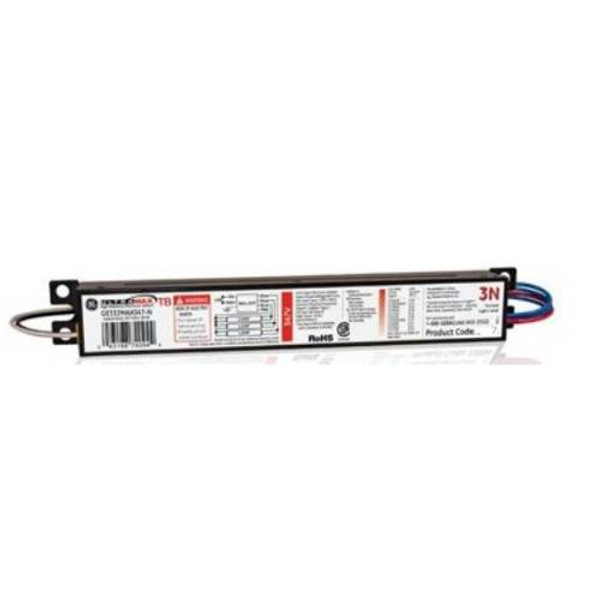

GE 332MAXP-N-Ultra Electronic Ballast
3-Lamp Instant Start T8 Ballast with 0.87 Ballast Factor
Technical Specifications
- Part Number
- #78623
- Voltage Range
- 120-277V AC
- Ballast Factor
- 0.87 Normal
- Dimensions
- 9.5"L x 1.3"W x 1.2"H (241mm x 33mm x 30mm)
- Temperature Range
- -20°F to 158°F (-29°C to 70°C)
- Sound Rating
- Class A (20-24 dB)
Lamp Compatibility
- (1-3) F15T8/F17T8/F25T8/F32T8 Lamps
- ECO and WM Series Lamps
- Legacy F25T12 Lamps
Key Features
- Multi-Voltage Technology (120-277V)
- Active Current Regulation
- Anti-Striation Control System
- 90%+ Energy Efficiency
- UL Type CC Arc Protection
- Low-Profile Aluminum Housing
Certifications & Compliance
- UL Type 1 Outdoor Rated
- RoHS Compliant
- FCC Part 18 Non-Consumer
- ANSI C82.11 Standard
Cross-Compatible Models
- Universal B332IUNVHP-B
- Sylvania QTP3X32T8/UNV ISN-SC
- Philips Advance ICN-3P32-SC
- Howard EP3/32IS/120-277
- Halco Prolume EP332IS/MV/SL
- Keystone KTEB-332LBF-UV-TP-PIC
Installation Notes
- Professional Installation Recommended
- Maintain 70°C Maximum Case Temperature
- Requires Individual Lamp Inverter Modules
- Compatible with Energy Management Systems
Energy Savings
- 25% Reduction vs Magnetic Ballasts
- NEMA Premium Efficiency Certified
- Utility Rebate Eligible
* Specifications subject to change without notice
* Compatible with most T8/T12 fixtures meeting ANSI standards
