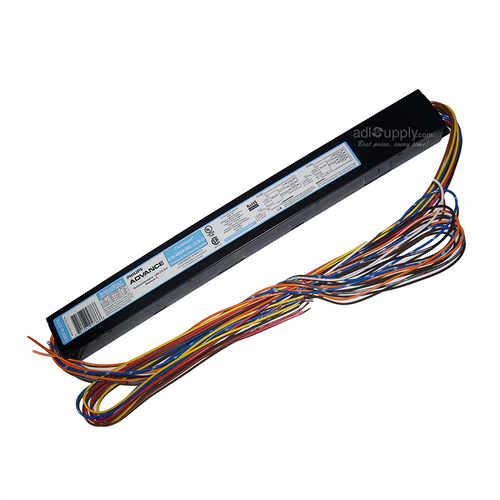

Philips Advance Centium ICN-4S54-90C-2LS Programmed-Start T5HO Ballast | 120-277V | (3-4) F54T5/HO
The Philips Advance Centium ICN-4S54-90C-2LS is a programmed-start electronic ballast for three or four F54T5/HO lamps on any supply voltage from 120V to 277V. It supports high-low switching, so a single ballast can switch from four lamps down to two for lower light levels and energy savings. It is a 90C model, and F54T5/HO lamps start down to -20°F (-29°C).
Voltage 120–277V IntelliVolt | Starting Programmed Start | Lamps 3–4 F54T5/HO | Ballast Factor 1.00 F54T5/HO | Switching 4 → 2 High-low |
Technical Specifications
| Brand / family | Philips Advance Centium |
| Catalog number | ICN-4S54-90C-2LS |
| Ballast type | Electronic fluorescent, programmed start |
| Input voltage | 120–277V IntelliVolt, 50/60 Hz |
| Lamps per ballast | 3 or 4 |
| Operating frequency | 42–52 kHz |
| Power factor | Greater than 0.98 (primary lamps) |
| Total harmonic distortion | 10% max. on primary lamps; see table for lamp-specific values |
| Lamp current crest factor | 1.7 or less |
| Sound rating | Class A |
| Lamp protection | End-of-life (EOL) protection and auto-restrike |
| Minimum starting temperature | -20°F (-29°C) |
| Case dimensions | 16.70 in L (16.34 in mounting) × 1.70 in W × 1.18 in H |
| Wiring diagram | 75 / 75A (see ballast label) |
Electrical Data by Lamp Type
| Lamp configuration | Input power (W) | Ballast factor | Max. THD % | Line current (A) |
|---|---|---|---|---|
| 3 × F54T5/HO (49W) | 168–165 | 1.00 | 10 | 1.52–0.66 |
| 4 × F54T5/HO (49W) | 222–216 | 1.00 | 10 | 2.00–0.86 |
| 3 × F54T5/HO (54W) | 182–179 | 1.00 | 10 | 1.52–0.66 |
| 4 × F54T5/HO (54W) | 240–234 | 1.00 | 10 | 2.00–0.86 |
| 3 × FT36W/2G11 | 133–132 | 1.20 | 10 | 1.11–0.49 |
| 4 × FT36W/2G11 | 176–173 | 1.20 | 10 | 1.47–0.64 |
| 3 × FT50W/2G11/RS | 178–175 | 1.10 | 10 | 1.49–0.65 |
| 4 × FT50W/2G11/RS | 235–230 | 1.10 | 10 | 1.96–0.84 |
Input power, ballast factor, THD and line current are the figures published by Philips Advance for 120–277V operation; ranges in power and current reflect the 120V–277V input range.
Product Overview
The ICN-4S54-90C-2LS is a high-capacity Centium T5HO ballast: it runs three or four lamps from a single ballast and adds high-low switching, so a switch or control can change the fixture from four lamps to two. It operates the lamp types listed below at a ballast factor of 1.00 (F54T5/HO), and programmed start helps extend lamp life in frequently switched applications. Note that this catalog number is not listed for FT55W/2G11 lamps; the ICN-4S54-90C-2LS-G is the version listed for those.
- Programmed start: preheats the lamp electrodes before ignition, which can extend lamp life in applications with frequent switching, such as occupancy sensors, motion detectors and daylight harvesting.
- IntelliVolt multi-voltage input: one ballast operates on any supply voltage from 120V through 277V (50/60 Hz), which simplifies ordering and installation.
- Auto-restrike: restarts lamps after a lamp is replaced without having to reset power.
- Lamp end-of-life (EOL) protection: safely removes power from a lamp when it fails.
- High-frequency operation (42–52 kHz): designed to avoid interference with infrared devices and anti-theft systems and to eliminate visible flicker.
- Energy-saving lamp compatible: Philips Advance T5HO ballasts are compatible with energy-saving lamps.
- High-low switching: the wiring diagrams show a switch that changes the fixture from four lamps to two lamps (or from three lamps to two on the three-lamp diagram) with one ballast.
Compatible Lamps and Applications
This ballast is rated to operate:
- 3 or 4 × F54T5/HO (49W and 54W)
- 3 or 4 × FT36W/2G11 (36/39W 4-pin; PL-L36W, F39BX/RS, FT36DL)
- 3 or 4 × FT50W/2G11/RS (50W 4-pin; PL-L50W, F50BX/RS)
Typical applications: Retail, commercial, institutional and industrial lighting, including warehouses, manufacturing areas, schools, offices, and specialty and department stores.
Before Ordering
- Confirm the lamp type and lamp count match the table above (three or four lamps per ballast).
- Check your supply voltage is between 120V and 277V (50/60 Hz).
- This is a larger case (16.70 in L x 1.70 in W x 1.18 in H); compare it with the space in your fixture.
- If your fixture uses FT55W/2G11 lamps, ask us about ICN-4S54-90C-2LS-G instead.
Safety and Handling
- Turn off power at the breaker before installing or servicing the ballast, and have the installation done by a qualified electrician in accordance with local electrical codes.
- Wire the ballast exactly as shown on its label and in the wiring diagram; ballast leads are color-coded per ANSI C82.11.
- Ground the ballast case to the fixture.
- Use only the lamp types and lamp counts listed for this ballast, and remove a failed lamp promptly.
- The grey/red lead of the switching circuit must be connected to the neutral or to any hot conductor, as shown in the wiring diagram on the ballast.
Compliance
- UL Listed, Class P, Type 1 Outdoor; CSA certified where applicable
- Contains no PCBs
- Class A sound rating
- Complies with ANSI C62.41 Category A transient protection and with ANSI C82.11 where applicable
- Complies with FCC 47 CFR Part 18, Non-Consumer (Class A), for conducted and radiated EMI/RFI
- UL Type CC rated
- Manufactured in an ISO 9002-certified factory
Ordering Information
| ADL SKU | PADBICN4S542LS35-02 |
| Catalog number | ICN-4S54-90C-2LS |
| Brand | Philips Advance |
Questions about compatibility, lamp configurations or replacements? Call ADL Supply at 1-800-235-3489 and we will help you match the right ballast to your fixture.
