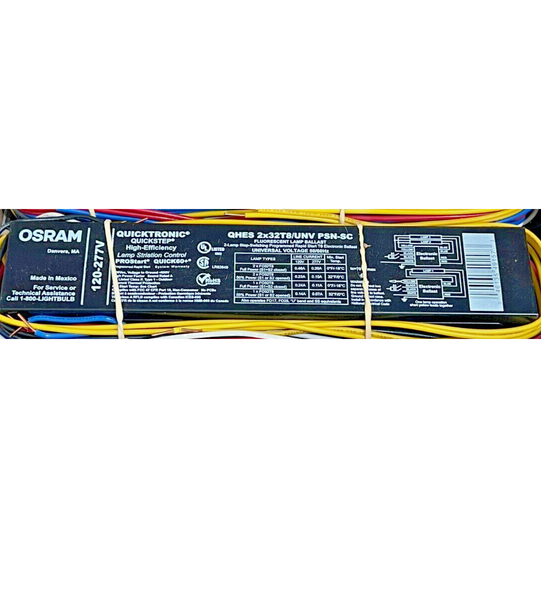

Sylvania QHES2x32T8UNVPSNSC Bi-level 120/277V Prostart Programmed Start Ballast - Energy Efficient Fluorescent Ballast

Product Overview

Professional-grade programmed start ballast with bi-level dimming capability. Operates multiple fluorescent lamp types including T8, U-bend, and energy-saving models. Features dual voltage (120-277V), NEMA Premium compliance, and utility rebate eligibility.

Compatible Lamps

• 1-2 FO17 24" Fluorescent Lamps
• 1-2 FO25 36" Fluorescent Lamps
• 1-2 FO32/25W 48" Energy Saving Lamps
• 2 FO30/SS 48" Advantage Lamps
• 1-2 FBO Series U-Bend Lamps
• 1 FO40 60" Fluorescent T8 Lamp
• Ballast Factor: 0.87

Key Features

• Dual Voltage: 120-277V 50/60Hz
• 70°C Max Case Temperature
• UL Listed Class P, Type 1 Outdoor
• Class A Sound Rating
• Meets NEMA Premium Requirements
• 30-60% Energy Savings vs Magnetic Systems
• Compact Dimensions: 9.47"L x 1.69"W x 1.18"H
• Operating Temp: -20°F to 130°F (-29°C to 54°C)

Certifications & Compliance

• CSA Certified
• UL 935 Compliant
• FCC Part 18 Non-Consumer
• ANSI C82.11 Compliant
• PCB-Free Design
