HALCO 25418 TruBlu Wireless Sensor Controller | PIR + Daylight | 0-10V | PSC-JAV-I-11H-BLE-SR-BK

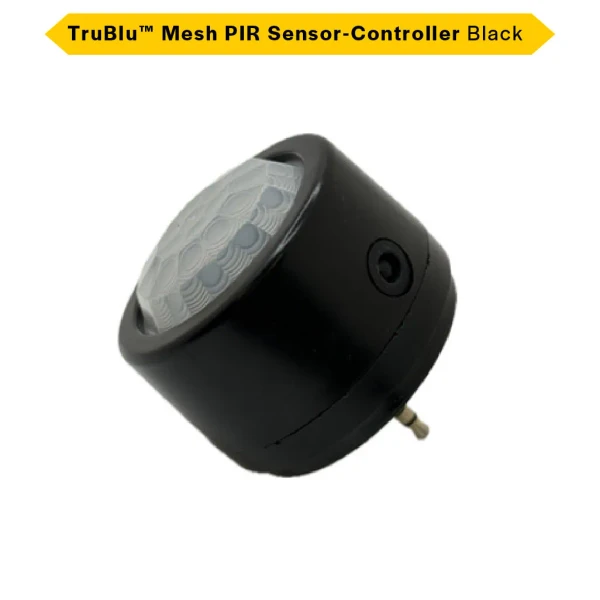

PSC-JAV-I-11H-BLE-SR-BK is a TruBlu™ Mesh passive infrared sensor-controller designed for high bay and low bay fixture applications. This 1-channel wireless controller combines PIR motion sensing, an integral photocell, Bluetooth® Mesh wireless control, and 0–10V dimming in a compact fixture-mounted design powered by 12–24VDC.

Product Overview

This Halco TruBlu™ Mesh passive infrared sensor-controller is built for buyers who need wireless high-bay or low-bay lighting control with occupancy sensing, daylight response, and 0–10V dimming in one compact fixture-mounted device. It uses Bluetooth® NLC certified Bluetooth Mesh technology for wireless control of luminaires without hardwired control connections.

• 1-channel PIR sensor-controller with integral photocell.
• Bluetooth® NLC Certified for true multi-vendor interoperability.
• Wireless Bluetooth Mesh technology for fixture-based lighting control.
• Designed for high bay mounting heights up to 40 ft (12.2 m).
• Supports high-end trim, zoning, and continuous dimming.
• Quick connector and 3.5mm audio jack base for easier fixture integration.
• Suitable for indoor and outdoor applications within rated operating temperature range.

Technical Specifications

• Brand: Halco
• Series: TruBlu™ Mesh Passive Infrared Sensor-Controller
• Model: PSC-JAV-I-11H-BLE-SR-BK
• Product Code: 25418
• SKU: HAL25418
• Product Type: Wireless Sensor-Controller
• Sensor Type: Passive Infrared (PIR) + integral photocell
• Channel: 1-channel
• Input Voltage: 12–24 VDC
• Current Consumption: 20 mA max
• Dimming Output: 0–10VDC
• Mounting: Fixture mount via 3.5mm audio jack receptacle
• Mounting Height: 20–40 ft (6.1–12.2 m)
• Maximum Sensor Range: 80 ft (24.4 m) diameter
• Maximum Bluetooth Range: 100 ft (30.4 m)
• Operating Temperature: -20°C to 45°C
• Finish: Black
• Certification: Bluetooth® NLC Certified
• Control Platform: Configurable via TruBlu™ web portal or iOS mobile app
• Dimensions: 2-5/16 in x 1-9/16 in with approx. 2-1/16 in diameter face

Operation / Configuration

• Configured through the TruBlu™ web portal or iOS mobile app.
• App supports initial setup and ongoing parameter adjustments.
• Optional TruBlu™ Gateway enables energy monitoring and demand response.
• Integral photosensor enables ambient light-based control.
• Designed for wireless dimming and flexible luminaire control through Bluetooth Mesh.

Before You Order

• Verify this high-bay PIR sensor-controller is the correct fixture-mounted control type for your application.
• Confirm your fixture supports audio-jack based controller mounting.
• Requires 12–24VDC input power.
• Verify your driver supports 0–10V dimming.
• Confirm the mounting height and coverage pattern are suitable for your space.
• Bluetooth range depends on fixture integration, surrounding environment, and installation conditions.
• Select the correct finish before ordering: Black.

Additional Information

This controller is designed for TruBlu™ Mesh networked lighting systems using Bluetooth® Mesh technology. It combines occupancy sensing, photocell functionality, wireless commissioning, and dimming control into a compact fixture-integrated format intended to simplify high-bay and low-bay installations.
