Sylvania 20314 CF13DS/E/827 13W 2700K 2GX7 CFL

Product Overview

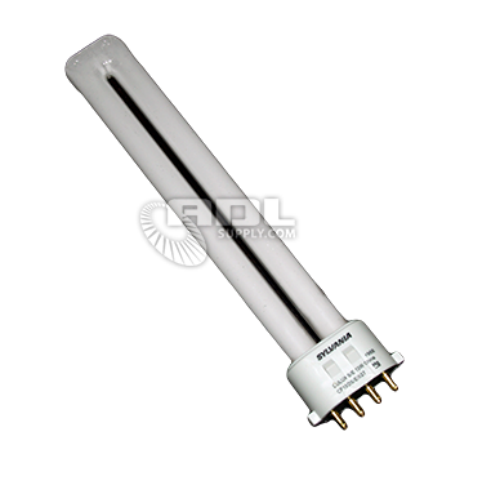

Sylvania 20314 CF13DS/E/827 – 13W DULUX® S/E 4-Pin CFL | 2700K | 800 Lumens | 2GX7

The Sylvania 20314 CF13DS/E/827 is a 13-watt DULUX® S/E single-twin-tube 4-pin compact fluorescent lamp with a 2GX7 base. It produces 800 initial lumens at 2700K with a CRI of 82 and carries an average rated life of 10,000 hours. Designed for dimming and electronic ballast operation. Before ordering, verify the exact item number, wattage, base, ballast compatibility, color temperature, and physical dimensions.

Wattage

13W

DULUX® S/E 4-Pin

Initial Lumens

800

690 Mean lm

Color Temp

2700K

CRI 82

Base

2GX7

4-Pin Plug-In

Rated Life

10,000 hrs

At 3 Hours/Start

Technical Specifications

Brand	Sylvania / LEDVANCE
Item Number	20314
Ordering Abbreviation	CF13DS/E/827
NEMA Generic Designation	CFT13W/2GX7/827
Lamp Family	DULUX® S/E 4-Pin Compact Fluorescent
Wattage	13W
Base Type	2GX7 4-Pin
Bulb	S (T4)
Lumens	800 lm initial; 690 lm mean (at 25°C / 77°F)
Color Temperature	2700K
Color Rendering Index	82
Average Rated Life	10,000 hours, based on 3 hours per start
Maximum Overall Length (MOL)	6.2 in (157 mm)
Package Quantity	50
Minimum Starting Temperature	Function of the ballast; consult the ballast manufacturer

Cross Reference

Sylvania Item Number	20314
Sylvania Ordering Abbreviation	CF13DS/E/827
NEMA Generic Designation	CFT13W/2GX7/827
GE Equivalent	No equivalent listed in the manufacturer catalog
Philips Equivalent	No equivalent listed in the manufacturer catalog

Cross-reference codes are taken from the manufacturer catalog. Confirm wattage, base, color temperature and ballast compatibility before substituting a different brand.

Product Overview

DULUX® S/E lamps are pin-based compact fluorescents. The 4-pin lamps have no internal starter; starting is a function of the ballast. They are designed for electronic ballast operation and are dimmable per the manufacturer catalog. This lamp is not a self-ballasted screw-in CFL.

Compatible Applications

Fixtures and ballasts designed for 13W 2GX7 4-pin compact fluorescent lamps
Electronic and dimming compact-fluorescent ballast systems
Commercial and residential recessed, wall-mounted and surface-mounted fixtures designed for this lamp type

Before Ordering – Verify

Item number: Confirm Sylvania 20314.
Ordering abbreviation: Confirm CF13DS/E/827.
Base: Verify the lampholder is 2GX7 (4-pin).
Wattage: Confirm the fixture ballast is designed for 13W compact fluorescent lamps.
Ballast: 4-pin lamps have no internal starter; use a compatible ballast. Do not substitute a 2-pin preheat lamp.
Color: This version is 2700K, CRI 82.
Dimensions: Confirm the 6.2 in (157 mm) maximum overall length fits the fixture.
Starting temperature: Minimum starting temperature depends on the ballast.

Safety and Handling Guidelines

Disconnect electrical power before installing or removing the lamp.
Use only with a compatible ballast and lampholder.
Do not force the 4-pin base into an incompatible socket.
Handle the glass tubes carefully and do not install cracked or damaged lamps.
Allow the lamp and fixture to cool before servicing.
NEMA notes that T2, T4 and T5 fluorescent and compact fluorescent lamps on high-frequency ballasts may experience an abnormal end-of-life condition (bulb wall cracking or base overheating); NEMA recommends ballasts with an end-of-life shutdown circuit.
This lamp contains mercury. Dispose of used lamps according to local, state and federal regulations; see www.lamprecycle.org.

Compliance

Initial lumens are approximate values after 100 hours of operation.
Average rated life is based on 3-hour burning cycles under specified conditions with a ballast meeting ANSI specifications.
Mercury-containing lamp; follow applicable disposal and recycling regulations.
