Sylvania 20875 CF18DT/E/IN/827/ECO

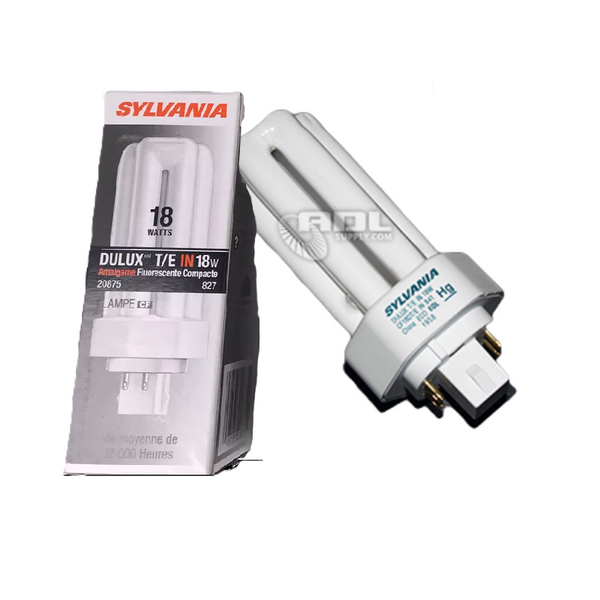

The Sylvania 20875 CF18TEIN/827/ECO Dulux T/E IN is a high-efficiency 18W triple-tube amalgam compact fluorescent lamp engineered for commercial and institutional downlights, wall sconces, task lighting, and specialty display fixtures requiring warm white color quality in a compact 4-pin format. Delivering 1,164 initial lumens of 2700K warm white output at 82 CRI through a GX24q-2 4-pin base, this Ecologic® TCLP-compliant amalgam CFL provides a 12,000-hour rated service life with optimized lumen output at 35°C ambient in the base-up position.

ADL Supply Expert Application & Replacement Guide

The Sylvania CF18TEIN/827/ECO (Order Code 20875) is primarily specified by electrical contractors and facility maintenance teams for 4-pin GX24q-2 downlight trims, wall sconce fixtures, commercial task lighting, and specialty display applications where 2700K warm white is the specified color temperature for hospitality-quality appearance. The GX24q-2 4-pin base is the programmed-start electronic ballast interface — GX24q-series lamps require shunted lampholders where both socket contacts are internally connected. The "IN" designation in the lamp abbreviation indicates amalgam technology — this lamp uses an amalgam dose that stabilizes mercury vapor pressure across a wide ambient temperature range. Rated lumen output of 1,164 lm is achieved at approximately 35°C / 95°F ambient in the base-up position — in cooler ambient conditions or horizontal mounting, actual lumen output will be somewhat lower during warm-up. This lamp is not interchangeable with 2-pin GX24d-2 base lamps; confirm your fixture socket is specifically GX24q-2 (4-pin, round alignment pin) before ordering. This lamp requires a compatible programmed-start electronic ballast — magnetic ballasts and non-GX24q-rated ballasts are not compatible.

Before You Order

Detailed Product Specifications

• Brand: Sylvania (Ledvance)
• Product Line Series: Dulux T/E IN Amalgam Ecologic® Triple-Tube Compact Fluorescent
• Manufacturer Part Number: CF18TEIN/827/ECO
• Sylvania Order Code: 20875
• NEMA Generic: CFM18W/GX24Q/827
• Industry Standard: IEC 60901-3418
• Core Technology: Triple-Tube Amalgam Compact Fluorescent — Ecologic® TCLP Compliant
• Ballast Requirement: Programmed-start electronic ballast for GX24q-2 — magnetic and 2-pin ballasts not compatible
• Wattage: 18W
• Initial Lumens (at 25°C): 1,164 lm (after 100 hours stabilization)
• Mean Lumens (at 25°C): 1,001 lm
• Optimum Lumen Output: At approximately 35°C / 95°F ambient, base-up position
• Color Temperature (CCT): 2700K Warm White (827)
• Color Rendering Index (CRI): 82
• Base Type Configuration: GX24q-2 4-Pin — shunted lampholders required
• Bulb Shape: T4 Triple Tube (3-U shape)
• Maximum Overall Length (MOL): 4.4 inches (111mm)
• Rated Average Lifespan: 12,000 Hours (based on 3-hour burn cycles)
• Amalgam Technology: IN — optimized for elevated ambient temperature performance
• Environmental Rating: Ecologic® — TCLP Compliant, reduced mercury
• Case Quantity: 50 per case
• Mercury Content: Contains mercury — recycle per applicable regulations

Operation, Safety & Mounting Compliance

GX24q-2 vs GX24d-2, Amalgam Performance & NEMA End-of-Life Warning

The GX24q-2 4-pin base is physically distinct from the GX24d-2 2-pin base used on magnetic-start lamps — the 4-pin lamp will not seat in a 2-pin socket and vice versa. GX24q-series programmed-start ballasts provide cathode preheating before arc ignition, requiring shunted lampholders. The amalgam ("IN") formulation uses a mercury amalgam dose that maintains stable mercury vapor pressure across a wider ambient temperature range than non-amalgam lamps — this makes the lamp well-suited for enclosed downlight trims and fixtures where internal temperatures exceed standard ambient ranges. Rated lumen output is at 35°C ambient; cooler starting conditions will produce somewhat lower initial output that stabilizes as the lamp warms to operating temperature. Per NEMA guidance, high-frequency electronic ballasts for T4 compact fluorescent lamps should incorporate an end-of-life shutdown circuit — an abnormal end-of-life failure mode exists where the lamp can overheat at the base, potentially cracking the bulb wall or melting the base/socket. A shutdown circuit safely terminates operation in this event.

Ecologic® Mercury Content & Disposal

This lamp's Ecologic® construction is TCLP compliant, qualifying spent lamps for non-hazardous waste treatment in applicable jurisdictions. Lamp recycling through a certified program remains required in most states regardless of TCLP status. For recycler information visit lamprecycle.org. This product cannot be shipped to CA, CO, HI, ME, MN, OR, RI, or VT.

Industry Cross-Reference Data

• GE Lighting: F18TBX/827/A/4P/ECO (equivalent 18W GX24q-2 4-pin 2700K triple-tube amalgam CFL)
• Philips: PL-T 18W/827/4P/ALTO (equivalent 18W 4-pin GX24q-2 warm white compact fluorescent)
• Osram: Dulux T/E Plus 18W/827 (equivalent 18W GX24q-2 4-pin triple-tube 2700K)
• Legacy Cross-Reference: Direct replacement for 18W GX24q-2 4-pin triple-tube 2700K compact fluorescent lamp positions in commercial downlight, wall sconce, task lighting, and specialty display fixture installations
