Product Overview

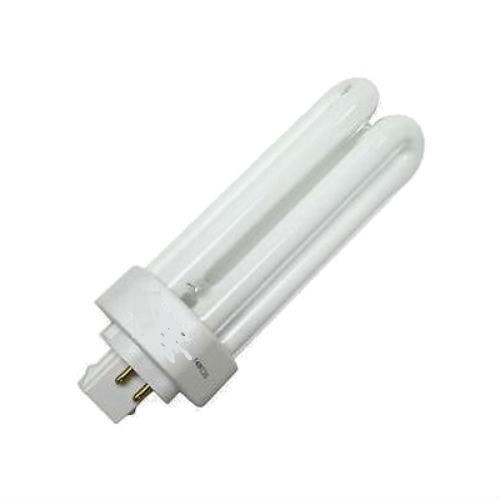

Sylvania CF18DTEIN830ECO Dulux — 18W Triple Tube CFL, 3000K Soft White, GX24q-2 4-Pin Base
The Sylvania CF18DTEIN830ECO Dulux is an 18-watt T4 triple-tube compact fluorescent plug-in lamp from Sylvania, designed for commercial downlights, recessed fixtures, and architectural luminaires using the GX24q-2 4-pin keyed base. With a GX24q-2 base, 3000K soft white color temperature, CRI 82, 1,164 initial lumens, and a rated life of 12,000 hours, this ECOLOGIC TCLP-compliant CFL delivers energy-efficient warm white illumination for commercial and institutional applications. Requires a high-frequency electronic ballast — will not operate on magnetic ballasts or unballasted line voltage. Verify base type and ballast compatibility before ordering.
|
Wattage
18W
Triple Tube CFL
|
Lumens
1,164 lm
Initial Output
|
Color Temp
3000K
Soft White
|
Base
GX24q-2
4-Pin Keyed
|
Rated Life
12,000 hrs
Average Life
|
Technical Specifications
| Brand | Sylvania |
| Series | Dulux ECOLOGIC |
| Model | CF18DTEIN830ECO |
| Lamp Type | Compact Fluorescent — T4 Triple Tube (3U), 4-Pin |
| Wattage | 18W |
| Initial Lumens | 1,164 lm |
| CRI | 82 |
| Color Temperature | 3000K Soft White (830) |
| Base Type | GX24q-2 (4-Pin Keyed) |
| Ballast Requirement | High-frequency electronic ballast — 18W 4-pin |
| Rated Average Life | 12,000 hours |
| Max Overall Length (MOL) | 4.4" (111mm) |
| Standard | IEC 60901-3418 |
| Ecologic Compliance | TCLP compliant — ECOLOGIC low-mercury design |
| Mercury Content | Contains mercury — dispose per local regulations |
Product Overview
The Sylvania CF18DTEIN830ECO is a commercial-grade 18W triple-tube CFL for recessed downlights, wall sconces, and architectural fixtures using GX24q-2 4-pin keyed base lampholders. At 3000K soft white with CRI 82 and 1,164 initial lumens, it delivers warm, quality illumination suited for lobbies, hospitality, retail, and commercial office environments where a softer color temperature is preferred.
The GX24q-2 keyed base is mechanically keyed for 18W lamps and will not seat in GX24q-1 (13W) or GX24q-3 (26W/32W) sockets. This lamp requires a high-frequency electronic ballast and will not operate on magnetic ballasts or line voltage. Always use with ANSI-compliant ballasts and follow NEMA end-of-life shutdown recommendations.
Compatible Ballasts
- GE 71434 GEC218-MVPS-3W
- Philips Advance ICF-2S18-H1-LD
- Sylvania 51823 QTP1/2X18CF/UNV DM
- Universal Triad C218UNVME-000K
Compatible Applications
- Commercial recessed downlights and fixtures — GX24q-2 4-pin lamps for office, hospitality, and institutional recessed lighting.
- Wall sconces and architectural luminaires — Commercial and residential fixtures requiring 18W triple-tube CFL sources.
- Retrofit and maintenance replacement — Direct replacement for existing CF18DT or equivalent 18W 4-pin CFL lamps with GX24q-2 base.
Before Ordering — Verify
- Base Type: Confirm the fixture socket is stamped GX24q-2 — keyed for 18W lamps only. Not compatible with GX24q-1 (13W) or GX24q-3 (26W/32W) sockets.
- Ballast: Confirm the fixture uses a high-frequency electronic ballast rated for 18W 4-pin operation. This lamp will not operate on magnetic ballasts.
- Color Temperature: Confirm 3000K soft white is appropriate for your application.
- Physical Fit: Confirm 4.4" MOL fits within your fixture's lamp cavity.
Safety and Handling Guidelines
- Electronic Ballast Required: Never connect directly to line voltage — immediate lamp failure and electrical hazard will result.
- Mercury Content: Contains mercury. Do not dispose of in regular trash. Recycle through an approved lamp recycling program. Visit lamprecycle.org for local options.
- Allow Cooling: Allow lamps and fixtures to cool before servicing or relamping.
Compliance
- ECOLOGIC design — TCLP compliant, low-mercury.
- Contains mercury — subject to applicable lamp recycling and disposal regulations. This product cannot be shipped to CA, CO, HI, ME, MN, OR, RI, or VT due to state mercury lamp regulations.
Ordering Information
- Brand: Sylvania — Dulux ECOLOGIC
- Model: CF18DTEIN830ECO
- Wattage / CCT: 18W / 3000K Soft White
- Base: GX24q-2 4-Pin
- Packaging: Sold individually.
- Case quantities and bulk pricing: Contact ADL Supply for volume orders.
For wholesale pricing, bulk availability, or help confirming the correct replacement lamp, contact ADL Supply at 1-800-235-3489.
