Sylvania 20560 CF36DF/841 36W 4100K 2G10 CFL

Product Overview

Sylvania 20560 CF36DF/841 – 36W DULUX® F 4-Pin CFL | 4100K | 2800 Lumens | 2G10

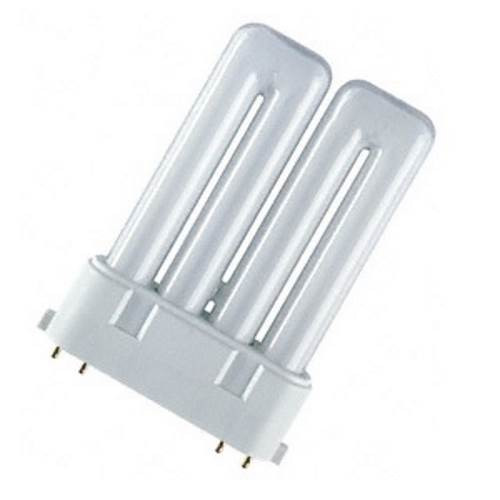

The Sylvania 20560 CF36DF/841 is a 36-watt DULUX® F flat 4-pin compact fluorescent lamp with a 2G10 base. It produces 2800 initial lumens at 4100K with a CRI of 82 and carries an average rated life of 10,000 hours. A flat-profile lamp for 4-pin ballast systems. Before ordering, verify the exact item number, wattage, base, ballast compatibility, color temperature, and physical dimensions.

Wattage

36W

DULUX® F 4-Pin

Initial Lumens

2800

2408 Mean lm

Color Temp

4100K

CRI 82

Base

2G10

4-Pin Plug-In

Rated Life

10,000 hrs

At 3 Hours/Start

Technical Specifications

Brand	Sylvania / LEDVANCE
Item Number	20560
Ordering Abbreviation	CF36DF/841
NEMA Generic Designation	CFM36W/2G10/841
Lamp Family	DULUX® F 4-Pin Compact Fluorescent
Wattage	36W
Base Type	2G10 4-Pin
Bulb	F (T5)
Lumens	2,800 lm initial; 2,408 lm mean (at 25°C / 77°F)
Color Temperature	4100K
Color Rendering Index	82
Average Rated Life	10,000 hours, based on 3 hours per start
Maximum Overall Length (MOL)	8.5 in (217 mm)
Package Quantity	10
Minimum Starting Temperature	Function of the ballast; consult the ballast manufacturer

Cross Reference

Sylvania Item Number	20560
Sylvania Ordering Abbreviation	CF36DF/841
NEMA Generic Designation	CFM36W/2G10/841
GE Equivalent	No equivalent listed in the manufacturer catalog
Philips Equivalent	No equivalent listed in the manufacturer catalog

Cross-reference codes are taken from the manufacturer catalog. Confirm wattage, base, color temperature and ballast compatibility before substituting a different brand.

Product Overview

DULUX® F lamps are pin-based compact fluorescents. The 4-pin lamps have no internal starter; starting is a function of the ballast. They are designed for electronic ballast operation and are dimmable per the manufacturer catalog. This lamp is not a self-ballasted screw-in CFL.

DULUX F lamps can typically be operated on DULUX L and PENTRON HO ballasts of the same or similar wattage; check with the ballast manufacturer to verify lamp and ballast compatibility.

Compatible Applications

Fixtures and ballasts designed for 36W 2G10 4-pin compact fluorescent lamps
Compatible 4-pin compact-fluorescent ballast systems
Commercial and residential recessed, wall-mounted and surface-mounted fixtures designed for this lamp type

Before Ordering – Verify

Item number: Confirm Sylvania 20560.
Ordering abbreviation: Confirm CF36DF/841.
Base: Verify the lampholder is 2G10 (4-pin).
Wattage: Confirm the fixture ballast is designed for 36W compact fluorescent lamps.
Ballast: 4-pin lamps have no internal starter; use a compatible ballast. Do not substitute a 2-pin preheat lamp.
Color: This version is 4100K, CRI 82.
Dimensions: Confirm the 8.5 in (217 mm) maximum overall length fits the fixture.
Starting temperature: Minimum starting temperature depends on the ballast.

Safety and Handling Guidelines

Disconnect electrical power before installing or removing the lamp.
Use only with a compatible ballast and lampholder.
Do not force the 4-pin base into an incompatible socket.
Handle the glass tubes carefully and do not install cracked or damaged lamps.
Allow the lamp and fixture to cool before servicing.
NEMA notes that T2, T4 and T5 fluorescent and compact fluorescent lamps on high-frequency ballasts may experience an abnormal end-of-life condition (bulb wall cracking or base overheating); NEMA recommends ballasts with an end-of-life shutdown circuit.
This lamp contains mercury. Dispose of used lamps according to local, state and federal regulations; see www.lamprecycle.org.

Compliance

Initial lumens are approximate values after 100 hours of operation.
Average rated life is based on 3-hour burning cycles under specified conditions with a ballast meeting ANSI specifications.
Mercury-containing lamp; follow applicable disposal and recycling regulations.
