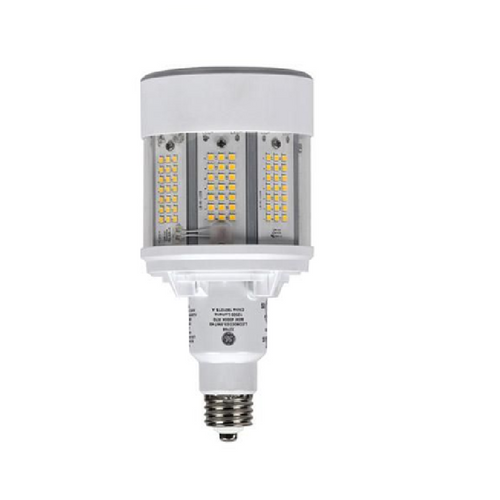

GE 93141934 LED80ED23.5/740/HAZ

GE 93141934 LED80ED23.5/740/HAZ - 80W LED HID Hazardous Location Lamp 4000K 12,000 lm E26 120-277V

The GE LED80ED23.5/740/HAZ is a Type B LED HID retrofit lamp UL-certified for installation in hazardous (classified) locations. At 80W and 12,000 lumens at 4000K neutral white, it directly replaces 150W high-pressure sodium or 250W metal halide HID lamps in petrochemical, food processing, grain handling, and heavy industrial environments. Operates on 120-277V line voltage with the ballast bypassed. 50,000-hour L70 rated life delivers approximately 2.5x the service life of the HID lamps it replaces.

Hazardous Location Certifications

UL-certified as part of a Retrofit Luminaire Conversion Kit for the following hazardous (classified) locations under the National Electrical Code:

• Class I, Division 2, Groups A, B, C, D — flammable gases or vapors not normally present in ignitable concentrations (acetylene, hydrogen, ethylene, hexane, butane, propane, acetone, benzene, gasoline)
• Class II, Division 1, Groups E, F, G — combustible dusts normally present (metal, carbonaceous, agricultural)
• Class II, Division 2, Groups F, G — combustible carbonaceous and miscellaneous dusts not normally present
• Temperature Code: T4 (maximum surface temperature 135°C) at 55°C maximum ambient

Technical Specifications

Product Overview

This is the entry-level 80W variant in the GE LED ED23.5 hazardous-location family. At 12,000 lumens it's a substantial step up from the smaller ED17 lamps in the same line, sized for 150W HPS or 250W MH replacement in larger hazardous-zone fixtures. The 4000K neutral white color renders well for general industrial work areas, processing floors, and applications requiring balanced color discrimination. Includes 6kV surge protection. Note that this 120-277V variant uses an E26 medium base; for fixtures with EX39 mogul sockets, the high-voltage 277-480V sibling SKU 93148146 is mogul-base native and is also DLC qualified.

Compatible UL-Certified Fixtures

This ED23.5 lamp is approved for use as a retrofit in the following UL-listed hazardous location fixtures (verify exact classification coverage per fixture family in the GE installation guide):

• For gas/vapor applications (Class I Div 2 ABCD): GE Lighting Filtr-Gard® H2 Series, Appleton Mercmaster™ II, Appleton Mercmaster™ III, Crouse-Hinds Champ® VMV, Thomas & Betts Hazlux® 3, Hubbell Killark® VM Series, Holophane Petrolux® P3M
• For combustible dust applications (Class II Div 1 EFG; Div 2 FG): GE Lighting Powr-Gard® H9 Series, Appleton Mercmaster™ II, Appleton Mercmaster™ III, Thomas & Betts Hazlux® 3, Hubbell Killark® VM Series, Holophane Petrolux® P3M

Important fixture notes for ED23.5: Crouse-Hinds Champ® VMV is approved for gas/vapor applications but is not approved for dust applications with the ED23.5 lamp form factor. GE Filtr-Gard H2 covers gas only; GE Powr-Gard H9 covers dust only. Refer to the GE installation guide for the complete approved-fixture matrix and required fixture relabeling instructions.

Typical Applications

• Petrochemical plants, refineries, drilling rigs, and oil & gas production facilities
• Food and beverage processing facilities
• Grain elevators, flour mills, and agricultural processing operations
• Chemical manufacturing and storage
• Coal handling and carbonaceous-dust environments
• Mid-bay industrial and outdoor lighting where 150-250W HID was previously installed

Before Ordering – Verify

• Confirm the existing fixture is on the approved UL-certified list above. Use in non-listed fixtures voids hazardous location certification.
• Confirm fixture socket type matches the lamp base — this 120-277V variant ships with E26 medium base per the spec sheet (mogul adapter availability not specified; confirm with manufacturer if EX39 socket is in use)
• Confirm the hazardous classification of the installation zone matches the lamp/fixture combination's certified rating (note: Crouse-Hinds Champ VMV is not approved for dust applications with this lamp)
• Confirm the fixture's HID ballast has been physically bypassed or removed
• Confirm install ambient is between -20°C and 55°C
• Do not connect to phase-cut dimming circuits
• Per UL requirements, the fixture must be relabeled to indicate the new lamp and updated temperature code after retrofit
• If utility rebate eligibility is required, this E26-based SKU is not DLC-qualified; consider the 277-480V mogul-base sibling (93148146) which is DLC qualified

Safety and Handling

Intended for installation in classified hazardous locations. Installation must be performed only by a qualified licensed electrician familiar with NEC Articles 500-506 governing hazardous (classified) location wiring methods. The retrofit luminaire conversion must follow the manufacturer's installation guide, including required fixture relabeling indicating the new lamp and temperature code. Always disconnect power at the breaker and confirm de-energized state before servicing fixtures. Allow lamp cool-down before handling.

Compliance

• Safety Certification: cULus
• Hazardous Rating: Class I Div 2 Groups A,B,C,D; Class II Div 1 Groups E,F,G; Class II Div 2 Groups F,G; T-Code T4
• Location Rating: Damp (UL 1993)
• NSF Rated: No
• Wattage equivalency claims per NEMA LS 20037-2024 (formerly NEMA LL 10-2020)
• Covered under U.S. Patents 10,788,163 and 10,508,776

Ordering Information

Hazardous location lamps require careful fixture-to-lamp matching and proper retrofit labeling. For help confirming fixture compatibility, classification suitability, or for volume pricing on industrial retrofit projects, contact ADL Supply at 1-800-235-3489.
