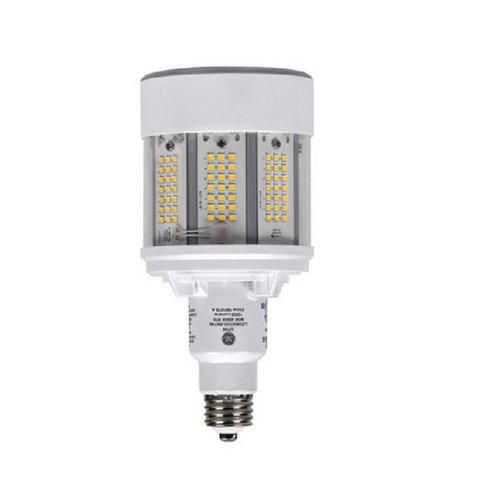

GE 93141935 LED80ED23.5/750/HAZ 80W 5000K Lamp

GE 93141935G LED80ED23.5/750/HAZ - 80W LED HID Hazardous Location Lamp 5000K 12,000 lm E26/EX39 120-277V

The GE LED80ED23.5/750/HAZ is a Type B LED HID retrofit lamp UL-certified for installation in hazardous (classified) locations. At 80W and 12,000 lumens at 5000K daylight white, it directly replaces 150W high-pressure sodium or 250W metal halide HID lamps in petrochemical, food processing, grain handling, and heavy industrial environments. The E26 medium base ships with an EX39 mogul adapter included for use in either socket type. 50,000-hour L70 rated life delivers approximately 2.5x the service life of the HID lamps it replaces.

Hazardous Location Certifications

UL-certified as part of a Retrofit Luminaire Conversion Kit for the following hazardous (classified) locations under the National Electrical Code:

• Class I, Division 2, Groups A, B, C, D — flammable gases or vapors not normally present in ignitable concentrations (acetylene, hydrogen, ethylene, hexane, butane, propane, acetone, benzene, gasoline)
• Class II, Division 1, Groups E, F, G — combustible dusts normally present (metal, carbonaceous, agricultural)
• Class II, Division 2, Groups F, G — combustible carbonaceous and miscellaneous dusts not normally present
• Temperature Code: T4 (maximum surface temperature 135°C) at 55°C maximum ambient

Technical Specifications

Product Overview

This is the 5000K daylight variant of the 120-277V GE LED ED23.5 hazardous-location lamp. At 12,000 lumens it's sized for 150W HPS or 250W MH replacement in larger hazardous-zone fixtures. The 5000K cool daylight color produces a crisp, high-contrast light well-suited to security lighting, outdoor perimeter installs, and indoor industrial areas where maximum visual acuity matters — this is the most commonly specified CCT for security and outdoor applications in classified zones. Includes 6kV surge protection and ships with the EX39 mogul-base adapter. For DLC rebate eligibility, see the 277-480V mogul-only sibling SKU 93148147.

Compatible UL-Certified Fixtures

This ED23.5 lamp is approved for use as a retrofit in the following UL-listed hazardous location fixtures (verify exact classification coverage per fixture family in the GE installation guide):

• For gas/vapor applications (Class I Div 2 ABCD): GE Lighting Filtr-Gard® H2 Series, Appleton Mercmaster™ II, Appleton Mercmaster™ III, Crouse-Hinds Champ® VMV, Thomas & Betts Hazlux® 3, Hubbell Killark® VM Series, Holophane Petrolux® P3M
• For combustible dust applications (Class II Div 1 EFG; Div 2 FG): GE Lighting Powr-Gard® H9 Series, Appleton Mercmaster™ II, Appleton Mercmaster™ III, Thomas & Betts Hazlux® 3, Hubbell Killark® VM Series, Holophane Petrolux® P3M

Important fixture notes for ED23.5: Crouse-Hinds Champ® VMV is approved for gas/vapor applications but is not approved for dust applications with the ED23.5 lamp form factor. GE Filtr-Gard H2 covers gas only; GE Powr-Gard H9 covers dust only. Refer to the GE installation guide for the complete approved-fixture matrix and required fixture relabeling instructions.

Typical Applications

• Petrochemical plants, refineries, drilling rigs, and oil & gas production facilities
• Food and beverage processing facilities
• Grain elevators, flour mills, and agricultural processing operations
• Chemical manufacturing and storage
• Coal handling and carbonaceous-dust environments
• Industrial perimeter and security lighting in classified zones (5000K is the standard CCT specification for outdoor security applications)
• Mid-bay industrial and outdoor lighting where 150-250W HID was previously installed

Before Ordering – Verify

• Confirm the existing fixture is on the approved UL-certified list above. Use in non-listed fixtures voids hazardous location certification.
• Confirm socket type (E26 medium or EX39 mogul); both are supported via the included adapter
• Confirm the hazardous classification of the installation zone matches the lamp/fixture combination's certified rating (note: Crouse-Hinds Champ VMV is not approved for dust applications with this lamp)
• Confirm the fixture's HID ballast has been physically bypassed or removed
• Confirm install ambient is between -20°C and 55°C
• This 5000K variant is not dimmable by any method (note: the 4000K sibling SKU 93141934 indicates Variac dimming is supported — verify current production behavior with GE before specifying for dimming applications)
• Per UL requirements, the fixture must be relabeled to indicate the new lamp and updated temperature code after retrofit
• If utility rebate eligibility is required, this E26-based SKU is not DLC-qualified; consider the 277-480V mogul-base sibling (93148147) which is DLC qualified

Safety and Handling

Intended for installation in classified hazardous locations. Installation must be performed only by a qualified licensed electrician familiar with NEC Articles 500-506 governing hazardous (classified) location wiring methods. The retrofit luminaire conversion must follow the manufacturer's installation guide, including required fixture relabeling indicating the new lamp and temperature code. Always disconnect power at the breaker and confirm de-energized state before servicing fixtures. Allow lamp cool-down before handling.

Compliance

• Safety Certification: cULus
• Hazardous Rating: Class I Div 2 Groups A,B,C,D; Class II Div 1 Groups E,F,G; Class II Div 2 Groups F,G; T-Code T4
• Location Rating: Damp (UL 1993)
• NSF Rated: No
• Wattage equivalency claims per NEMA LS 20037-2024 (formerly NEMA LL 10-2020)
• Covered under U.S. Patents 10,788,163 and 10,508,776

Ordering Information

Hazardous location lamps require careful fixture-to-lamp matching and proper retrofit labeling. For help confirming fixture compatibility, classification suitability, or for volume pricing on industrial retrofit projects, contact ADL Supply at 1-800-235-3489.
