Product Overview

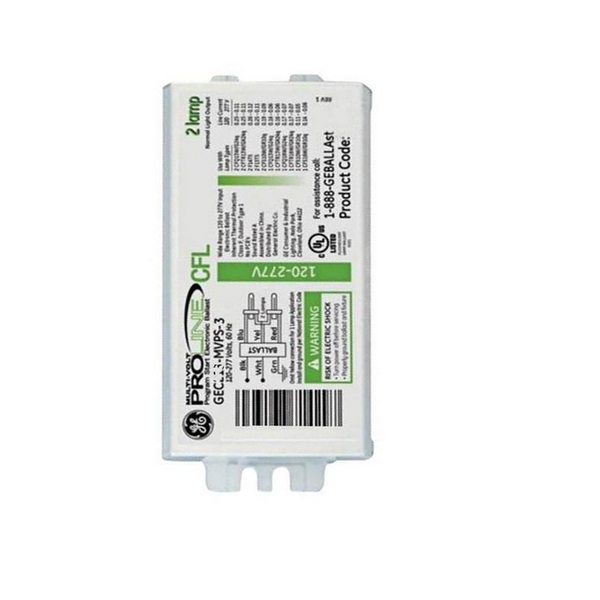

The GE ProLine® GEC242-MVPS-3W (Order Code 63100) Ballast is a commercial-grade, multi-voltage electronic control gear module engineered to operate one or two compact fluorescent lamps across an exceptionally broad compatible load matrix. Designed for 120–277V systems, this ProLine ballast utilizes advanced Programmed Rapid Start (PRS) technology to maximize cathode filament lifespans inside commercial downlights, recessed high-bay fixtures, public wall sconces, and facility maintenance corridors. Outfitted with color-coded poke-in terminals and an active power factor correction circuit, this 3-way mounting kit provides an adaptive single-SKU solution for broad facility upkeep sweeps.
|
Lamp Count
1 or 2
CFL Load Matrix
|
Input Voltage
120–277V
108–305V Buffer
|
Start Type
Prog. Start
Requires Un-Shunted
|
Power Factor
>0.98
Active Correction
|
Kit Type
3-Way
Mounting Hardware
|
ADL Supply Expert Application & Replacement Guide
The GE ProLine GEC242-MVPS-3W control gear is an industry facility footprint standard specified heavily by commercial electrical contractors, real estate engineering crews, and property maintenance divisions. By supporting high-runner multi-lamp configurations across multiple base designations—including quad-tube, triple-tube, and long linear plug-in variations—this adaptive module enables technicians to keep a single, universal stock line on service trucks to address diverse multi-tenant commercial layouts.
Critical Un-Shunted Lampholder Mandate & Parallel Circuit Boundaries: Field electricians executing fixture retrofits must analyze existing wire structures closely prior to termination: this Programmed Rapid Start ballast mandates the use of un-shunted lampholders at all socket points. Un-shunted sockets isolate the electrical contact pathways, allowing the ballast to route a low-voltage heating current through the tube filament cathodes before striking the primary high-voltage gas arc. Swapping a Programmed Start device into old shunted sockets (common in legacy Instant Start layouts where pins are internally bridged) will short-circuit the preheat wire networks, causing immediate ballast overheating, ignition drops, or circuit failure.
The universal 120–277V auto-sensing grid envelope seamlessly operates across standard building voltages including 120V, 208V, 240V, and 277V branch tracks with solid continuity buffers on both ends. This 3-way kit configuration includes integrated poke-in lead connections and multiple hardware brackets to facilitate versatile orientation adjustments inside compact or shallow fixture pan frames.
|
Verify Before Installing
Un-Shunted Sockets Mandatory — Auto-Sensing Voltage Range — No Mercury Content
Please pull your fixture down and confirm lampholders are un-shunted prior to completing wiring. Note that several high-wattage lamp types in the certified matrix below support single-lamp operation only; always match your total bulb count to the verified system limits to prevent automatic ballast cutout sequences.
Mercury and Waste Compliance Notice: This product is a solid-state electronic control ballast and contains 0.0 mg of mercury. It is completely exempt from regional fluorescent shipping regulations and can be legally shipped to all 50 states. Standard commercial electronic waste (e-waste) handling guidelines apply at end-of-life cycles. |
Detailed Product Specifications
- Brand: GE Lighting (Current Lighting Solutions Group / ProLine® Series)
- Product Series Line: ProLine Multi-Voltage Electronic Compact Fluorescent Series
- GE Factory Product Order Code SKU: 63100
- Manufacturer Description Model: GEC242-MVPS-3W
- UPC Barcode Number (GTIN-12): 043168631006
- Core Technology Class: Solid-State High-Frequency Electronic Ballast
- Starting Method Classification: Programmed Rapid Start (PRS / Optimized for occupancy sensors)
- Lamp Wiring Selection Architecture: Parallel Circuit Operation (Lamps run independently)
- Nominal Operational Input Voltage: 120V to 277V (Direct Line Multi-Volt Auto-Sensing)
- Continuous Input Voltage Security Range: 108V Minimum to 305V Maximum Branch Line Tolerances
- Line Current Frequency Threshold: 50 / 60 Hz
- Systemic Ballast Factor (BF): 0.95 Normal Ballast Factor Performance Scale
- Total Harmonic Distortion (THD) Limit: Less than 13% Maximum
- Power Factor Correction Level: Active Correction Network (Greater than 0.98)
- Audible Component Sound Rating: Class A (Whisper Quiet Architectural Standard)
- Minimum Operating Ambient Temperature: -20°F (-29°C / Cold Temperature Storage Performance)
- Enclosure Shell Connection Profile: Color-Coded Mechanical Poke-In Insertion Terminals
- Kit Configuration: 3-Way Adaptable Mounting Kit including metal brackets and hardware packs
Certified System Load Matrix (Lamping Matrix)
This multi-lamp controller is fully certified to strike and manage the following tube configurations safely. Do not mix lamp shapes or differing wattages on the same ballast terminal line:
- (1 or 2 Lamps) CFQ26W/G24q: 26-Watt Quad-Tube CFL with GX24q/G24q 4-pin bases
- (1 or 2 Lamps) CFTR26W/GX24q: 26-Watt Triple-Tube CFL with GX24q 4-pin bases
- (1 or 2 Lamps) CFTR32W/GX24q: 32-Watt Triple-Tube CFL with GX24q 4-pin bases
- (1 or 2 Lamps) FT24W/2G11: 24-Watt PL-L Twin-Tube CFL with 2G11 linear bases
- (1 or 2 Lamps) FT39W/2G11: 39-Watt PL-L Twin-Tube CFL with 2G11 linear bases
- (1 Lamp Only) CFTR42W/GX24q: 42-Watt Triple-Tube CFL with GX24q 4-pin bases
- (1 Lamp Only) CFTR57W/GX24q: 57-Watt Triple-Tube CFL with GX24q 4-pin bases
- (1 Lamp Only) CFTR70W/GX24q: 70-Watt Triple-Tube CFL with GX24q 4-pin bases
- (1 Lamp Only) FT40W/2G11: 40-Watt PL-L Twin-Tube CFL with 2G11 linear bases
Operation, Safety & Mounting Compliance
High-Frequency Electronic Signal Transformation
This electronic assembly converts raw municipal alternating current into high-frequency ballast outputs exceeding 40 kHz, completely eliminating stroboscopic workplace eye fatigue and structural flickering loops common in old magnetic systems. It incorporates an automated active surge insulation barrier that blocks standard utility switching transients and operational spikes from breaking down sensitive internal solid-state board capacitors.
Chassis Physical Structural Footprint Dimensions
- Maximum Case Profile Length: 4.94" Inches (125.5mm actual shell length; 5.0" rounded catalog footprint)
- Chassis Housing Section Width: 2.98" Inches (75.7mm actual casing width)
- Chassis Total Housing Height: 1.26" Inches (32.0mm actual vertical thickness)
- Center Mounting Hole Distance: 4.53" Inches (115.1mm center-to-center spacing)
Commercial Control Gear Equipment Cross-References
This universal 63100 ballast serves as a premium drop-in replacement or electrical equivalent for the following models:
- Sylvania Quicktronic Match: QHE 2x26-42/UNV PSN / High-Efficiency Programmed CFL Ballast Kit
- Philips Advance Match: ICN-2S26-N / Centium Multi-Volt Universal Programmed Start
- Universal Triad Alternative: C2642UNVME / High-Efficiency Programmed Compact Series
Bulk Commercial Lighting Supply & Project Support
ADL Supply handles volume distribution shipments, multi-pack logistics, and contractor project quotes for procurement teams, schools, and warehouse facilities nationwide.
For specialized contractor pricing tiers, job-site pallet deliveries, or comprehensive submittal documentation, contact our support team directly at 1-800-235-3489. We are your commercial supply partners as an authorized wholesale Lighting Distributor In Doral, Florida.
