Product Overview

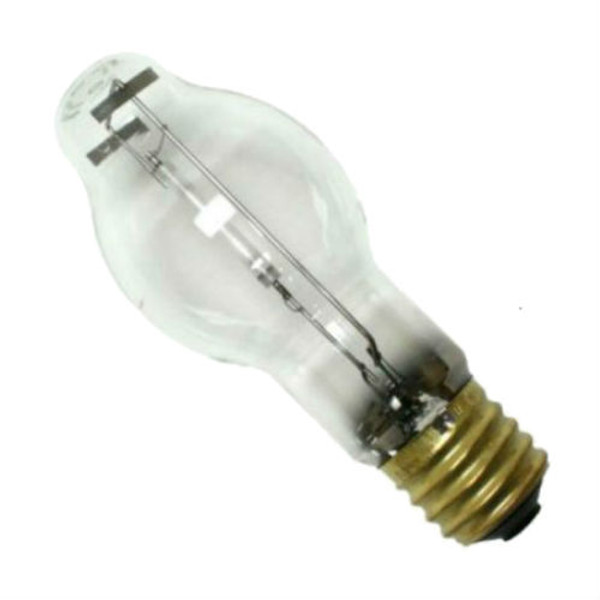

Sylvania 67559 LU100/PLUS/ECO Lumalux Plus Ecologic High Pressure Sodium Lamp - 100W ET23.5, E39 Mogul, 2100K
The Sylvania 67559 LU100/PLUS/ECO is a Sylvania Lumalux Plus Ecologic non-cycling high pressure sodium (HPS) lamp rated at 100W on a E39 Mogul base, with a ET23.5 bulb, Clear finish, and 2100K color temperature. It is rated for 40000 hours average life, burned in the Universal position.
This lamp should be selected by matching the Sylvania product number, wattage, bulb shape, base type, and ANSI code to the existing lamp or fixture being replaced.
|
Wattage
100W
E39 Mogul
|
Color Temp
2100K
CRI 22
|
Lumens
10000
Initial
|
Rated Life
40000
Hours
|
Efficacy
100
Lumens/Watt
|
Product Overview
Sylvania Lumalux high pressure sodium lamps are used across commercial, industrial, and outdoor lighting where high efficacy and long life are priorities. The Ecologic (ECO) designation identifies lamps built with reduced or no added mercury; Standby (SBY) lamps add a dual-arc-tube design for instant restrike after a power interruption; Plus (PLUS) lamps extend rated life further; and Plantastar lamps are tuned for plant growth/horticulture applications.
Technical Specifications
| Brand | Sylvania |
| Sylvania Product Number | 67559 |
| Ordering Abbreviation | LU100/PLUS/ECO |
| Product Family | Lumalux Plus Ecologic |
| Wattage | 100 W |
| Bulb | ET23.5 |
| Base | E39 Mogul |
| ANSI Code / Fixture Requirement | S54/O |
| Bulb Finish | Clear |
| Burning Position | Universal |
| Average Rated Life | 40000 hours |
| Initial Lumens | 10000 |
| Mean Lumens | 7940 |
| CRI | 22 |
| Color Temperature | 2100K |
| Luminous Efficacy | 100 LPW |
| Standard Package Quantity | 20 |
Manufacturer Notes:
- Lamp lumen maintenance is 90% at 30,000 hours.
Key Features
- Lumalux Plus Ecologic construction: non-cycling high pressure sodium with 40000-hour average rated life.
- 2100K color temperature at 100 lumens per watt efficacy.
- Clear bulb finish on a E39 Mogul base.
Compatible Applications
- Outdoor area, roadway, and parking lot lighting
- Industrial high-bay and warehouse lighting
- Security and floodlighting fixtures rated for HPS lamps
- Maintenance replacement where Sylvania product number 67559 is specified
Before Ordering Verify
- Exact Sylvania Product Number: Match 67559 (LU100/PLUS/ECO) to the existing lamp label or fixture documentation.
- ANSI Code: Confirm the fixture/ballast is rated for ANSI code S54/O.
- Base Type: Confirm the fixture socket matches a E39 Mogul base.
- Wattage: Confirm the ballast is rated for 100W.
- Burning Position: Confirm the fixture orientation matches the rated Universal burning position.
Safety & Installation Guidelines
- Qualified Installation: Install and service only with power disconnected, following applicable electrical codes.
- Ballast Match: Operating this lamp on an incompatible ballast can cause premature failure or fixture damage.
- Cooling: Allow the lamp to cool fully before handling or removal.
- Disposal: High pressure sodium lamps may contain trace mercury — dispose of per local regulations (www.lamprecycle.org).
Cross-Reference & Replacement Guide
| Sylvania 67559 | Philips/Signify: 147405 Grainger P/N: 5XN38 GE Equivalent: 14673 (LU100/ECO/NC) |
Wholesale & Project Support
ADL Supply supports contractors, facility managers, maintenance departments, and commercial buyers with Sylvania HPS lamp replacement identification, project quoting, and volume order support.
For volume pricing, availability, or help confirming the correct Sylvania replacement lamp, contact ADL Supply at 1-800-235-3489.
