Product Overview

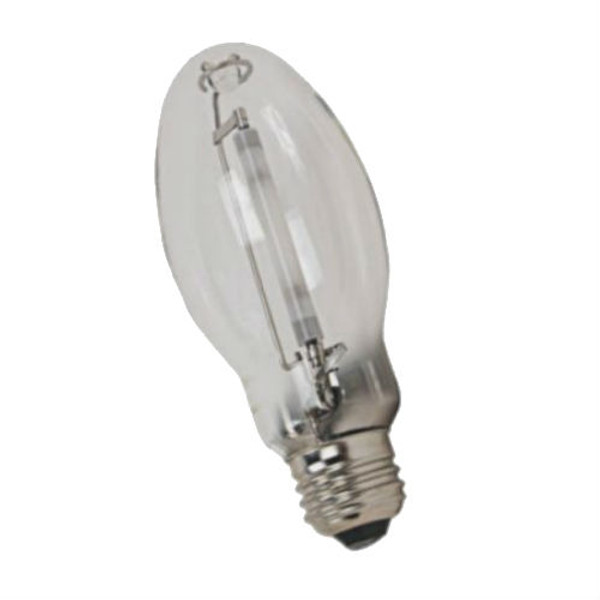

Sylvania 67323 LU100/PLUS/MED Lumalux Plus High Pressure Sodium Lamp - 100W E17, E26 Medium, 2100K, 40000hr Life
The Sylvania 67323 LU100/PLUS/MED is a Sylvania Lumalux Plus non-cycling high pressure sodium (HPS) lamp rated at 100W on a E26 Medium base, with a E17 bulb, Clear finish, and 2100K color temperature. It is rated for 40000 hours average life, burned in the Universal position.
This lamp should be selected by matching the Sylvania product number, wattage, bulb shape, base type, and ANSI code to the existing lamp or fixture being replaced.
Wattage 100W E26 Medium | Color Temp 2100K CRI 22 | Lumens 10000 Initial | Rated Life 40000 Hours | Efficacy 100 Lumens/Watt |
Product Overview
Sylvania Lumalux high pressure sodium lamps are used across commercial, industrial, and outdoor lighting where high efficacy and long life are priorities. The Ecologic (ECO) designation identifies lamps built with reduced or no added mercury; Standby (SBY) lamps add a dual-arc-tube design for instant restrike after a power interruption; Plus (PLUS) lamps extend rated life further; and Plantastar lamps are tuned for plant growth/horticulture applications.
Technical Specifications
| Brand | Sylvania |
| Sylvania Product Number | 67323 |
| Ordering Abbreviation | LU100/PLUS/MED |
| Product Family | Lumalux Plus |
| Wattage | 100 W |
| Bulb | E17 |
| Base | E26 Medium |
| ANSI Code / Fixture Requirement | S54/O |
| Bulb Finish | Clear |
| Burning Position | Universal |
| Average Rated Life | 40000 hours |
| Initial Lumens | 10000 |
| Mean Lumens | 8600 |
| CRI | 22 |
| Color Temperature | 2100K |
| Luminous Efficacy | 100 LPW |
| Standard Package Quantity | 20 |
Manufacturer Notes:
- Lamp lumen maintenance is 90% at 30,000 hours.
Key Features
- Lumalux Plus construction: non-cycling high pressure sodium with 40000-hour average rated life.
- 2100K color temperature at 100 lumens per watt efficacy.
- Clear bulb finish on a E26 Medium base.
Compatible Applications
- Outdoor area, roadway, and parking lot lighting
- Industrial high-bay and warehouse lighting
- Security and floodlighting fixtures rated for HPS lamps
- Maintenance replacement where Sylvania product number 67323 is specified
Before Ordering Verify
- Exact Sylvania Product Number: Match 67323 (LU100/PLUS/MED) to the existing lamp label or fixture documentation.
- ANSI Code: Confirm the fixture/ballast is rated for ANSI code S54/O.
- Base Type: Confirm the fixture socket matches a E26 Medium base.
- Wattage: Confirm the ballast is rated for 100W.
- Burning Position: Confirm the fixture orientation matches the rated Universal burning position.
Safety & Installation Guidelines
- Qualified Installation: Install and service only with power disconnected, following applicable electrical codes.
- Ballast Match: Operating this lamp on an incompatible ballast can cause premature failure or fixture damage.
- Cooling: Allow the lamp to cool fully before handling or removal.
- Disposal: High pressure sodium lamps may contain trace mercury — dispose of per local regulations (www.lamprecycle.org).
Cross-Reference & Replacement Guide
| Sylvania 67323 | Philips/Signify: No Philips/Signify cross-reference on file Grainger P/N: Not listed GE Equivalent: Not listed |
Wholesale & Project Support
ADL Supply supports contractors, facility managers, maintenance departments, and commercial buyers with Sylvania HPS lamp replacement identification, project quoting, and volume order support.
For volume pricing, availability, or help confirming the correct Sylvania replacement lamp, contact ADL Supply at 1-800-235-3489.
