Halco ProLED Select RDL6-10.5-CS-ST 87987 6" 10.5W CCT Selectable Retrofit Downlight Smooth Trim

Halco ProLED Select RDL6-10.5-CS-ST (87987) – 6" 10.5W CCT Selectable Retrofit Downlight, Smooth Trim

The Halco ProLED Select RDL6-10.5-CS-ST (Halco product 87987) is a 6" LED retrofit downlight rated 10.5W, field-selectable across five color temperatures via a dipswitch on the driver housing, and finished with a smooth trim. It installs into most existing 6" recessed cans, is UL Listed for wet locations, and is dimmable down to 5% on compatible dimmers. Confirm can compatibility, CCT setting, and dimmer compatibility before ordering.

Technical Specifications

Product Overview

The ProLED Select Downlight Retrofit Series is built for retrofit downlighting projects where the finished color temperature needs to stay flexible. This 6" 10.5W model delivers 965lm – 1084lm depending on the CCT setting, at 91–103 LPW efficacy and 92+ CRI for accurate color rendering. The smooth trim gives a clean, low-profile finish.

Color temperature is set once at install with a dipswitch on the driver housing, choosing from 2700K, 3000K, 3500K, 4000K, or 5000K – a single SKU covers five finished-color options, reducing the number of downlight variants a contractor needs to stock. The fixture is dimmable down to 5% on compatible dimmers, UL Listed for wet locations, and IC rated for direct contact with insulation.

Compatible Applications

• Retrofit downlighting in existing 4" or 6" recessed cans
• Residential and commercial general lighting
• Kitchens, bathrooms, and other wet-location-rated ceiling applications
• Projects requiring flexible, field-adjustable color temperature
• Dimmed lighting circuits using a compatible ELV/TRIAC dimmer

Before Ordering – Verify

• Confirm can size: this fixture is built for 6" cans. The 4" fixture uses friction clips; the 6" fixture uses a torsion spring and fits most 5"/6" recessed cans.
• Trim style is Smooth Trim. The same wattage/size is also available as Baffle Trim under order code RDL6-10.5-CS-BT – confirm which trim the customer wants.
• CCT is field-selectable, not fixed. The dipswitch must be set to the desired color temperature at install – confirm the installer knows which of the five settings the customer wants before leaving the job site.
• Dimming is limited to compatible dimmers. Halco's tested list includes Lutron MACL-153M, Lutron SCL-153P, Lutron DVCL-153P, Lutron CTCL-153PDH-WH, and others – confirm the dimmer model against Halco's published compatibility list before specifying for a dimmed circuit.
• Delivered lumens and efficacy vary by CCT setting – use the per-CCT lumen table in Ordering Information for the exact output at the selected color temperature, not just the range.
• An E26 adaptor is included in the box for screw-base retrofit applications.

Safety and Handling Guidelines

• De-energize the circuit before installing or servicing the fixture.
• Set the CCT dipswitch before final installation; the driver housing may not be easily accessible once the fixture is mounted in the can.
• IC rated for direct contact with insulation, but confirm local code requirements for the specific installation.
• UL Wet Location rated – confirm the specific installation location (e.g. shower, exterior soffit) meets the wet-location listing requirements.
• Use only with a dimmer confirmed compatible per Halco's published dimmer compatibility list.

Compliance

• Listings: ETL Listed, Energy Star Certified, IC Rated, UL Wet Location Rated, Title 20 Compliant, Title 24 Compliant, JA-8 Compliant, TAA Compliant.
• UL Wet Location Rated and IC Rated.
• Title 20 and Title 24 compliant for use in California.
• JA-8 compliant.
• TAA Compliant.
• All specifications are subject to change by the manufacturer; the current Halco published specification governs.

Ordering Information

• Product code: RDL6-10.5-CS-ST  |  Halco product number: 87987  |  ADL Supply SKU: HAL87987
• Configuration: 6", 10.5W, Smooth Trim, CCT selectable, 120VAC.
• Delivered lumens by CCT setting: 2700K 965lm; 3000K 1017lm; 3500K 1069lm; 4000K 1084lm; 5000K 1053lm.
• Energy Star Product ID: 3554913.
• Also available: RDL6-10.5-CS-BT (Baffle Trim, same size/wattage).
• Confirmed compatible dimmers (1/4/8/10-fixture loads): Lutron MACL-153M, Lutron SCL-153P, Lutron DVCL-153P, Lutron CTCL-153PDH-WH, Lutron TGCL-153PH-WH, Lutron DVWCL-153PH-WH, Legrand RHCL453PTC, Legrand DCL453PTCCCV6, Legrand HCL453PTCCCV6, Leviton Cat. No. 6674, Leviton R50-IPLO6-10M.

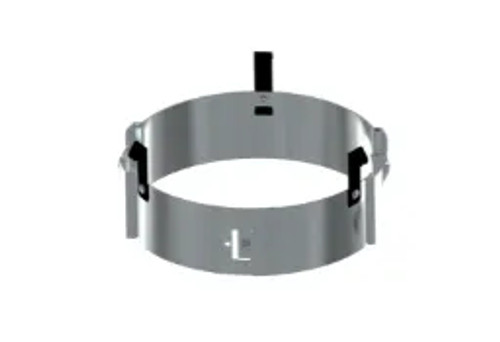

• Accessories: replaceable trims (RDL4-RT / RDL6-RT in Black, Brushed Nickel, or Bronze, baffle or smooth), RDL6-RB friction installation band, RDL4-GR / RDL6-GR goof rings.
• Warranty: 5-year limited warranty (Halco).

For wholesale pricing, bulk availability, or help confirming the correct replacement lamp, contact ADL Supply at 1-800-235-3489.
