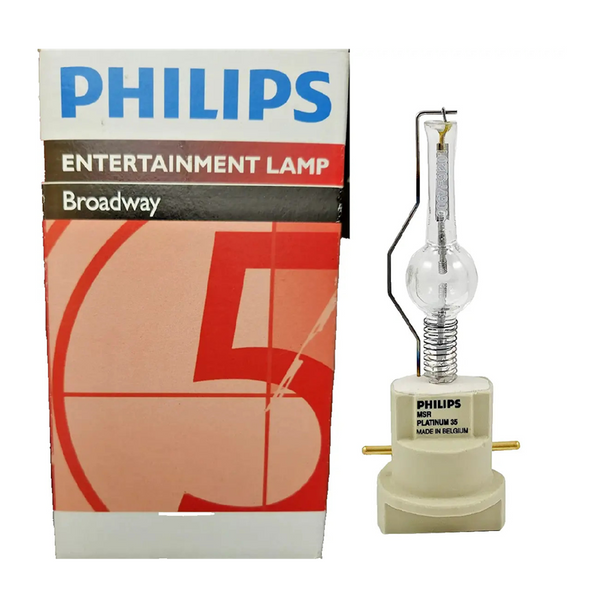

Philips 245977 MSR Platinum 35 (928190905114)

Philips MSR Platinum 35 1CT – 773W Short Arc Metal Halide | 53,300 lm | 8500K | 73 CRI | PGJX36 | 1,000 Hours | Professional Touring & Stage

The Philips MSR Platinum 35 1CT (order code 928190905114) is a 773W professional short arc metal halide lamp from the Philips MSR Platinum Touring/Stage series, delivering 53,300 lumens at 8500K with 73 CRI and a 3.0mm arc length on a PGJX36 base. It is designed for next-generation compact moving head and beam fixtures used in concert touring, theatrical production, and large-scale event lighting. The lamp is dimmable, operates in any position (Universal), and has a 1,000-hour rated life (L50). This lamp operates under extreme internal pressure, emits UV radiation, and contains mercury. Please verify fixture and ballast compatibility before ordering.

Technical Specifications

Product Overview

The Philips MSR Platinum 35 is a 773W professional short arc metal halide lamp engineered for the latest generation of compact, high-output moving head beam and spot fixtures used in concert touring, theatrical production, and large-scale event lighting. The exceptionally short 3.0mm arc produces a near-point source that enables tight beam control, sharp gobo projection, and high-contrast shadow definition in compact fixture designs — a critical capability for smaller, lighter moving heads where optical precision is constrained by fixture size.

At 53,300 lumens, 8500K, and 73 CRI, the MSR Platinum 35 delivers an extremely high-intensity cool daylight output suited to professional stage beam effects and wash lighting. The 8500K color temperature is significantly cooler than standard 6000K daylight lamps, producing a crisp, blue-white beam that reads distinctly from warm follow spots or tungsten fills — this is an intentional design characteristic, not a standard daylight match. Fixture color correction (via CMY or color wheel) is typically used to adjust the output as needed for specific lighting designs.

The PGJX36 base is a Philips-specific connector for the Platinum series and is not interchangeable with other MSR base types. The lamp requires a dedicated electronic ballast and ignitor designed for the MSR Platinum 35 platform — it cannot be operated on standard MSR 700 or MSR 575 ballasts. With a 1,000-hour L50 rated life, universal burn position, and dimmable operation, the lamp is built for the demands of professional touring and repertory production schedules.

Compatible Applications

• Professional moving head beam and spot fixtures designed for the MSR Platinum 35 platform
• Concert touring and live event stage lighting
• Theatrical production and repertory stage systems
• Large-scale architectural and display event lighting
• Any professional entertainment fixture specifically rated for MSR Platinum 35 1CT lamps

Before Ordering – Verify

• Fixture compatibility: The MSR Platinum 35 is designed for specific next-generation fixture platforms; it is not a drop-in replacement for MSR 575 HR, MSR 700/2, or other MSR family lamps. Confirm the fixture manufacturer’s lamp specification before ordering.
• Base type: PGJX36. This is a Philips-specific base connector. Confirm the fixture socket matches before ordering; PGJX36 is not compatible with G22, G38, GX9.5, GY9.5, or other professional entertainment lamp bases.
• CCT: 8500K. This lamp produces a cool daylight / blue-white output significantly cooler than standard 6000K daylight sources. This is the designed operating point, not a manufacturing variance. Fixture CMY or color wheel correction is standard practice for adjusting the output temperature on stage.
• CRI: 73. This is adequate for stage beam and wash effects but may not meet color rendering requirements for film/TV camera-critical applications where 85+ CRI is typically specified. Confirm the CRI meets the production’s requirements before specifying.
• Power consumption: 773W. Confirm the fixture’s internal ballast and power supply are rated for this exact lamp; do not substitute into fixtures designed for 575W or 700W MSR lamps.

Safety and Handling Guidelines

• This lamp contains mercury; do not dispose of in municipal solid waste — recycle per applicable regulations. Per Philips datasheet: if a lamp breaks, ventilate the room for 30 minutes, remove parts with gloves, place in a sealed plastic bag, and take to local waste facilities. Do not use a vacuum cleaner.
• This lamp operates under extreme internal pressure and emits high levels of UV radiation; it must be operated exclusively in fully enclosed professional fixtures with UV-shielding glass
• Do not touch the quartz envelope with bare skin; handle by the base using clean cotton gloves. Clean with denatured alcohol if contact occurs before installation.
• Allow the fixture to cool adequately before relamping; the lamp and fixture components reach extreme temperatures during operation
• Confirm the fixture’s cooling system is fully operational before energizing; the lamp requires adequate forced-air cooling to achieve rated life

Compliance

• CE Mark: Yes (Philips/Signify)
• Contains mercury — subject to federal and state lamp disposal and recycling regulations
• For professional entertainment use only — not for general commercial or residential lighting

Ordering Information

• Order Product Name: MSR Platinum 35 1CT
• Order Code: 928190905114
• Full Product Code: 871829112006300
• EAN/UPC: 8718291120063
• Pack Quantity: 1 per pack; 16 packs per outer box

For wholesale pricing, bulk availability, or help confirming the correct replacement lamp, contact ADL Supply at 1-800-235-3489.
