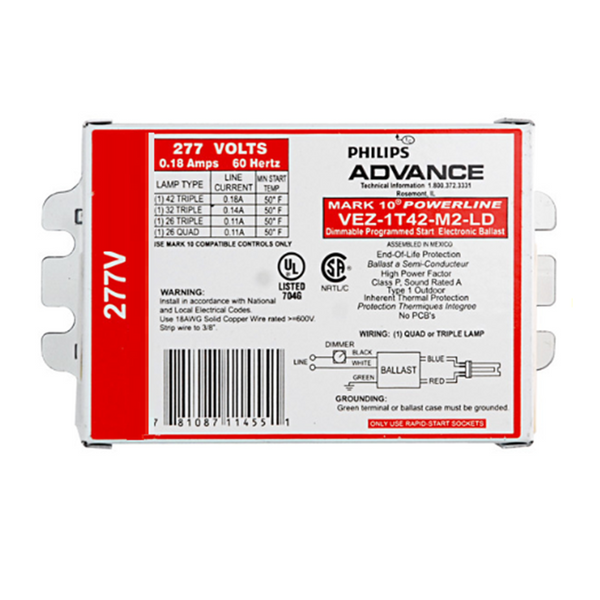

Advance VEZ-1T42-M2-LD – Mark 10 Powerline Dimming Ballast for (1) CFQ26W/G24Q1 CFL | 277V | 3%-100% Dimming | Programmed Start | Outdoor Rated

3% to 100% phase-cut dimming with 98% power factor and programmed start – a high-performance electronic ballast for (1) 26W–42W CFL lamp, featuring Mark 10 Powerline compatibility, outdoor rating, and Mark 10 family integration.

Quick Specs

• Brand: Advance (Signify)
• MPN (Part No.): VEZ-1T42-M2-LD
• UPC: 781087028100
• Family: Mark 10 Powerline
• Ballast Type: Electronic Fluorescent – Phase-Cut Dimming (Powerline)
• Input Voltage: 277V (120-277V compatible, 60Hz)
• Lamp Compatibility: (1) CFQ26W/G24Q1, CFTR26W/GX24Q1, CFTR32W/GX24Q1, CFTR42W/GX24Q1
• Wattage: 26W–42W (depending on lamp)
• Dimming Range: 3% to 100% (architectural dimming)
• Dimming Technology: Mark 10 Powerline (phase-cut dimmer compatible)
• Start Method: Programmed Start
• Ballast Factor: 1.0
• Power Factor: 98% (minimum at full output)
• Total Harmonic Distortion (THD): <10%
• Lamp Current Crest Factor: ≤1.6
• Sound Rating: Class A (quietest)
• Minimum Starting Temperature: 50°F (10°C)
• Maximum Case Temperature: 158°F (70°C)
• Dimensions (L x W x H): 4.98 in x 3.00 in x 1.29 in
• Mounting Length: 4.60 in (117 mm)
• Ratings: UL / cUL, Class P, Type 1 Outdoor, CSA
• Environment: Suitable for outdoor use (Type 1 Outdoor)

Product Overview

The Advance VEZ-1T42-M2-LD is a Mark 10 Powerline electronic dimming ballast designed for (1) compact fluorescent lamp (CFL) with G24Q or GX24Q bases. It operates on 277V (120-277V capable) with programmed start technology, providing reliable ignition and extended lamp life. The ballast features phase-cut dimming from 100% down to 3% light output when used with a compatible Mark 10 Powerline dimmer.

With a ballast factor of 1.0, the VEZ-1T42-M2-LD delivers full nominal lamp lumens. It achieves >98% power factor and <10% THD, meeting ANSI C82.11 standards and FCC Part 18 Class A EMI limits. The Type 1 Outdoor rating allows installation in damp or outdoor locations when properly enclosed.

Why Choose This Product

• 3% to 100% smooth dimming: Architectural-grade phase-cut dimming for precise light level control with Mark 10 Powerline dimmers.
• Programmed start: Extends lamp life by preheating cathodes – ideal for applications with frequent switching.
• High power factor (>98%): Maximizes energy efficiency and meets utility rebate requirements.
• Low THD (<10%): Minimizes harmonic distortion in building electrical systems.
• Outdoor rated (Type 1 Outdoor): Suitable for damp/wet locations when used in approved fixtures.
• End-of-lamp-life shutdown: Automatically detects failed lamps and shuts down for safety.
• Mark 10 Powerline family: Seamless integration with compatible phase-cut dimming systems.

Technical Specifications

Dimensions

Applications

• Commercial lighting – offices, retail stores, conference rooms
• Hospitality – lobbies, restaurants, hotel rooms
• Outdoor rated fixtures – signage, canopy lights, building exteriors (with proper enclosure)
• Architectural dimming applications requiring smooth phase-cut control
• Energy retrofit projects – replacing static ballasts with dimming capability

Compatibility & Replacement

Fixture type: This ballast is designed for 1-lamp compact fluorescent fixtures using G24Q (4-pin) or GX24Q bases. Compatible with CFQ26W, CFTR26W, CFTR32W, and CFTR42W lamps.

Dimming compatibility: Mark 10 Powerline ballasts require a compatible phase-cut dimmer (forward or reverse phase). Use with Advance Mark 10 or Mark X Powerline dimmers for optimal performance. The ballast ignites lamps at any dimming level without needing to start at maximum output.

Outdoor use: Type 1 Outdoor rating allows installation in damp/wet locations when used in a UL-listed weatherproof enclosure.

Before ordering, confirm:

• Lamp type: Verify your fixture uses one of the listed CFL lamps (26W–42W, G24Q/GX24Q base).
• Input voltage: Confirm supply voltage is 277V (or 120V – ballast is auto-ranging).
• Dimming system: Ensure your dimmer is Mark 10 Powerline compatible (phase-cut).
• Physical dimensions: Verify fixture has adequate space for 4.98" L x 3.00" W x 1.29" H.
• Temperature rating: Maximum case temperature 158°F (70°C).
• Minimum starting temperature: 50°F (10°C).

Ordering Information

• Brand: Advance (Signify)
• MPN (Part No.): VEZ-1T42-M2-LD
• UPC: 781087028100
• Family: Mark 10 Powerline
• Description: Electronic dimming ballast – (1) 26W-42W CFL, 277V, 3-100% phase-cut dimming, programmed start, outdoor rated
• Case quantities and bulk pricing available – contact ADL Supply for volume orders.

Compliance & Certifications

• UL / cUL listed (UL 935) – Class P, Type 1 Outdoor
• CSA Certified
• ANSI C82.11 compliant
• ANSI C62.41 transient protection
• FCC Part 18 Class A (non-consumer EMI limits)
• No PCBs
• ISO 9002 certified manufacturing
• Meets state and federal efficiency standards

ADL Supply recommends confirming all applicable compliance data with the Advance official product data sheet prior to specification or installation.

Safety & Installation Notes

• Remove power before installing or servicing.
• Outdoor installation: Must be used in a UL-listed weatherproof enclosure rated for the environment.
• Dimming compatibility: Use only with Mark 10 Powerline or Mark X Powerline compatible phase-cut dimmers. Using incompatible dimmers may cause flicker or damage.
• Starting at dimmed levels: Ballast ignites lamps at any dimming setting without needing to start at full brightness.
• End-of-lamp-life shutdown: Ballast will shut down if a failed lamp is detected. Reset by replacing the lamp and cycling power.
• Short circuit protection: Ballast withstands sustained short to ground or open circuit of any output leads.
• Maximum case temperature: 158°F (70°C).
• Follow fixture manufacturer's instructions and local electrical codes for installation.
