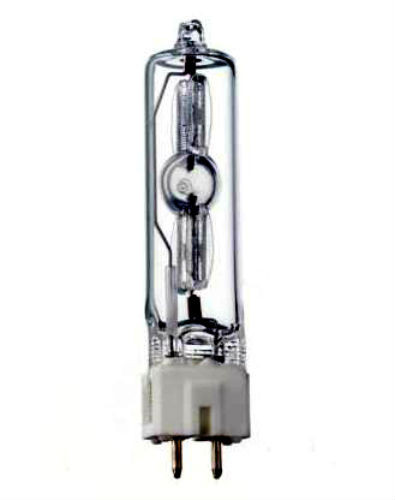

GE 40460 CSR575/SE/HR/UVC Quartz Metal Halide Lamp – 575W 95V G22 Base

The GE CSR575/SE/HR/UVC Quartz Metal Halide Lamp is a high-intensity 575-watt stage, studio, and broadcast lighting lamp designed for professional entertainment, film production, and arena lighting systems.

Part of the GE Quartz Metal Halide (CSR) series, this lamp delivers 48,000 lumens with a crisp 6000K daylight color temperature and CRI 90 for accurate color reproduction in professional lighting environments.

Technical Specifications

• Manufacturer: GE Lighting
• Model: CSR575/SE/HR/UVC
• Product Code: 40460
• SKU: GEDB40460R3
• ANSI Code: UVC
• UPC: 043168404600
• Lamp Type: Quartz Metal Halide (CSR)
• Wattage: 575 Watts
• Voltage: 95V
• Base Type: G22 Prefocus
• Initial Lumens: 48,000 lm
• Color Temperature: 6000K
• CRI: 90
• Maximum Overall Length (MOL): 5.71 in
• Bulb Diameter: 1.18 in
• Fixture Requirement: Enclosed Fixture Only

Key Features

• High-intensity 575W professional metal halide lamp
• Daylight 6000K color temperature for broadcast lighting
• Excellent color rendering (CRI 90)
• Precision G22 prefocus base for accurate optical alignment
• High output 48,000 lumen performance
• Designed for demanding film and stage lighting environments

Typical Applications

• Film and television studio lighting
• Stage and theater lighting fixtures
• Concert and arena lighting
• Professional photography lighting
• Broadcast production lighting

About GE CSR Quartz Metal Halide Lamps

GE CSR metal halide lamps are engineered for high-performance professional lighting systems used in film, broadcast, and entertainment production. These lamps provide exceptional brightness, accurate color rendering, and stable light output for demanding studio environments.

Safety and Installation Notes

• DC Power Required: CSR metal halide lamps require compatible ballast and DC power supply.
• High Pressure Lamp: Always wear protective gloves and face shield during installation.
• Do Not Touch Quartz Envelope: Oils from skin can cause hot spots and shorten lamp life.
• Use Enclosed Fixtures Only: Lamp must be installed in approved enclosed luminaires.
• Allow Cooling Time: Let lamp cool completely before handling.
