Product Overview

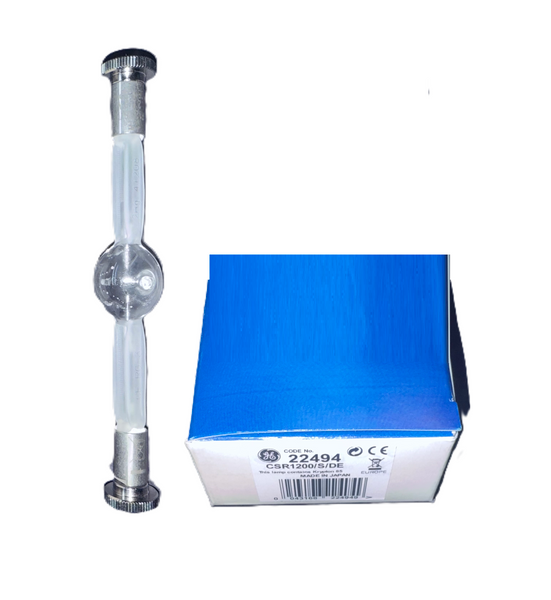

GE CSR1200/S/DE Quartz Metal Halide
1200W 100V Double-Ended SSTV Lamp
Product Code: 22494 | 6000K Daylight
Luminous Flux110,000 Lumens
Color Accuracy90 CRI
Base TypeSFc15.5-6 (Double Ended)
Rated Life750 - 1,000 Hours
Professional Lighting Excellence
The GE 22494 (CSR1200/S/DE) is a high-performance double-ended quartz metal halide lamp featuring a Short Arc (S) design. This daylight-balanced (6000K) lamp is engineered for the demanding SSTV (Stage, Studio, and Theatre) industry, delivering high-intensity light for film broadcast, moving head fixtures, and stadium-level entertainment events.
Technical Details
| Wattage / Voltage | 1200W / 100V |
|---|---|
| Luminous Efficacy | 91 Lm/W |
| Bulb Finish | Clear Quartz |
| MOL (Length) | 220 mm (8.66 in) |
| Burn Position | Universal / Horizontal ±15° |
Industry Applications
- Professional Film & Broadcast Lighting
- Concert Tours & Moving Head Intelligent Fixtures
- Theatre & Specialized Stage Effects
- High-Intensity Outdoor Projection
⚠️ Critical Handling & Safety
- High Internal Pressure: Operates at high pressure and extreme heat. Wear a face shield and protective gloves when installing or removing.
- Skin Oils Warning: Never touch the quartz glass with bare hands. Fingerprints create "hot spots" that lead to premature failure or rupture. Use a clean cloth.
- Enclosed Fixtures Only: Must be used in a shielded luminaire capable of containing hot fragments and providing UV filtration.
- Cool Down: If power is interrupted, allow the lamp to cool for at least 15 minutes before attempting to restrike.
Genuine GE Entertainment Series | Engineered for Professional Broadcast Environments
