Sylvania 54603 HPL 750/230 UCF

Product Overview

Sylvania 54603 HPL 750/230 UCF – 750W 230V T6 Halogen Stage & Studio Lamp | 3200K | 19,750 Lumens | CRI 100

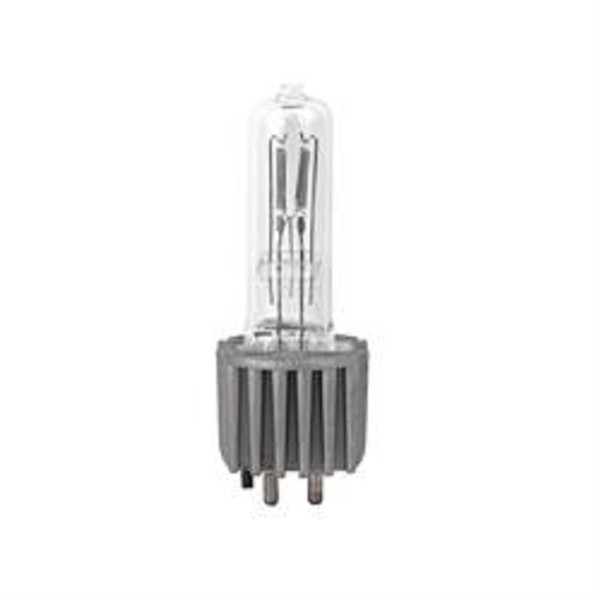

The Sylvania 54603 HPL 750/230 (UCF) is a 750-watt, 230-volt tungsten-halogen lamp from the Sylvania HPL series. It is designed for compatible stage and studio lighting equipment and produces 19,750 lumens at a nominal 3200K color temperature with a CRI of 100. The clear T6 lamp uses a medium bi-pin base with an integrated heat sink, has a 6-C8 filament, and may be operated in any position. Before ordering, verify the exact product number, order abbreviation, voltage, wattage, base configuration, lamp dimensions, light-center length, and fixture compatibility.

Wattage

750W

Tungsten Halogen

Voltage

230V

Color

3200K

CRI 100

Light Output

19,750 lm

Nominal

Rated Life

300 hrs

Average

Technical Specifications

Brand	Sylvania
Product Number	54603
Order Abbreviation	HPL 750/230 (UCF)
Packaging Abbreviation	HPL750230 (UCF) 230V 12/CS 1/SKU
Product Family	HPL
Application	Stage and studio lighting
Lamp Technology	Tungsten halogen
Bulb Shape	T6
Lamp Finish	Clear
Lamp Class	C (gas)
Base	Medium bi-pin with heat sink
Filament	6-C8
Nominal Wattage	750W
Nominal Voltage	230V
Current Type	AC
Color Temperature	3200K
Color Rendering Index	100
Luminous Flux	19,750 lumens
Average Rated Life	300 hours
Operating Position	Any / universal
Maximum Overall Length	104 mm / 4.1 in
Diameter	19 mm / 0.748 in
Light Center Length	60.3 mm / 2.352 in
Distance A	60.3 mm / 2.352 in
Quantity per SKU	1 lamp
Case Quantity	12 lamps

Key Features & Benefits

Professional 750-watt tungsten-halogen lamp for compatible stage and studio fixtures.
230V operating voltage for equipment designed around the HPL 750/230 specification.
Produces 19,750 lumens with a 3200K tungsten-balanced color appearance.
CRI 100 for accurate color reproduction in professional lighting environments.
Medium bi-pin base with integrated heat sink.
Compact clear T6 envelope measuring 19 mm in diameter.
Universal operating position.
6-C8 filament configuration for compatible optical systems.
Manufactured under license from ETC, Inc., according to the Sylvania specification sheet.

Product Overview

The Sylvania 54603 HPL 750/230 (UCF) is a high-performance tungsten-halogen lamp developed for professional stage and studio lighting. Its 3200K color temperature provides the traditional tungsten-balanced output commonly used in theatrical, television, film, studio, and live-production environments.

The lamp produces 19,750 lumens from a 750-watt, 230-volt electrical system. Its CRI of 100 supports accurate color reproduction, while the clear T6 envelope and precisely positioned 6-C8 filament are designed for compatible optical fixtures.

This lamp should be selected by exact product number and electrical specification. Similar-looking HPL lamps may use different voltages, wattages, bases, filament geometries, dimensions, or light-center lengths and are not automatically interchangeable.

Compatible Applications

Stage fixtures designed for Sylvania HPL 750/230 lamps
Studio and television lighting equipment
Film-production tungsten lighting
Theatrical luminaires operating at 230V
Live-event and entertainment lighting
Maintenance replacement where Sylvania product number 54603 is specified

Before Ordering – Verify

Product number: Confirm Sylvania product number 54603.
Order abbreviation: Verify HPL 750/230 (UCF).
Voltage: This lamp is rated for 230V. Do not substitute a 120V or other-voltage HPL lamp.
Wattage: Confirm the fixture, socket, wiring, and dimming equipment are rated for a 750W load.
Base: Verify the fixture requires a medium bi-pin base with heat sink. The supplied datasheet does not identify the base by a G9.5 designation.
Filament: Confirm the optical system requires a 6-C8 filament.
Dimensions: Verify a 104 mm maximum overall length and 19 mm bulb diameter.
Light center length: Confirm the fixture requires a 60.3 mm light-center length.
Operating position: Sylvania identifies the lamp for any operating position, but fixture instructions must still be followed.
Color temperature: Confirm the application requires 3200K tungsten-balanced light.
Packaging: The Sylvania sheet identifies one lamp per SKU and 12 lamps per case.
ANSI code: No ANSI code is published in the supplied manufacturer sheet. Use product number 54603 and order abbreviation HPL 750/230 (UCF) as the primary identifiers.

Safety and Installation Guidelines

Disconnect and lock out electrical power before inspecting, installing, or removing the lamp.
Allow the lamp and fixture to cool completely before handling.
Use only in fixtures designed for a 750W, 230V HPL tungsten-halogen lamp.
Do not exceed the fixture, socket, wiring, or dimmer ratings.
Do not touch the quartz envelope with bare hands; use clean gloves or a lint-free cloth.
If the quartz is touched, clean it according to the fixture or lamp manufacturer’s instructions before operation.
Do not use a lamp that is cracked, chipped, scratched, or otherwise damaged.
Secure the lamp fully in the compatible bi-pin socket and heat-sink assembly.
Keep combustible materials away from the lamp and fixture.
Maintain proper fixture ventilation.
Installation and servicing should be performed by trained personnel familiar with high-temperature stage and studio lamps.

Compliance & Environmental Information

Tungsten-halogen lamp; no mercury content is indicated in the supplied Sylvania specification sheet.
High-performance HPL lamps are manufactured under license from ETC, Inc.
No RoHS, Prop 65, UL, ETL, DLC, ENERGY STAR, Title 20, Title 24, or JA8 claim is identified in the supplied manufacturer sheet.
Dispose of the lamp according to applicable local glass and specialty-lamp waste requirements.
